For the Duval, Rogers, Dörnenburg and IEC60599 analyses, the values
measured by the sensor have to exceed the following detection limits. If the
measured values are less than the detection limit, the device will use the de-
tection limit value for the calculation.
Gas Detection limit
H
2
50ppm
CH
4
10ppm
C
2
H
2
10ppm
C
2
H
4
10ppm
C
2
H
6
10ppm
Table87: Detection limits
9.27.2.1 Absolute values
You can display the current absolute measured values of the sensors. Fur-
thermore, a bar chart shows a graphical representation of the measured
value and the set limit values (yellow, red).

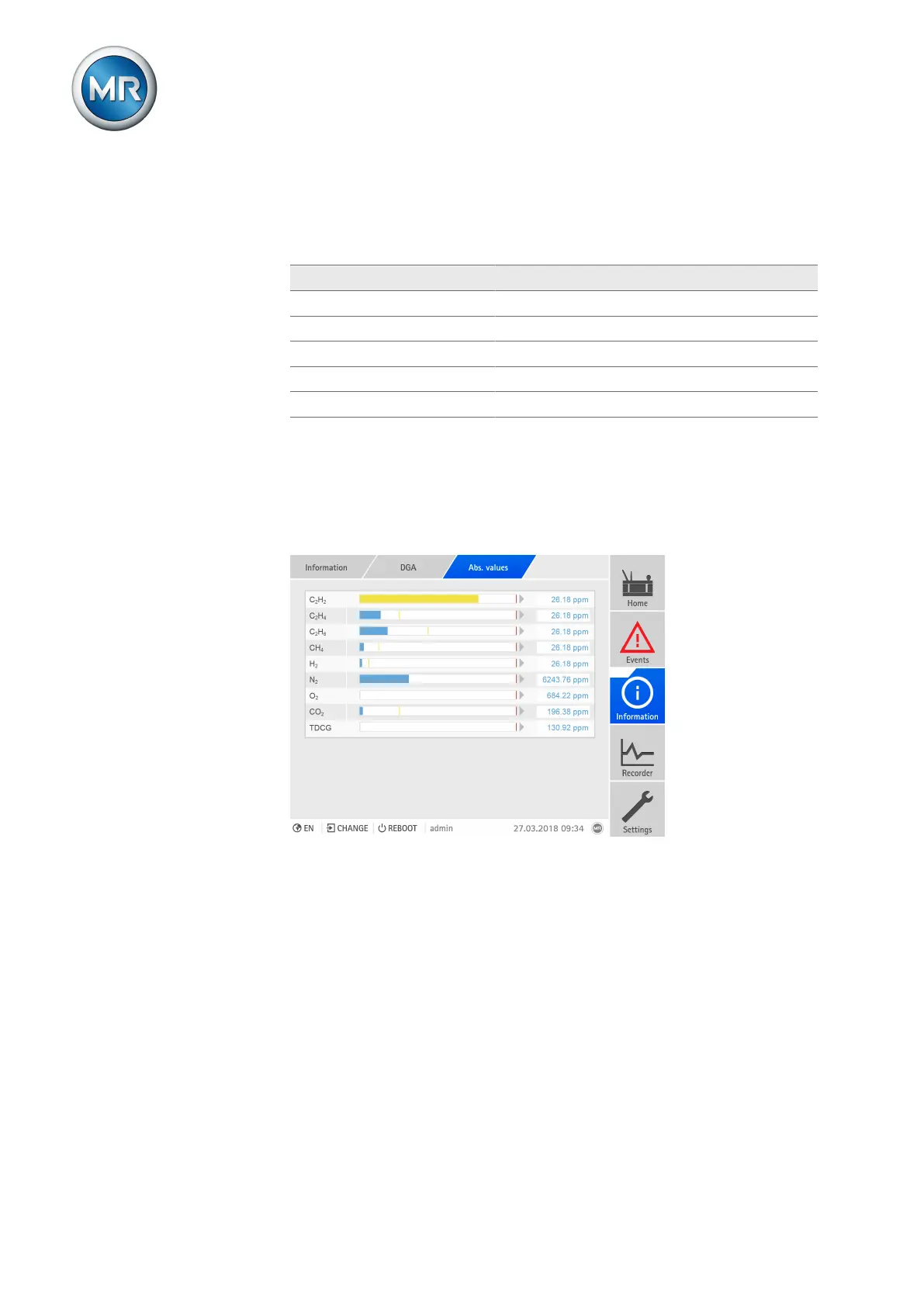

Figure202: Display of absolute values
► Go to Information > Active part > DGA > Absolute values.
