9 Visualization
Maschinenfabrik Reinhausen GmbH 2020 2816385142/08 EN ETOS
®
ED
If you call up the visualization using a PC, the proportions of the gas concen-
trations and the time of the measurement are displayed for each measured
value via tooltip. Furthermore, you can rotate the diagram using the mouse.

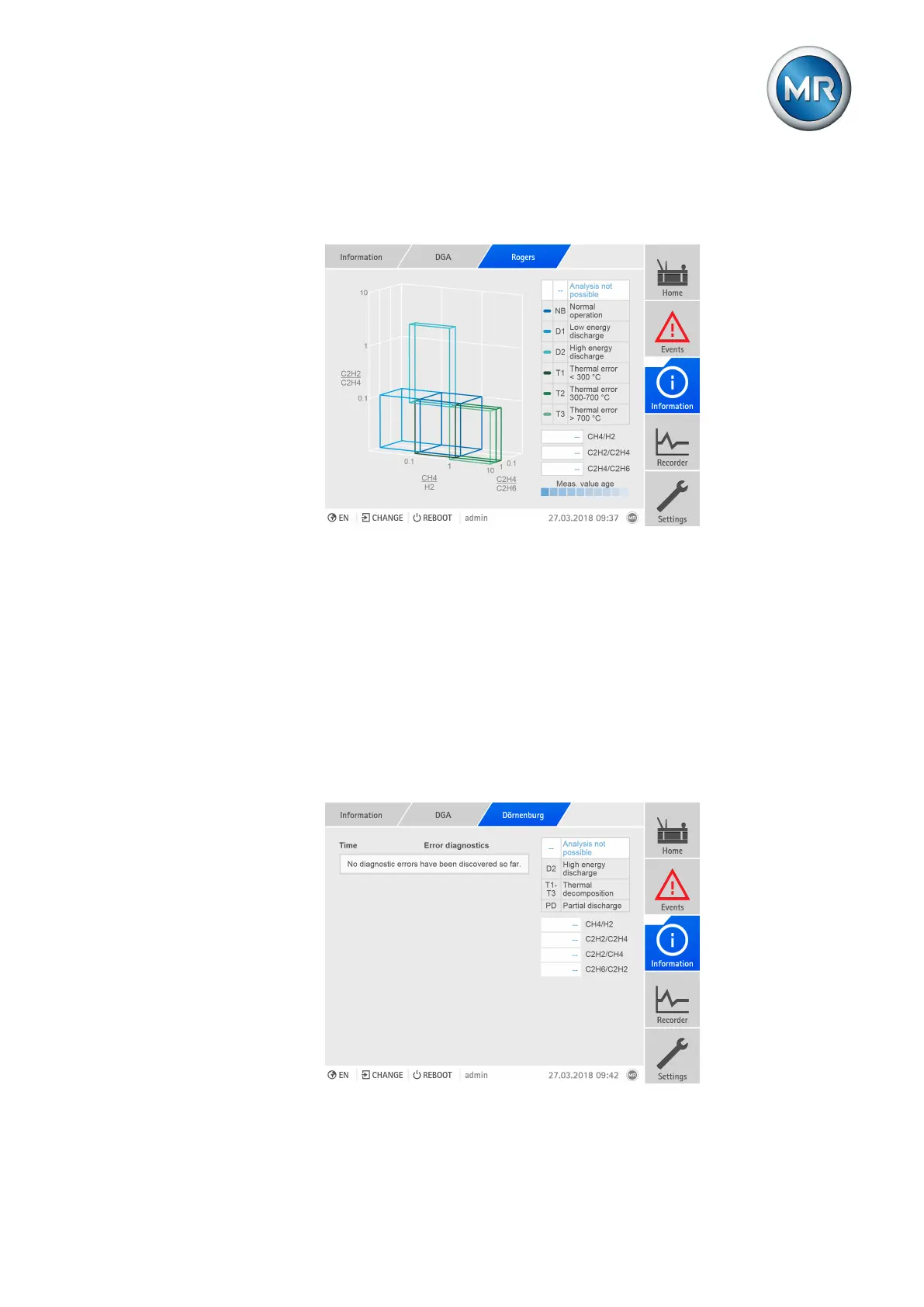

Figure206: Display of the Rogers analysis
► Go to Information > Active part > DGA > Rogers.
9.27.2.6 Dörnenburg analysis
The display of the Dörnenburg analysis shows the following information:
▪ Tabular display of the latest 10 errors
▪ Display of the error types. The error type of the latest measured value is
highlighted in white.
▪ Proportion of the gas concentrations of the latest measured value
If you call up the visualization using a PC, the proportions of the gas concen-
trations are displayed for each measured value via tooltip.
Figure207: Display of the Dörnenburg analysis
