4 Product description
Maschinenfabrik Reinhausen GmbH 202038 6385142/08 ENETOS
®
ED
Warning of a danger point. Read the information given in the product oper-
ating instructions.
Warning of dangerous electrical voltage.
This assembly is protected via double insulation or reinforced insulation.
Table9: Safety-relevant symbols on the assembly
4.5.7.5 Digital inputs and outputs
The assemblies DIO28-15 and DIO42-20(HL) provide you with a number
of digital inputs and outputs that differs based on the version:
▪ DIO28-15: 28 inputs, 15 outputs (6 N/O contacts, 9 change-over con-
tacts)
▪ DIO42-20 (HL): 42 inputs, 20 outputs (8 N/O contacts, 12 change-over
contacts)

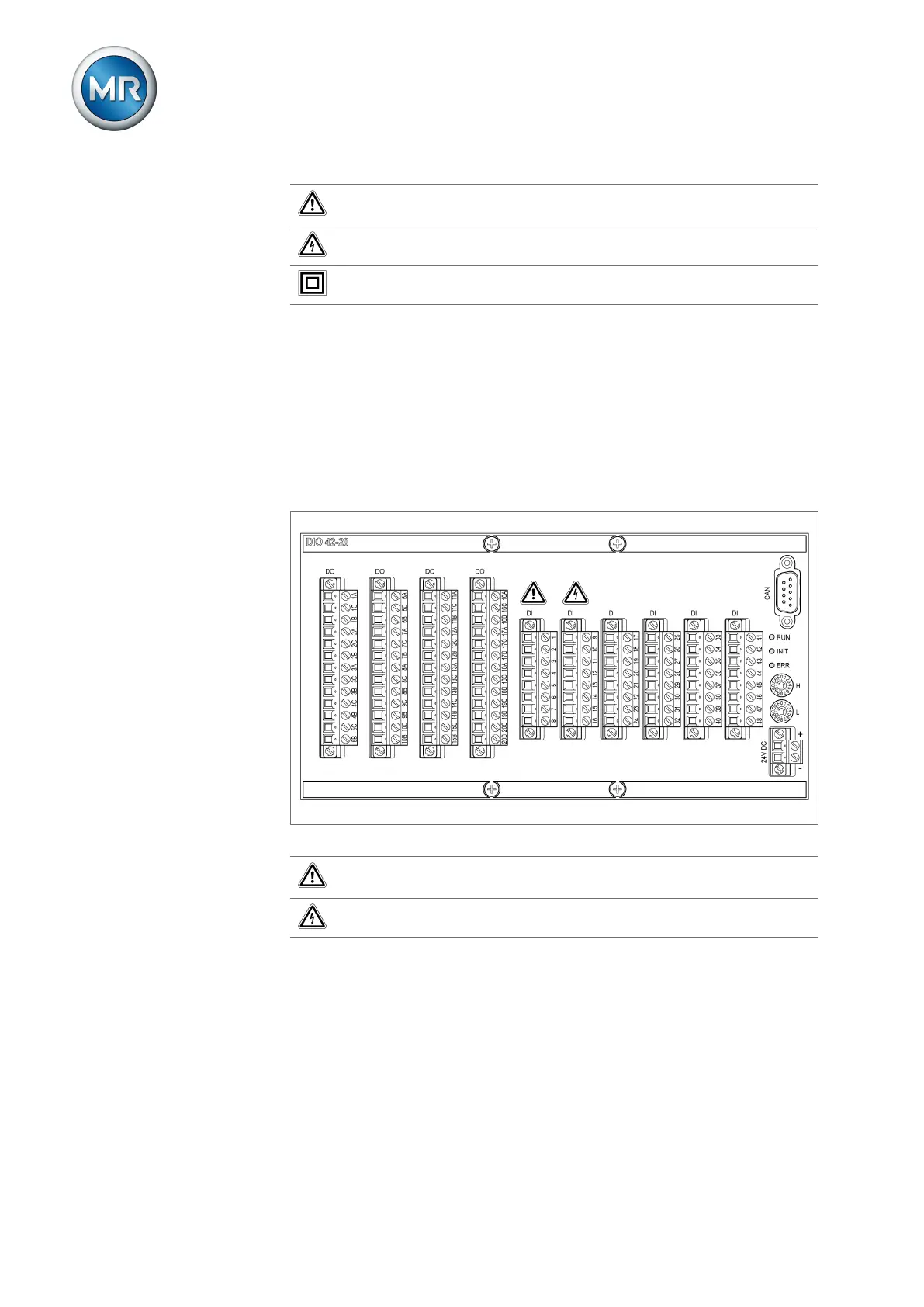

Figure16: DIO 42-20 assembly
Warning of a danger point. Read the information given in the product oper-
ating instructions.
Warning of dangerous electrical voltage.
Table10: Safety-relevant symbols on the assembly
4.5.7.6 Analog inputs and outputs
The AIO 2 and AIO 4 assemblies provide analog inputs and outputs:
▪ AIO 2: 2 channels
▪ AIO 4: 4 channels
