4 Product description
Maschinenfabrik Reinhausen GmbH 2020 396385142/08 EN ETOS
®
ED
In accordance with the device configuration, the AIO assembly supports one
of the following signal types:
Input Output
Voltage Current Voltage Current
0...10 V 0...20 mA
4...20 mA
0...10 V 0...20 mA
4...20 mA
Resistance measurement (such as PT100, resistor contact series)
Table11: Signal types supported by the AIO assembly

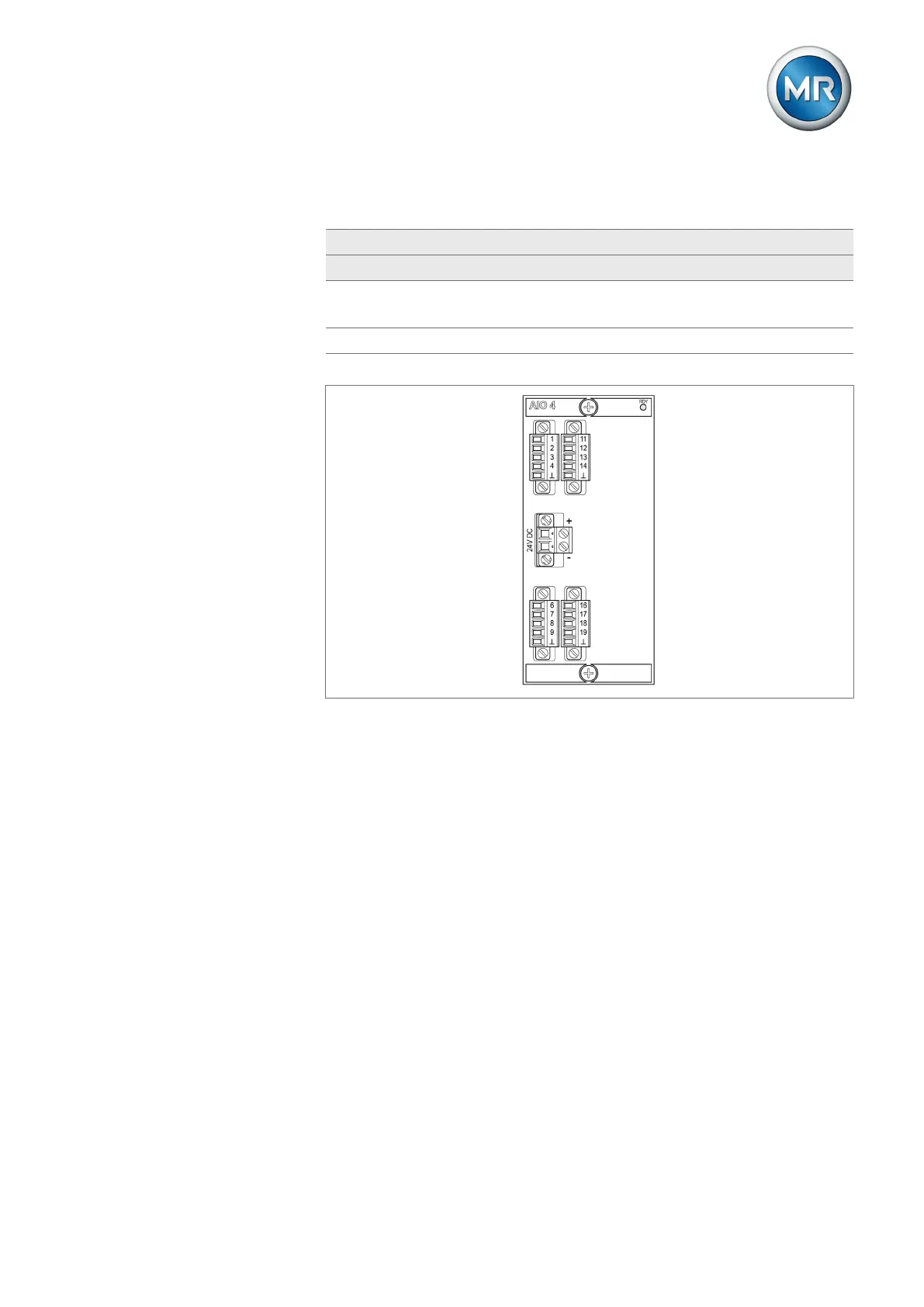

Figure17: AIO 4 assembly
4.5.7.7 Analog inputs and outputs (AIO8)
The AIO 8 assembly provides 8 channels for analog inputs. In accordance
with the device configuration, the AIO assembly supports one of the follow-
ing signal types:
▪ Voltage: 0...10V
▪ Current: 0/4...20mA (only channels 1, 2, 7 and 8)
▪ Resistance measurement (e.g. PT100)
