If the device does not have one of the optional functions, this will be indi-
cated in the main screen via a small padlock .
Depending on the device configuration, the main screen displays the
schematic representation of a transformer for network applications or a
transformer for industrial applications.
4.10.1.1 Transformer for network applications

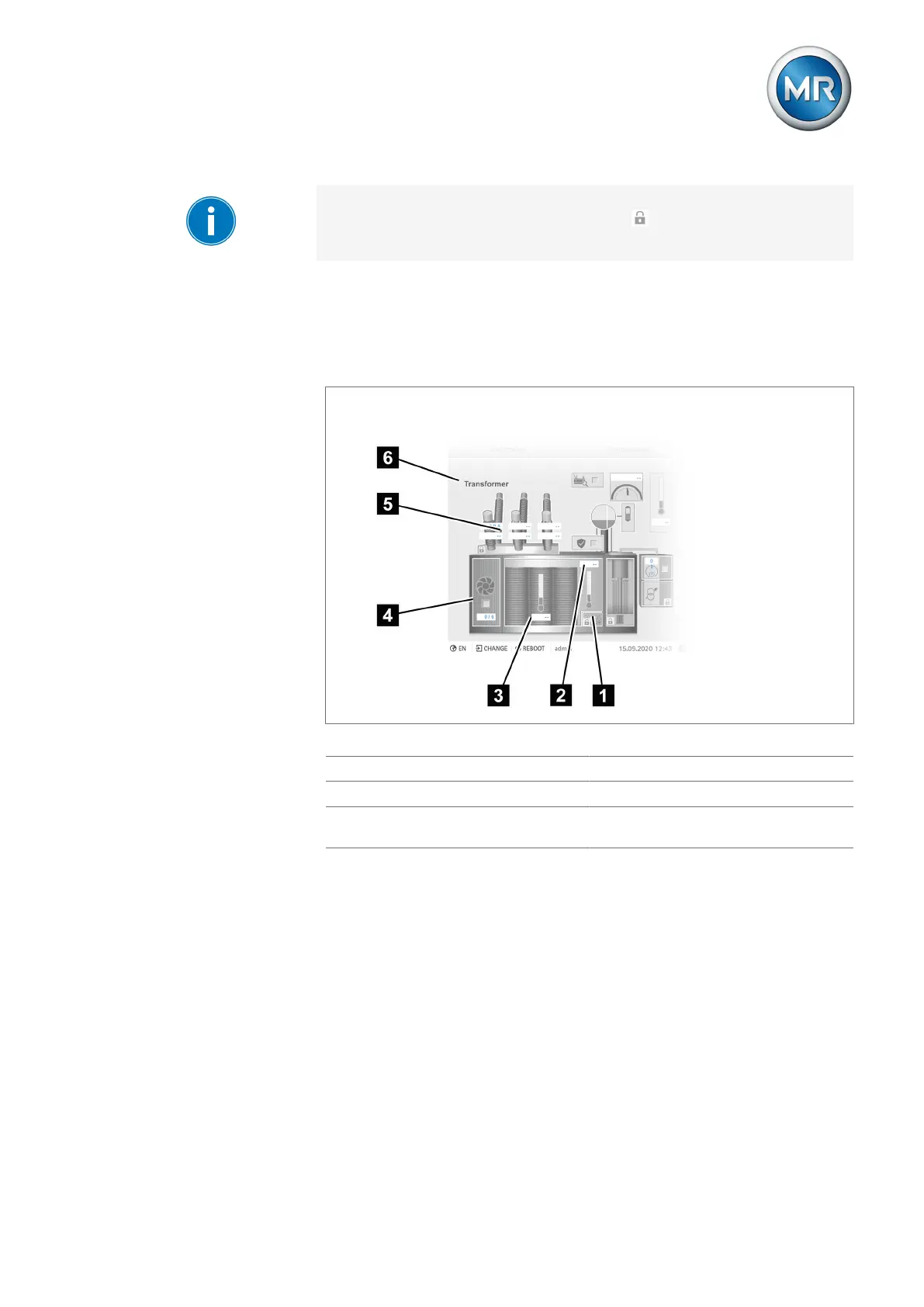

Figure25: Transformer data
1 DGA (status) 2 Top-oil temperature
3 Hot-spot temperature 4 Cooling system (status)
5 Load current and load voltage of
phases L1, L2, L3
6 Transformer name
