4.10.1.2 Transformer for industrial applications

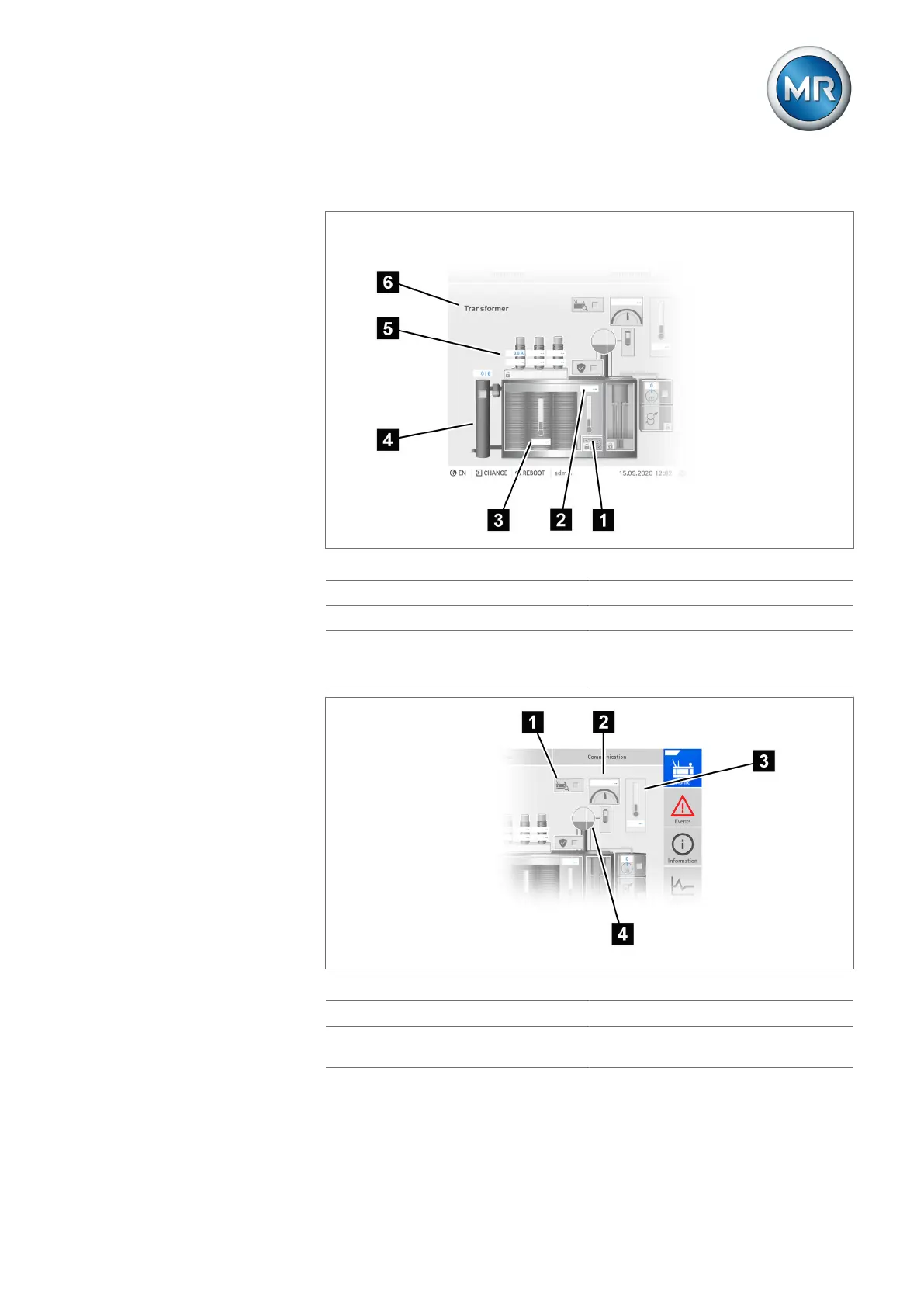

Figure28: Transformer data
1 DGA (status) 2 Top-oil temperature
3 Hot-spot temperature 4 Cooling system (status)
5 Load current an load voltage of the
phases L1, L2, L3 (high-voltage
side)
6 Transformer name
Figure29: Apparent power, oil level, and ambient temperature
1 Asset intelligence 2 Total apparent power
3 Ambient temperature 4 Oil level (transformer on left, on-
load tap-changer on right)
