7 Functions and settings
Maschinenfabrik Reinhausen 2014 1213550953/00 EN TAPCON® 230 pro

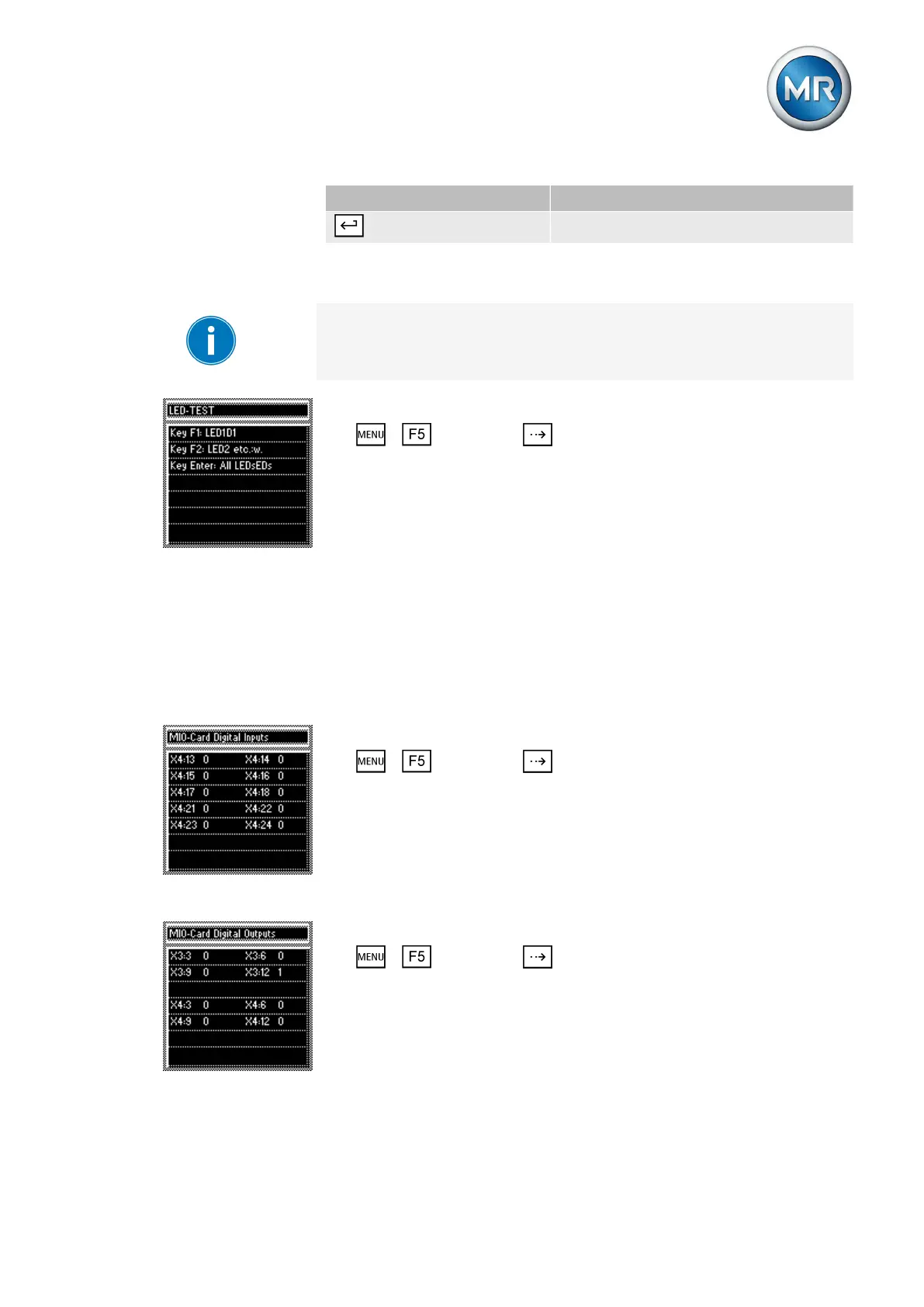

Key LED no.
All LEDs
Table 34: Arrangement of keys for the LED test
This function will only test the functional reliability of the respective LED.
The function of the device linked to the LED is not tested.
To carry out the LED test, proceed as follows:
1. > Info > Press until the desired display appears.
ð LED test.
2. To carry out the function test, press the function key for the LED you
want to test.
Displaying status of the MIO card
The status of the digital inputs and outputs are shown in this display.
Digital inputs
The status of the optocoupler inputs is shown in the "MIO card digital inputs"
display. As soon as a continuous signal is present at the input, status 1 is
displayed. 0 indicates no signal at the input.
Proceed as follows to display the status:
► > Info > Press until the desired display appears.
ð MIO card digital inputs
Digital outputs
The status of the relays is shown in the "MIO card digital outputs" display As
soon as a relay has activated, status 1 is displayed. If status 0 is displayed,
the relay has not activated.
Proceed as follows to display the status:
► > Info > Press until the desired display appears.
ð MIO card digital outputs
7.13.5
