3 Product description
Maschinenfabrik Reinhausen 201416 3550953/00 ENTAPCON® 230 pro
TAPCON® 230
Automatic voltage regulator
Regulation section
Regulating transformer
Summer Winter
Load profile of grid
Control variable for
line voltage
Measurement
transformer
Inputs
digital and analog
Automatic voltage regulator
TAPCON® 230
for example for parallel operation of up to 16 transformers
Station control system
Remote communication and control room

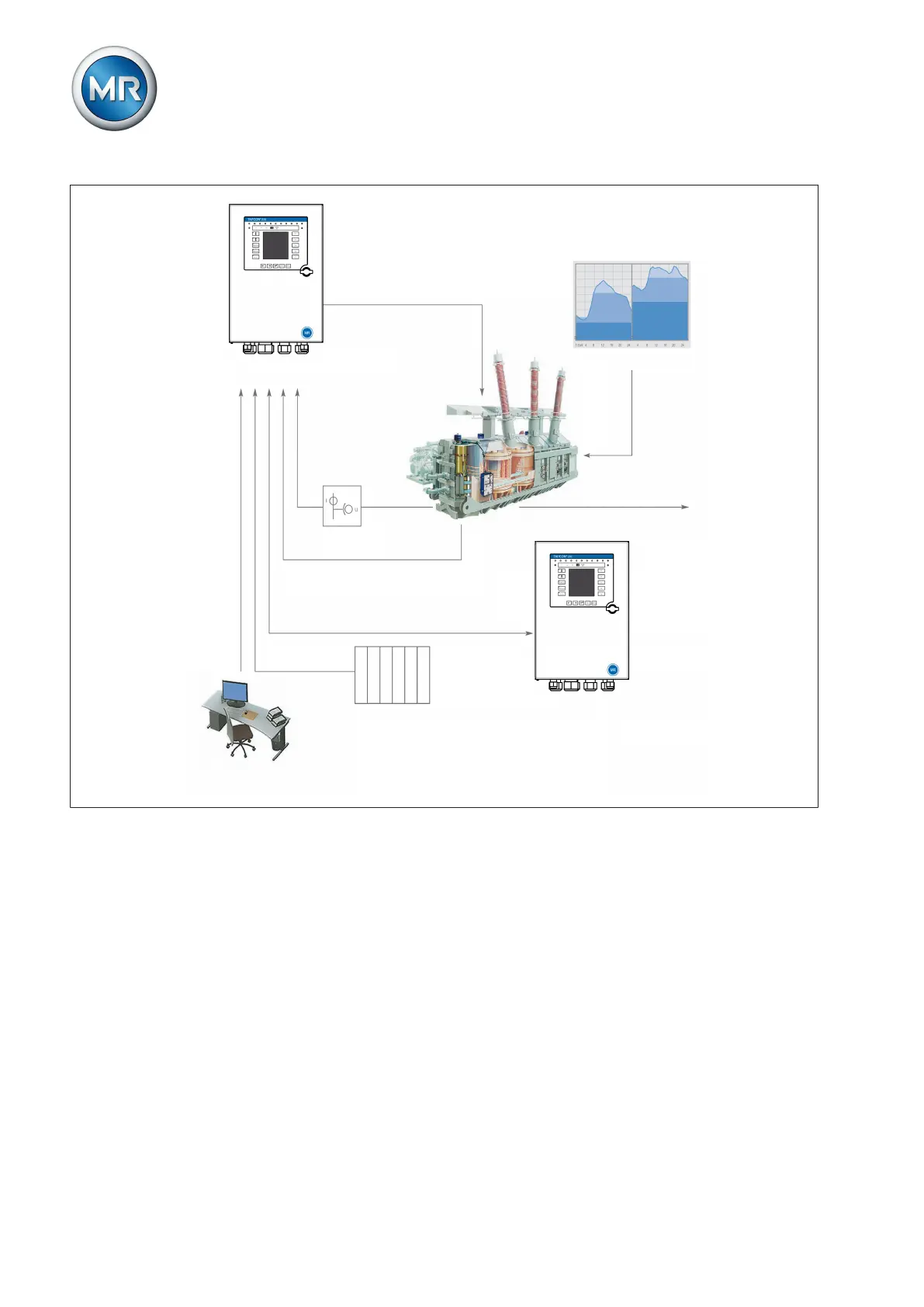

Figure 5: Overview of voltage regulation
Performance features
The TAPCON® is responsible for controlling tapped transformers.
Apart from control tasks, the TAPCON® provides additional functions such
as:
▪ Integrated protective functions:
– Undervoltage blocking and overvoltage blocking
– Overvoltage detection with high-speed return
▪ Compensation for voltage drops on the line (line drop compensation)
▪ Compensation for voltage fluctuations in the meshed grid (Z compensa-
tion)
3.3
