12 Technical data
Maschinenfabrik Reinhausen 2014 1413550953/00 EN TAPCON® 230 pro

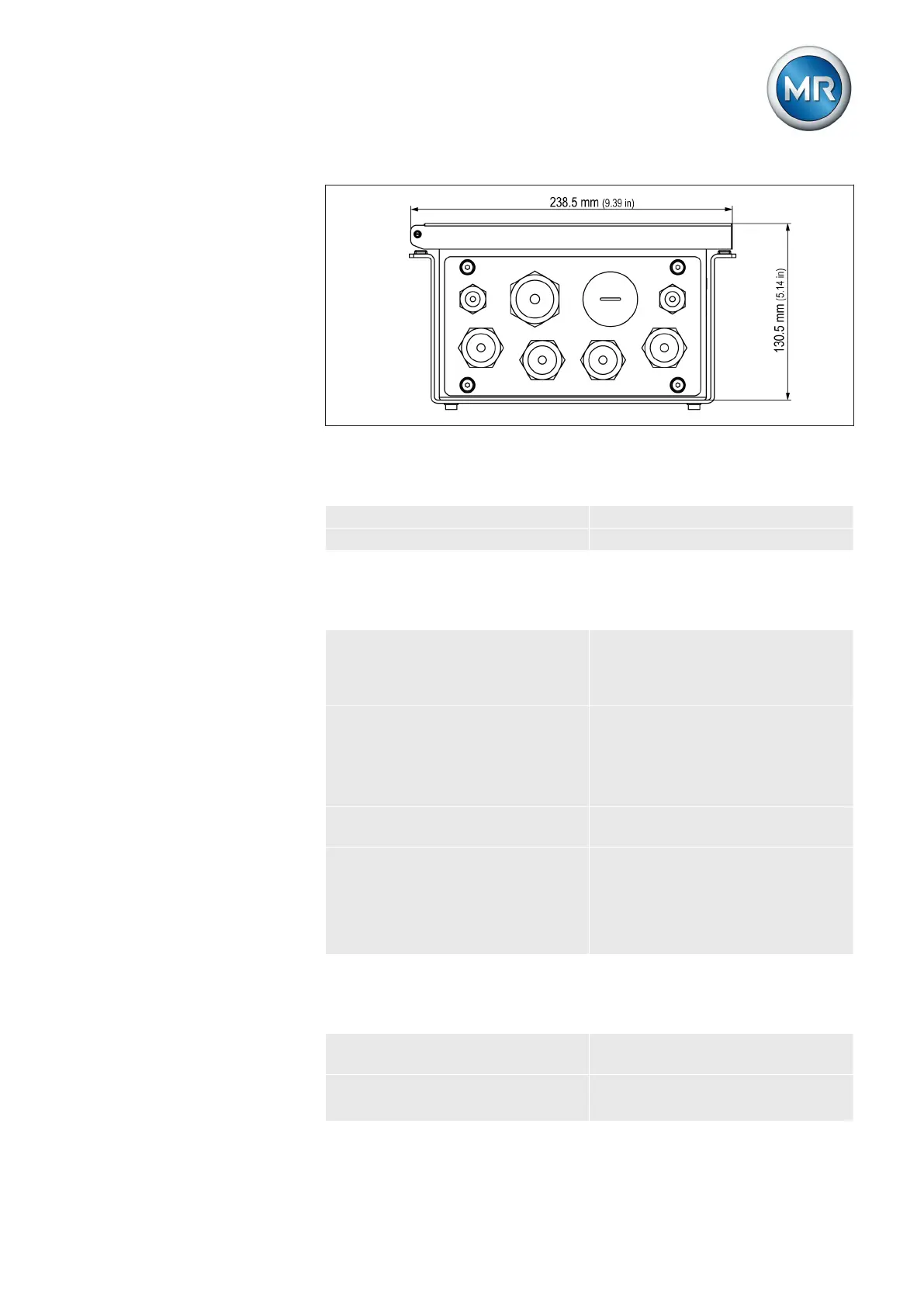

Figure 74: View from below without door
Ambient conditions
Operating temperature -25°C...+70°C
Storage temperature -40°C...+85°C
Table 49: Ambient conditions
Electrical safety
EN 61010-1 Safety requirements for electrical
measurement and control and reg-
ulation equipment and laboratory
instruments
IEC 61131-2 Dielectric test with operating fre-
quency
350 V AC...5870 V AC (depending
on the operating voltage of the
power circuit)
IEC 60255 Dielectric test with impulse voltage
5 kV, 1.2/50 μs
VDE 0435
Short-time current and long-term
load capacity of current transformer
inputs
▪ 100 x l
n
/1 s
▪ 2 x I
n
/ continuous
Table 50: Electrical safety
Electromagnetic compatibility
IEC 61000-4-2 Electrostatic discharges (ESD)
8 kV/15 kV
IEC 61000-4-3 Electromagnetic fields (HF) 20 V/m
80...3000 MHz
12.4
12.5
12.6
