3 Product description
Maschinenfabrik Reinhausen 201424 3550953/00 ENTAPCON® 230 pro
Unit Measured value
Cos Active factor: Cosine φ [phi] (output factor)
Table 5: Measured value display
Current messages and events are displayed in the status line . You can
find more information about messages and events in the Messages chapter.
Serial interface
The parameters for the device can be set using a PC. The COM 1 (RS232)
serial interface on the front panel is provided for this purpose. You can use
the connection cable supplied to establish a connection to your PC via the
RS232 or USB port (using the optional USB adapter).
TAPCON®-trol software is needed for parameterization via the serial inter-
face. The software and the related operating instructions are contained on
the CD provided.

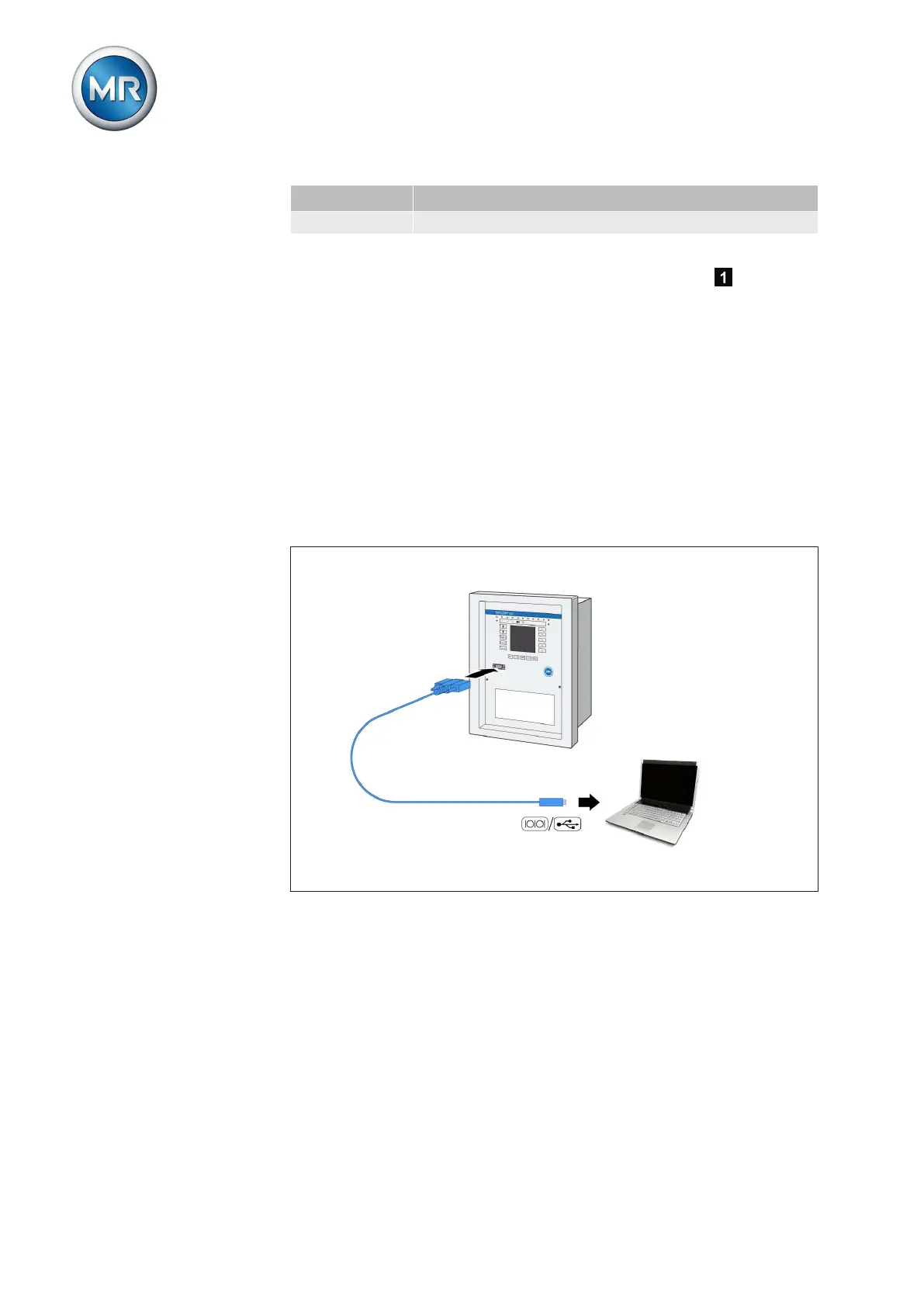

Figure 11: Device connection to a PC
Modules
The device has integrated modules:
▪ MIO card
▪ PIO card
Carry out wiring in accordance with the supplied connection diagram. The
relevant cards are described in the following sections.
Status line
3.5.4
3.5.5
