3 Product description
Maschinenfabrik Reinhausen 201420 3550953/00 ENTAPCON® 230 pro
Name plate

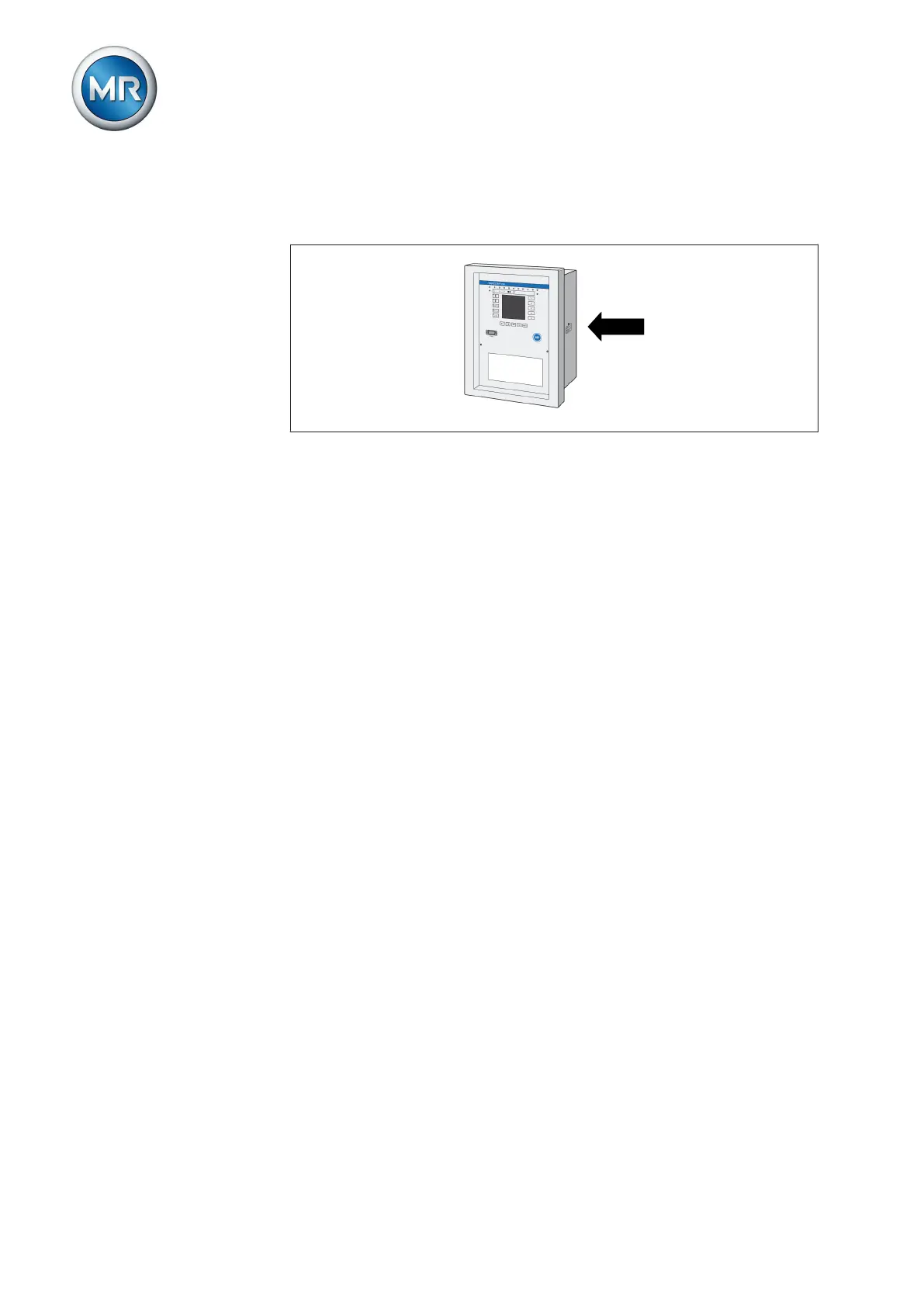

The name plate is on the outside of the device:
Figure 7: Name plate
Operating controls
The device has 15 pushbuttons. The illustration below is an overview of all
the device's operating controls .
3.5.1
3.5.2
