5 Mounting
Maschinenfabrik Reinhausen 201436 3550953/00 ENTAPCON® 230 pro

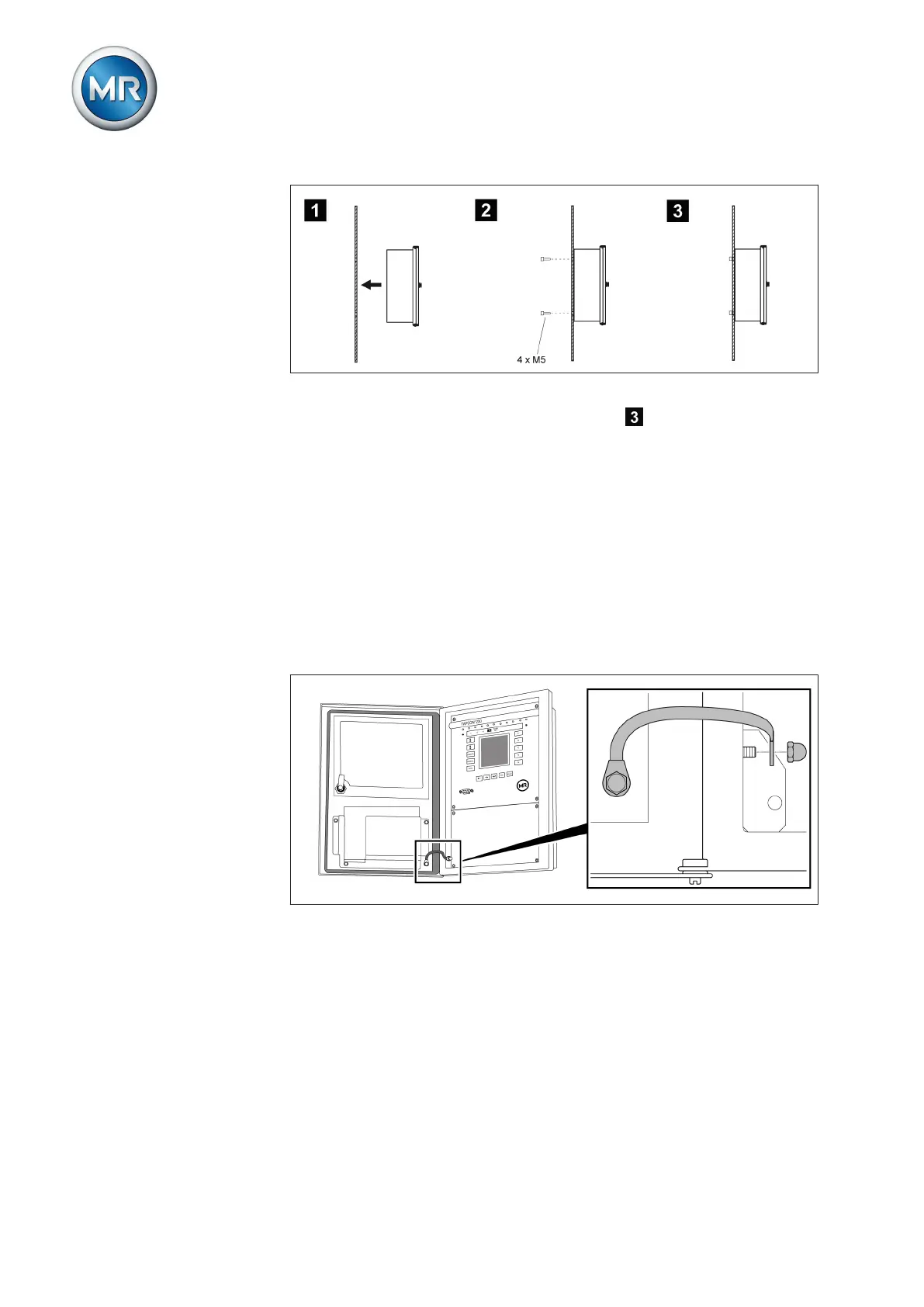

Figure 22: Wall mounting
ð The device is mounted and can be wired up .
Proceed with wiring as shown in the connection diagram and as described in
the Connecting device section.
Removing the door
When the door is fitted, the device satisfies protection category IP54. The
door may be removed if the device is used solely in a dry atmosphere pro-
tected from environmental influences. The device then satisfies protection
category IP21.
Proceed as follows to remove the door:
1. Loosen the grounding strap on the door using an open-end wrench.
Figure 23: Remove door
5.2.5
