5 Mounting
Maschinenfabrik Reinhausen 2014 373550953/00 EN TAPCON® 230 pro

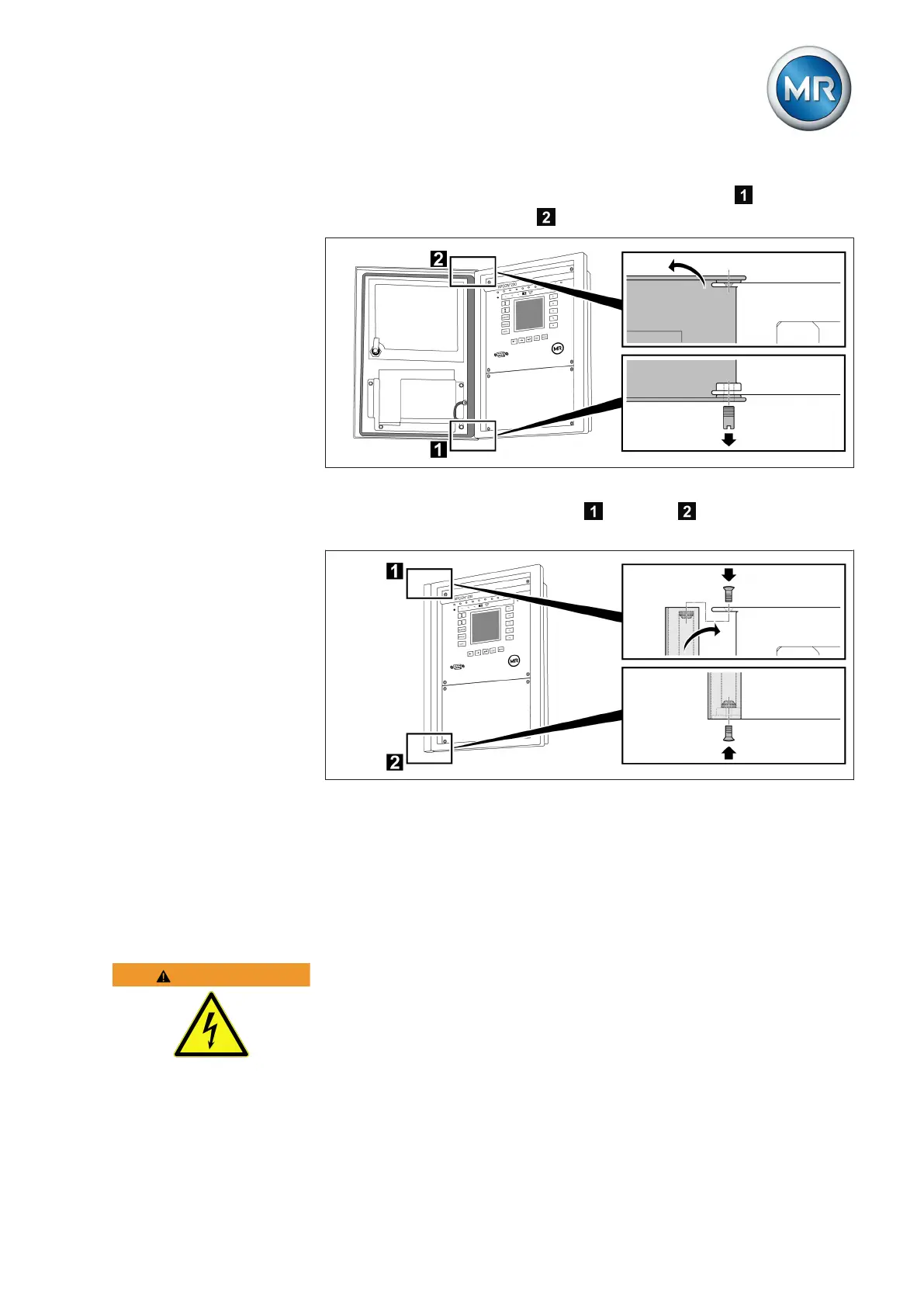

2. Unscrew the fixing bolt using a slotted screwdriver and lift the door
out of the upper mounting .
Figure 24: Lift door from the suspension mount
3. Hook the cover strip in the upper and lower suspension mount
and fasten it with the provided raised countersunk head screws.
Figure 25: Fasten covering strip
ð The door is removed and the exposed attachment points for the door
are covered.
Connecting device
The following section describes how to make the electrical connection to the
device.
WARNING
Electric shock
Danger of death due to connection mistakes
► Ground device using the grounding screw on the housing.
► Pay attention to the phase difference of the secondary terminals for the
current transformer and voltage transformer.
► Connect the output relays correctly to the motor-drive unit.
5.3
