7 Functions and settings
Maschinenfabrik Reinhausen 2014110 3550953/00 ENTAPCON® 230 pro
The following options are available for setting the desired voltage level re-
motely:
Analog setting of desired voltage level remotely
▪ Injected current: 0/4...20 mA
▪ Resistor contact series (200...2000 ohms)
Activate/deactivate setting the desired voltage level remotely.
You can use this parameter to activate or deactivate setting the desired volt-
age level remotely.
To activate/deactivate setting the desired voltage level remotely, proceed as
follows:

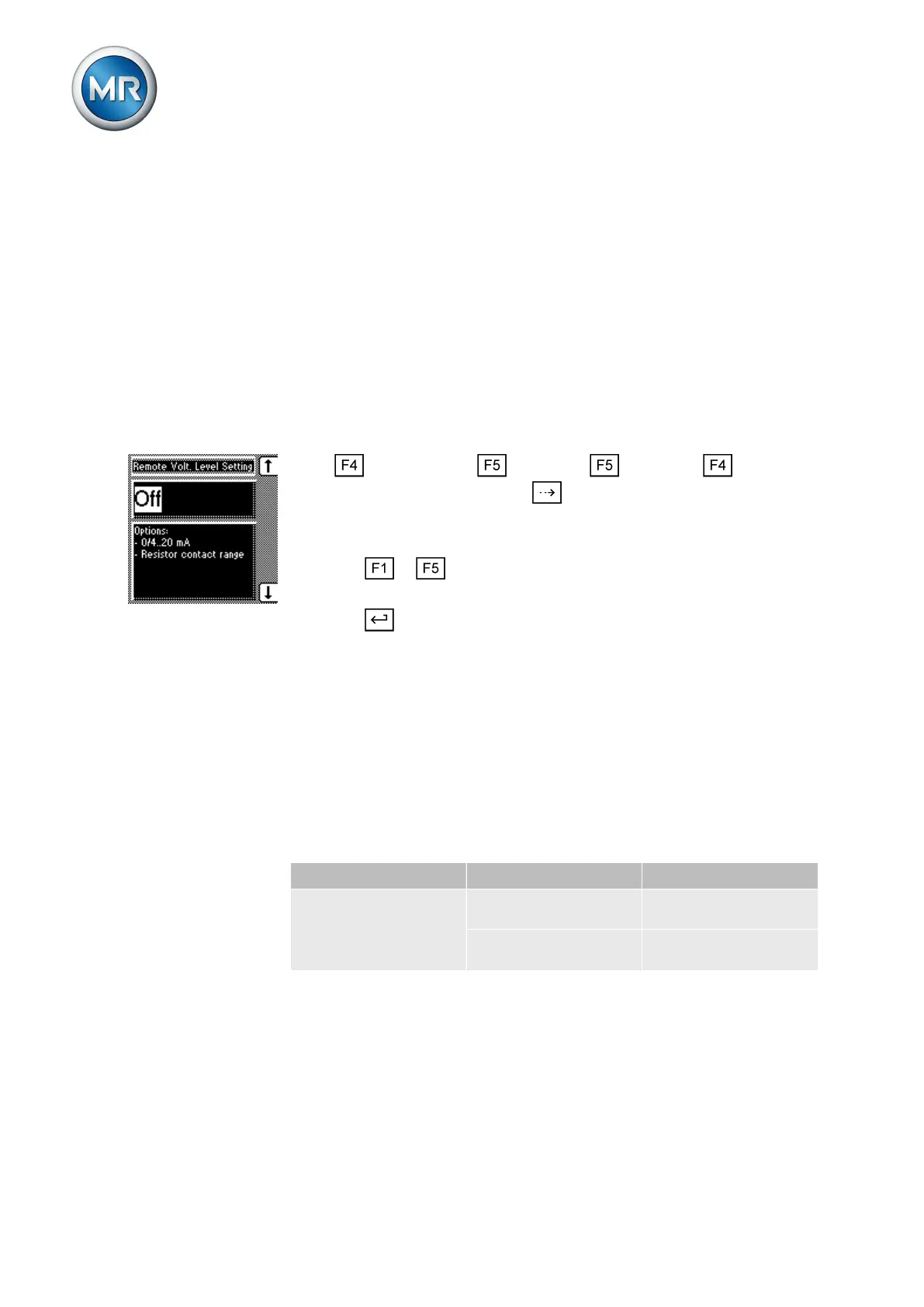

1. > Configuration > Continue > Continue > Set desired
voltage level remotely > Press until the desired parameter is dis-
played.
ð Setting the desired voltage level remotely
2. Press or to activate setting the desired voltage level remotely
(On) or deactivate it by pressing (Off).
3. Press .
ð Setting the desired voltage level remotely is activated/deactivated.
Setting lower limit value for the desired value
To configure the analog input, state the analog value for the minimum de-
sired value.
If you are using a desired value transmitter with a resistor contact series, se-
lect 20%.
If you are using a desired value transmitter with injected current as the trans-
mitter signal, either select 0% (for 0 mA) or 20% (for 4 mA).
Desired value Current Value
Minimum desired val-
ue 90 V
0 mA 0% (of analog input
signal range)
4 mA 20% (of analog input
signal range)
Table 26: Examples of configuration for the analog input (desired value transmitter
with injected current)
To set the analog value for the minimum desired value, proceed as follows:
7.10.1
7.10.2
