3 Product description
Maschinenfabrik Reinhausen 2014 253550953/00 EN TAPCON® 230 pro
MIO card

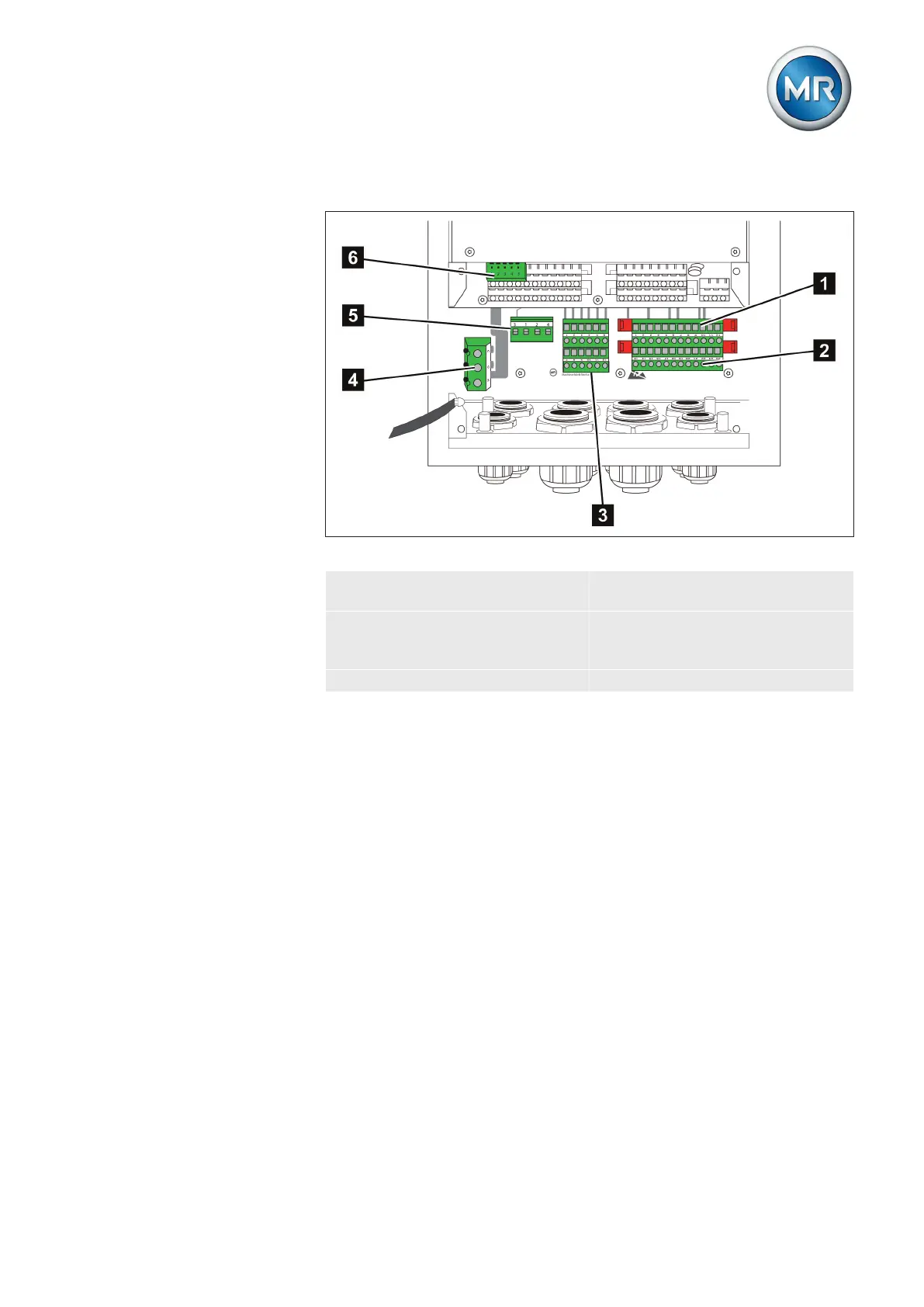

Figure 12: MIO card
1 Relay outputs (terminal X4) 4 Current transformer connec-
tion (terminal X1)
2 Signal inputs (terminal X4) 5 Voltage transformer connec-
tion and network connection
(terminal X2)
3 Relay outputs (terminal X3) 6 CAN bus connection
