Multicam Laser 2000 Series - Restarting after E-Stop

FS
14
Innovation. Quality. Performance. Best in Industry. Worldwide.
Restarting after E-Stop
Operators may press the Emergency Stop (E-Stop) to immediately end any operations on the laser. Located on the
keypad as well as the operator station and the side of the gantry, the E-Stop will power down the laser head, close
the shutter, and remove power from the linear drives. Operators may restart the laser after the E-Stop has been
pressed by following these instructions.

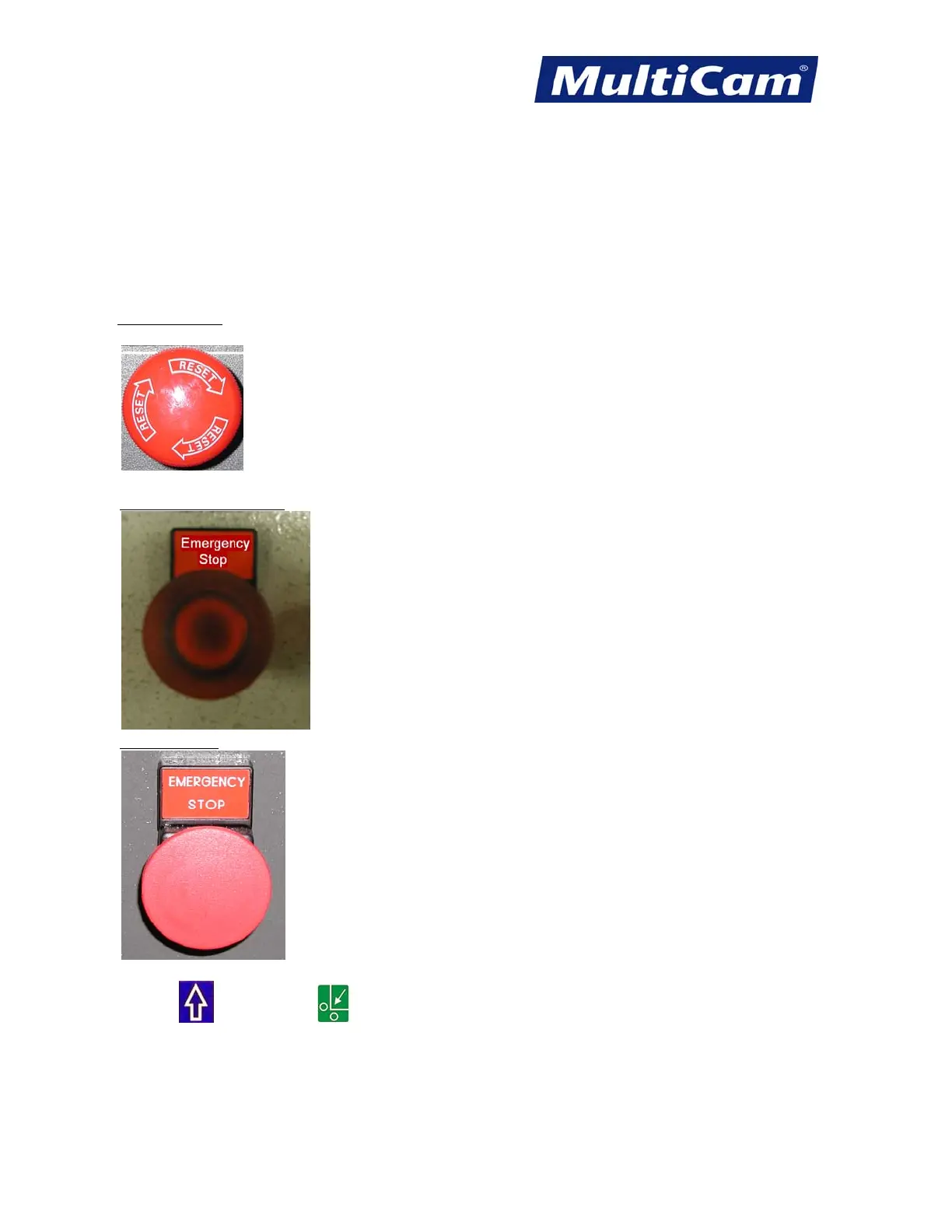

1. Reset the E-Stop.
a. Keypad E-Stop
- Rotate the knob clockwise until it pops up. The arrows on the knob also indicate the correct
direction for resetting the E-Stop.
b. Operator Station E-Stop - Pull the Emergency Stop knob.
c. Gantry E-Stop - Pull the Emergency Stop knob.
2. Press Shift and Go Home to find the Hard Home 0,0 or the Machine Home by indexing the gantry,
carriage, and Z assembly off of the proximity limit switches.
3. Move to the operator station.
