10. Install Ink cartridges in Ink cartridge slots on the back of the printer.
• Each ink cartridge must be installed into an ink cartridge slot specific to it.
Refer to
3.4.1.3 Color mode and slot number and install the ink cartridges so that the ink
colors are properly associated with the slot number indication labels.
• Keep the arrow of Ink cartridge facing up and insert it into the printer.
• Insert Ink cartridges all the way in Ink cartridge slots.
• When an Ink cartridge is installed, “Ink Refill **%” is displayed on Operation panel and ink
replenishment starts.
• Times required for the initial ink charge is as follows.
• Approx fifteen minutes
• Ink filling operation and pause operation are repeated during the initial ink replenishment.
• When “100%” is displayed, the initial ink replenishment is complete.
• After the initial ink replenishment is complete, “Media End” is displayed on Operation panel.

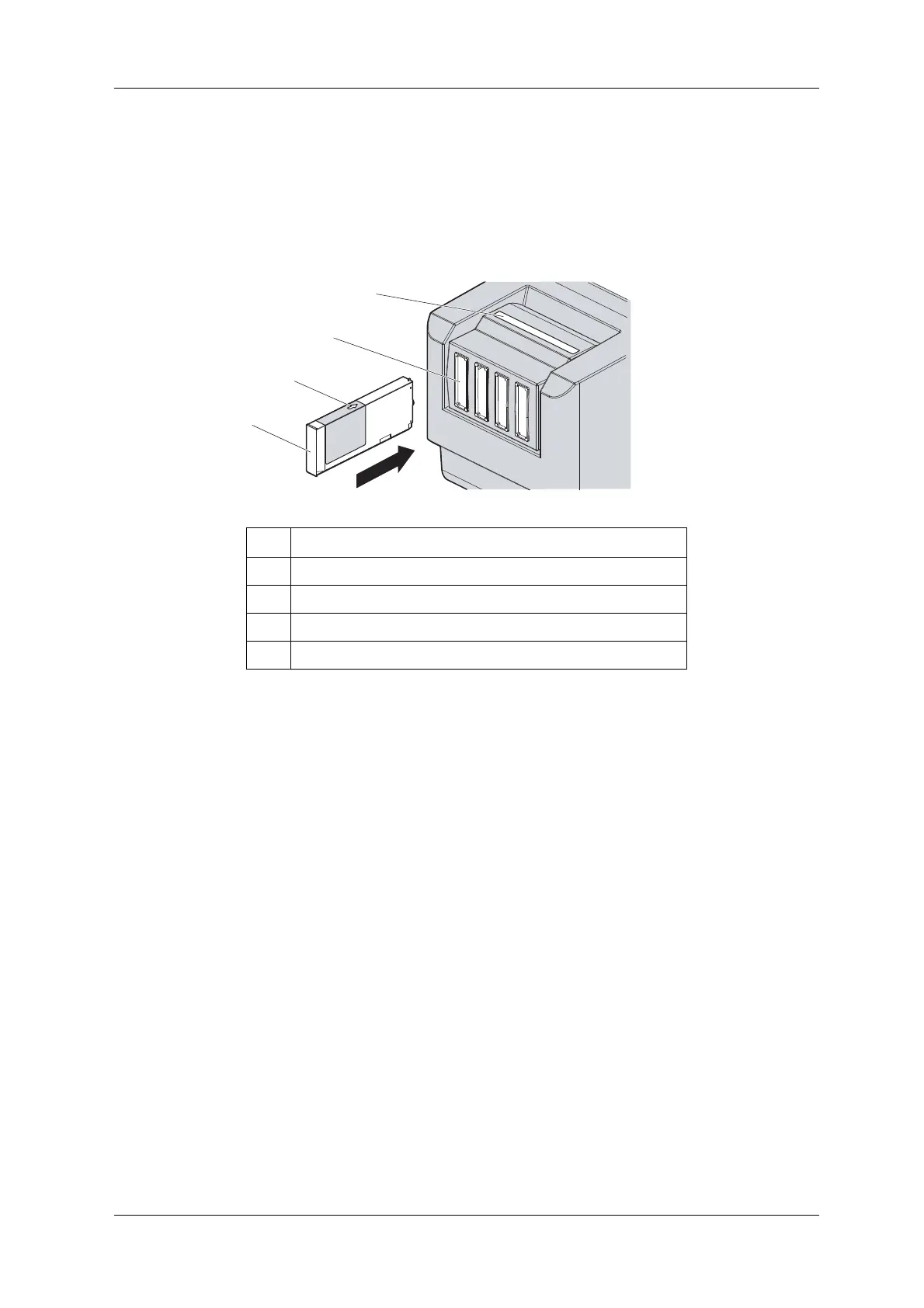

No. Name
1 Ink cartridge
2 Arrow
3 Ink cartridge slots
4 Slot number indication label
