MUTOH ValueJet VJ-1628X - Color Mode and Slot Number

Before using VJ-1628X OPERATION MANUAL
54 3.4 Filling ink

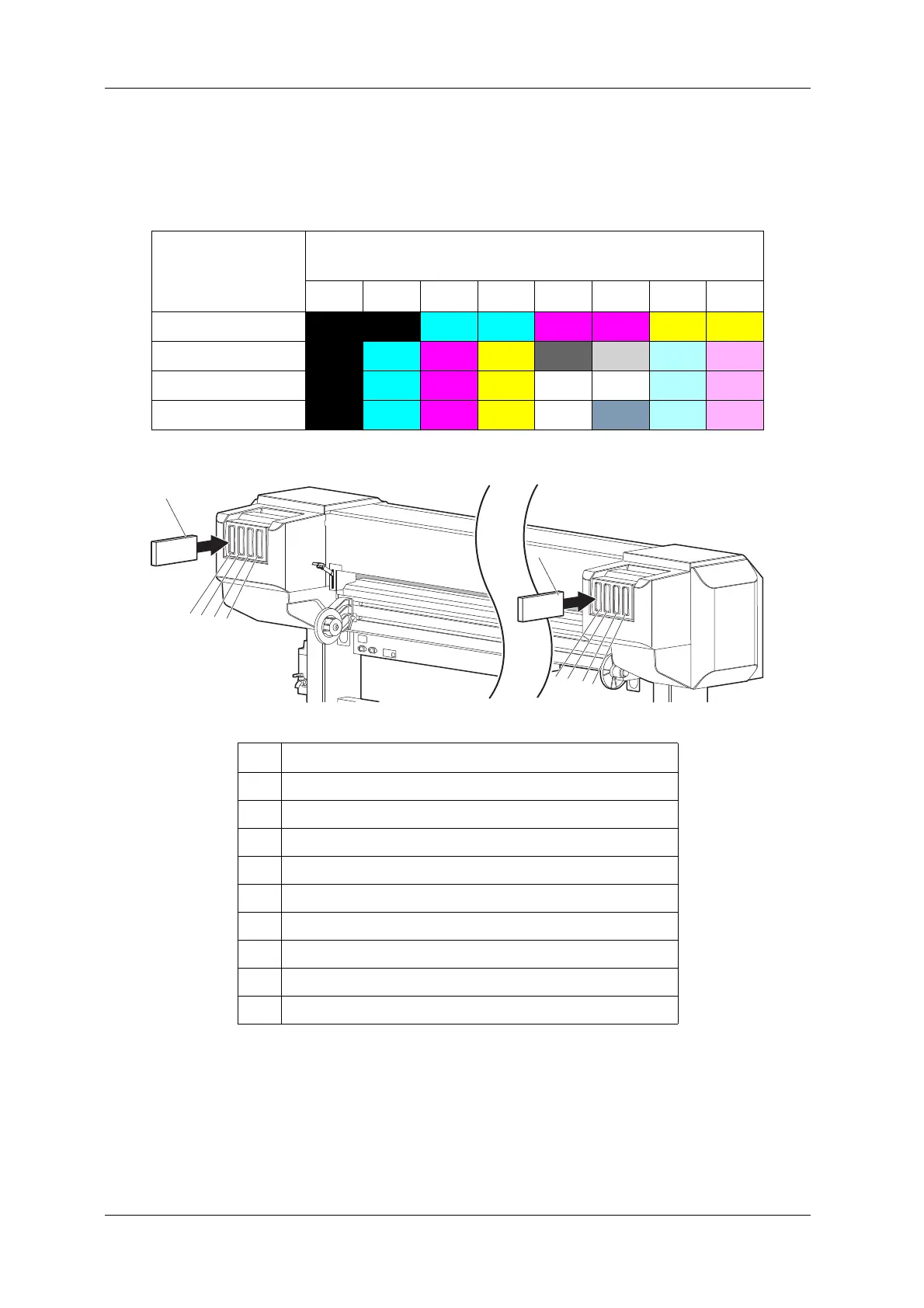

3.4.1.3 Color mode and slot number
The color mode related to the slot number is as follows.
Color mode Slot number
(symbols in slot number columns indicate ink color)
12345678
4Color K K C C M M Y Y
7Color
K C M Y Lk CL Lc Lm
W 7Color
K C M YWHWHLc Lm
W 8Color
K C M YWHMT Lc Lm
No. Name
1 Ink cartridge
2 Ink cartridge slot 1
3 Ink cartridge slot 2
4 Ink cartridge slot 3
5 Ink cartridge slot 4
6 Ink cartridge slot 5
7 Ink cartridge slot 6
8 Ink cartridge slot 7
9 Ink cartridge slot 8
1
1
5
4
3
2
9
8
7
6
