VJ-1628X OPERATION MANUAL Product overview
2.2 Names of parts and functions 27
2.2 Names of parts and functions
This section explains the names and functions of each part.

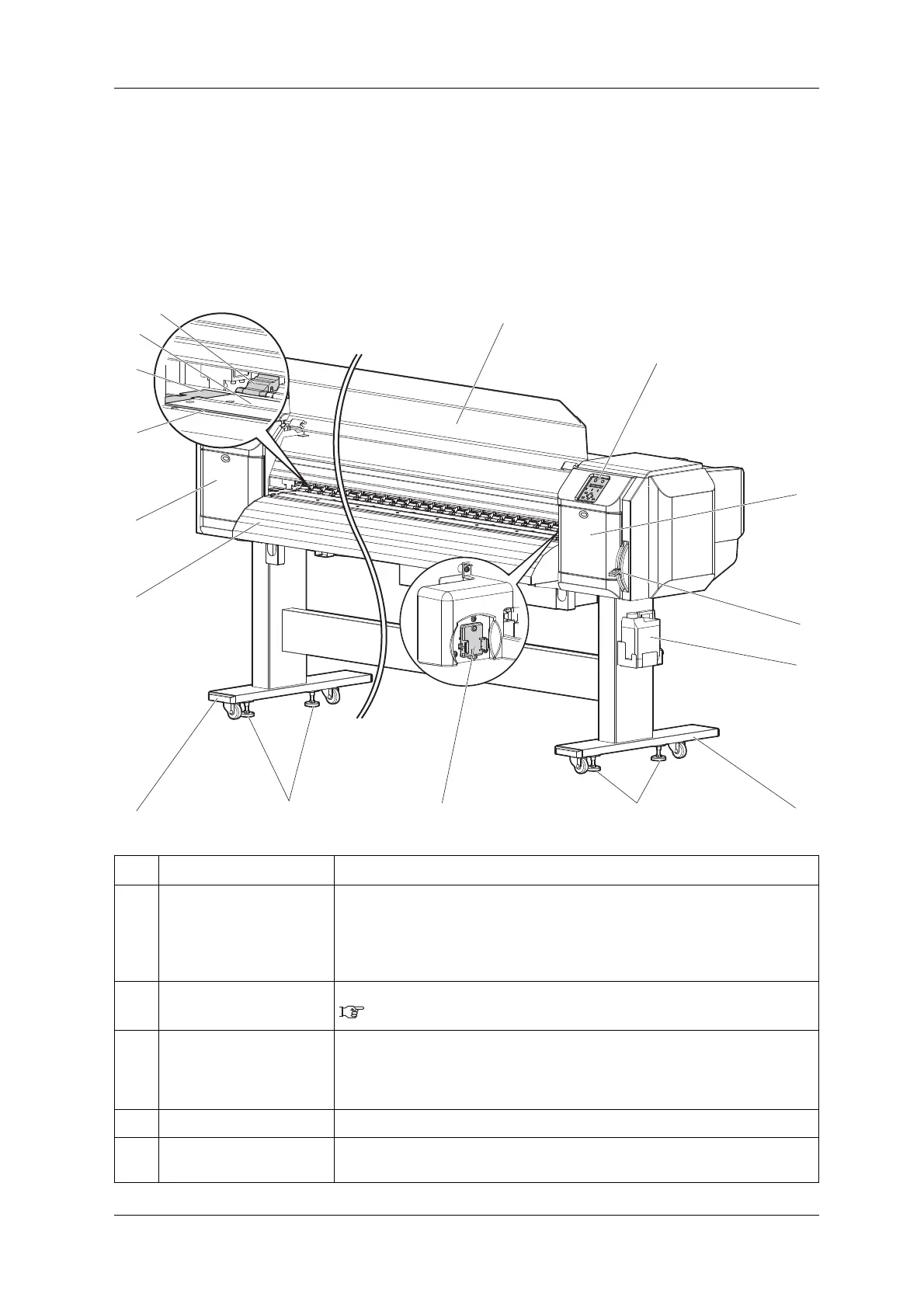

2.2.1 Front section
No. Name Function
1 Media loading lever Used for fixing or releasing the media.
• Lower Lever to fix the media.
• Lower Lever further to fix the media firmly.
Used to improve the accuracy of media feeding.
• Raise Lever to release the media.
2 Operation panel Used to set the operation condition, printer display and various functions.
2.2.3 Operation panel
3 Front cover Used to prevent the user from coming in contact with the driving mechanism during
the printer operation.
Opened and closed when media is loaded or jammed.
It is normally closed.
4 Stand Used when installing the printer on a flat floor.
5 Media guide Used to feed the media smoothly when loading or printing on the media.
• Heater (After heater) to dry ink is installed.
11
1
10
2
3
9
4
13
7
8
5
4
12
9
6
10
