Rotate the instrument until the dHA is close to
0°00'00".
4. Sight the target and press [MSR1] or [MSR2].
When the measurement is completed, the
differences between the target position and the
stakeout point are displayed.

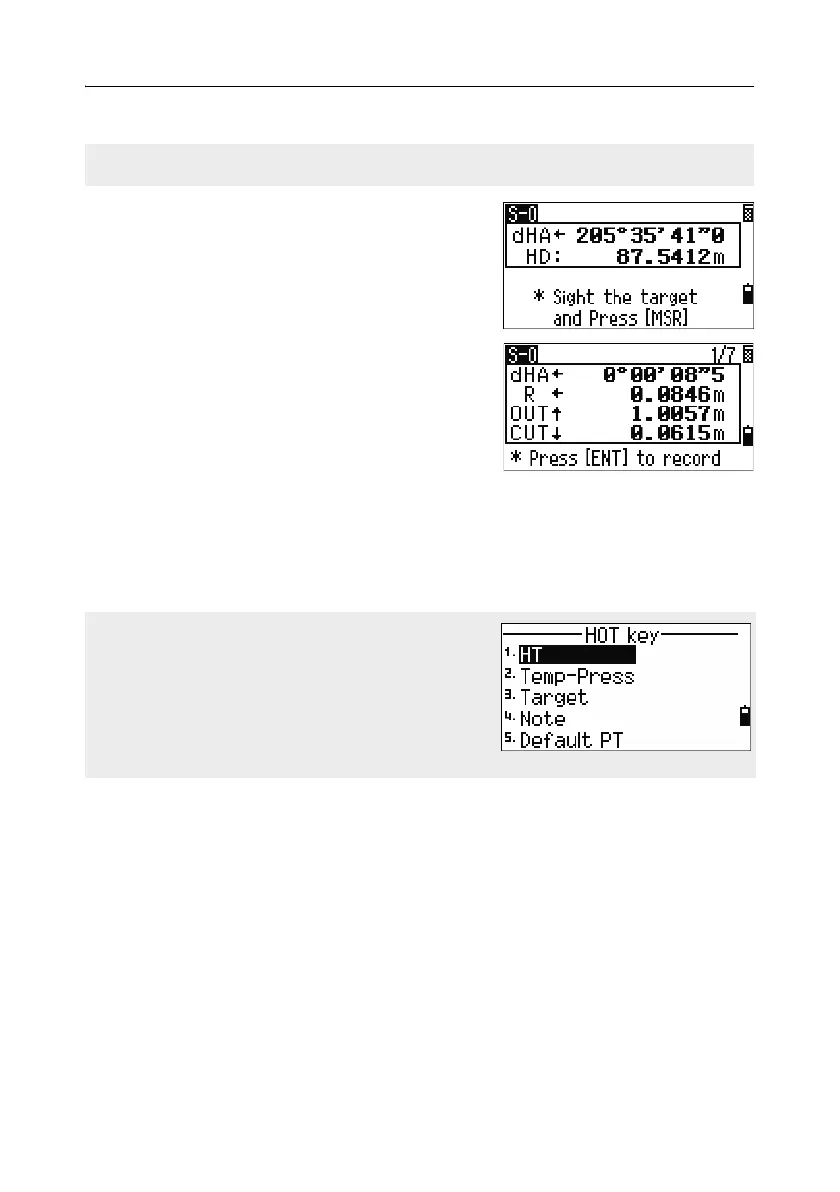

dHA Difference in horizontal angle to the
target point
R/L Right/Left (Lateral error)
IN/OUT In/Out (Longitudinal error)
CUT/FIL Cut/Fill
Once a measurement is taken, the Cut/Fill value and Z coordinate are updated as
the VA is changed.
If you press [ENT] without entering HA, the current HA is used.
If you press [HOT] in any observation screen, the
HOT key menu appears. You can use this menu
at any time to change HT and T-P.
To Next Page
