Power-Up and Testing 4-39
2. Perform a Valve Offsets routine as follows. See Figure 4-25.
a. In the FmXP Main Window, click on
Configuration.
b. Select
Machine Offsets from the Configuration menu.
c. In the dropdown menu, select
Scripted Valve Offsets.

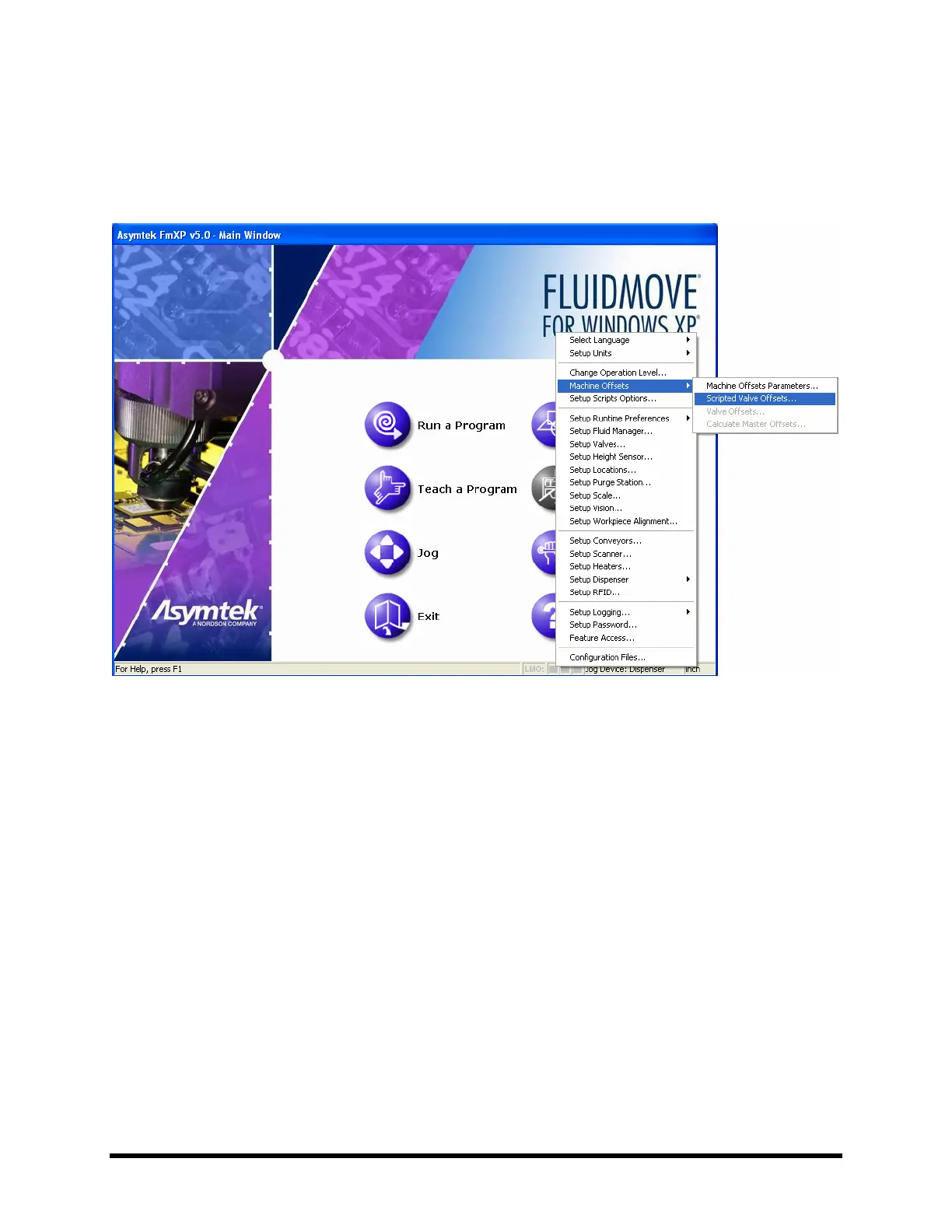

Figure 4-25 Valve Offset Dialog Boxes
! The Machine Setup dialog box opens (Figure 4-26).
