4-20 Power-Up and Testing
To check Board Sensor operation:
" NOTE This procedure assumes the following:
• Each conveyor station has a board sensor that is positioned to sense
the workpiece.
• The conveyor rail width has been adjusted to fit a production sample workpiece.
Perform this procedure as applicable to the configuration of your dispensing system.
1. Open the dispensing system hood.
2. Place a production sample workpiece on the conveyor to the left of the dispense station board
sensor.
3. In the Conveyor I/O Diagnostic dialog box (
Figure 4-14), locate the board sensor inputs.

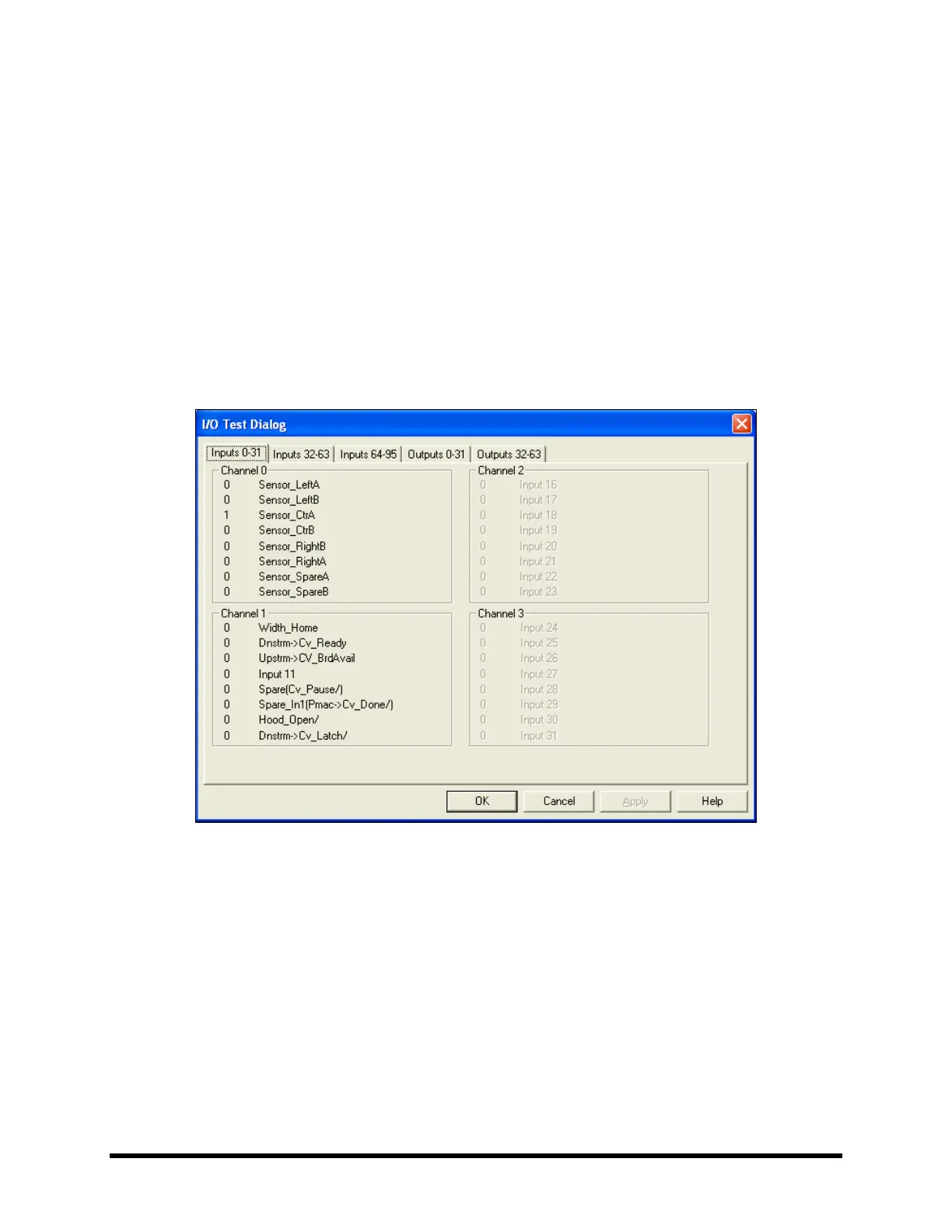

Figure 4-14 Conveyor I/O (Inputs 0-31)
4. Manually move the workpiece under or over (depending upon system configuration) the
dispense station board sensor and monitor the dialog box
SENSOR_CTRA input.
! The
SENSOR_CTRA input should change from OFF (0) to ON (1).
5. Move the workpiece out of Board Sensor sensing range and monitor the dialog box
SENSOR_CTRA input.
! The
SENSOR_CTRA input should change from ON (1) to OFF (0).
6. Repeat Steps
4 and 5 for the pre-dispense station and post-dispense station, as applicable.
