170 Appendix A 703t description reference

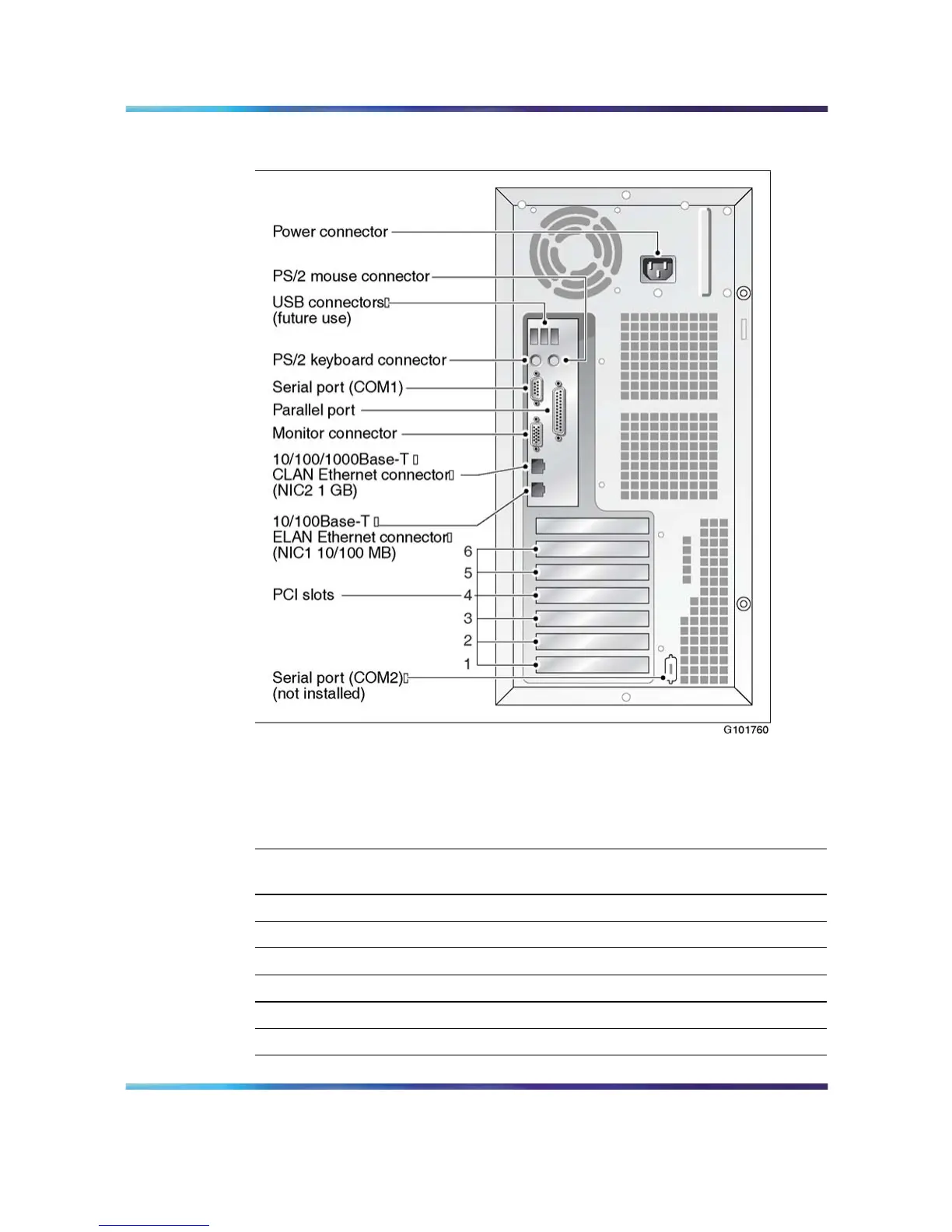

Rear panel diagram
703t server rear panel features
Note: For more information, see "Slot assignments" (page 172).
703t server rear panel parts
Part
Color
AC power supply connector
(450 W non hot-swap power supply)
Not applicable
USB connectors Not applicable
PS/2 keyboard connector Purple
PS/2 mouse connector Green
COM1 serial port connector (9-pin) Teal
Parallel port connector (25-pin) Pink
Monitor connector (15-pin) Blue
Nortel CallPilot
703t Server Maintenance and Diagnostics
NN44200-702 01.03 Standard
5.0 3 April 2007
Copyright © 2007, Nortel Networks Nortel Networks Confidential
.
