System Monitor 79
CallPilot
System Monitor
Windows Control Panel
equivalent
SQL Anywhere Adaptive Server Anywhere -
%ComputerName%_SQLANY
MAS MltmediaCache CallPilot Multimedia Cache
MAS MltmediaVol1 CallPilot Multimedia Volume 1
MAS MltmediaVol2 (TRP only)
CallPilot Multimedia Volume 2 (TRP
only)
MAS MltmediaVol3 (TRP only) CallPilot Multimedia Volume 3 (TRP
only)
MAS Rsrc. Pckg. 1 CallPilot Resource Package1
DSPs
In the DSP pane, each DSP is represented in a separate row. Each box in
the row is one DSP channel or multimedia channel. Click the Legend/Help
tab to view descriptions of the multimedia channel icons.
On the 703t ser ver, 12 DSPs are embedded on each MPB96 board.
DS30X links
In the DS30X link pane, each DS30 row represents a separate DS30X
link (also referred to as a DS30 link). Each box in the row represents one
DS30X channel.
The DS30X links connect the CallPilot server to the MGate card
(NTRB18CA) in the Mer idian 1 switch or Communication Server 1000
system.

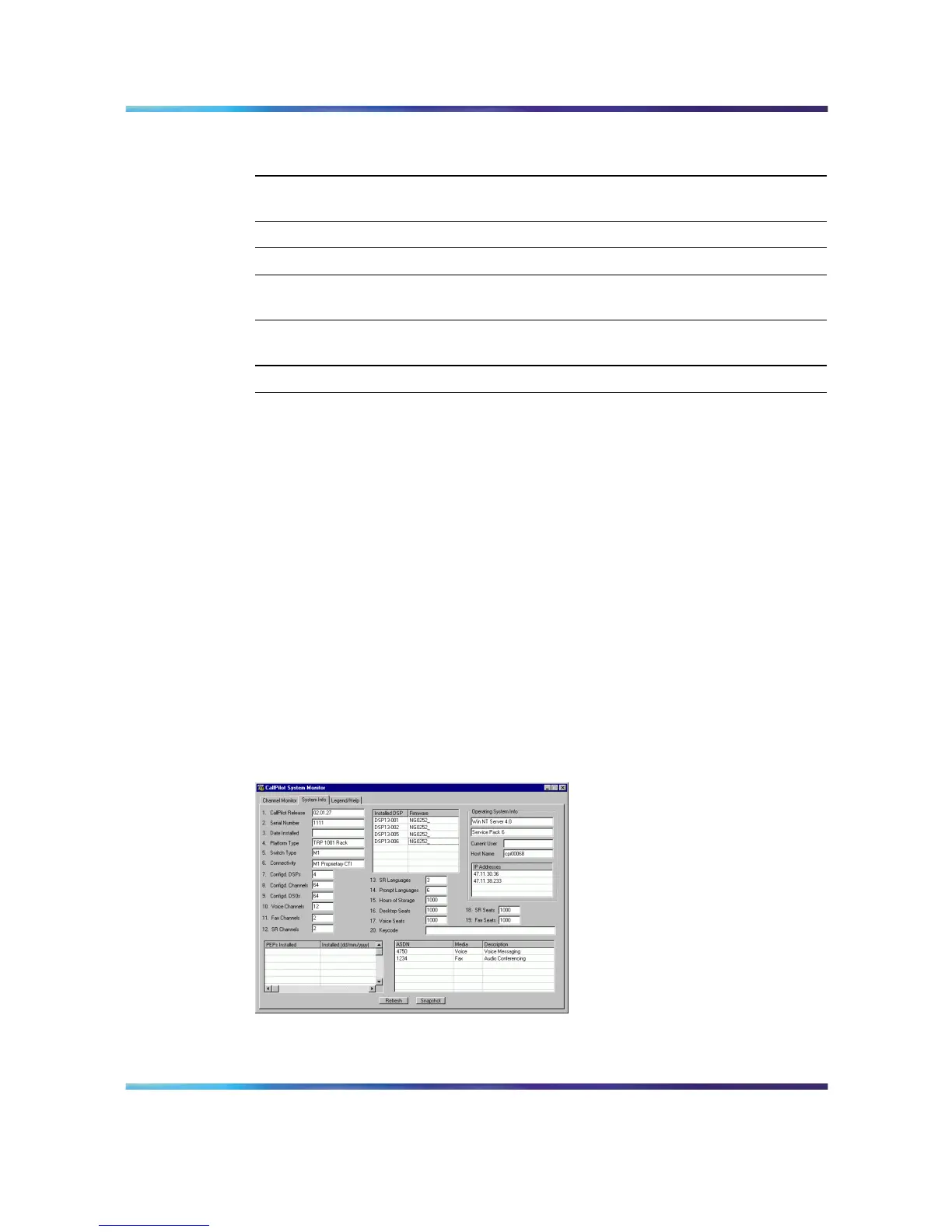

System Info tab
System Info tab.
Note: The screen sample above was acquired from a 1001rp server,
but provides the same type of information for any CallPilot server model.
