Nortel SONET AccessNode 800A Series - Page 169

Routing and terminating the VF cables 6-43
AccessNode Series 800A Outside Plant Cabinet Installation 323-3001-210 Issue 1.0
Procedure 6-8 (continued)
Connecting the outside plant cable pairs to 710 or 3M MS2 DPM connectors without
cross-connect

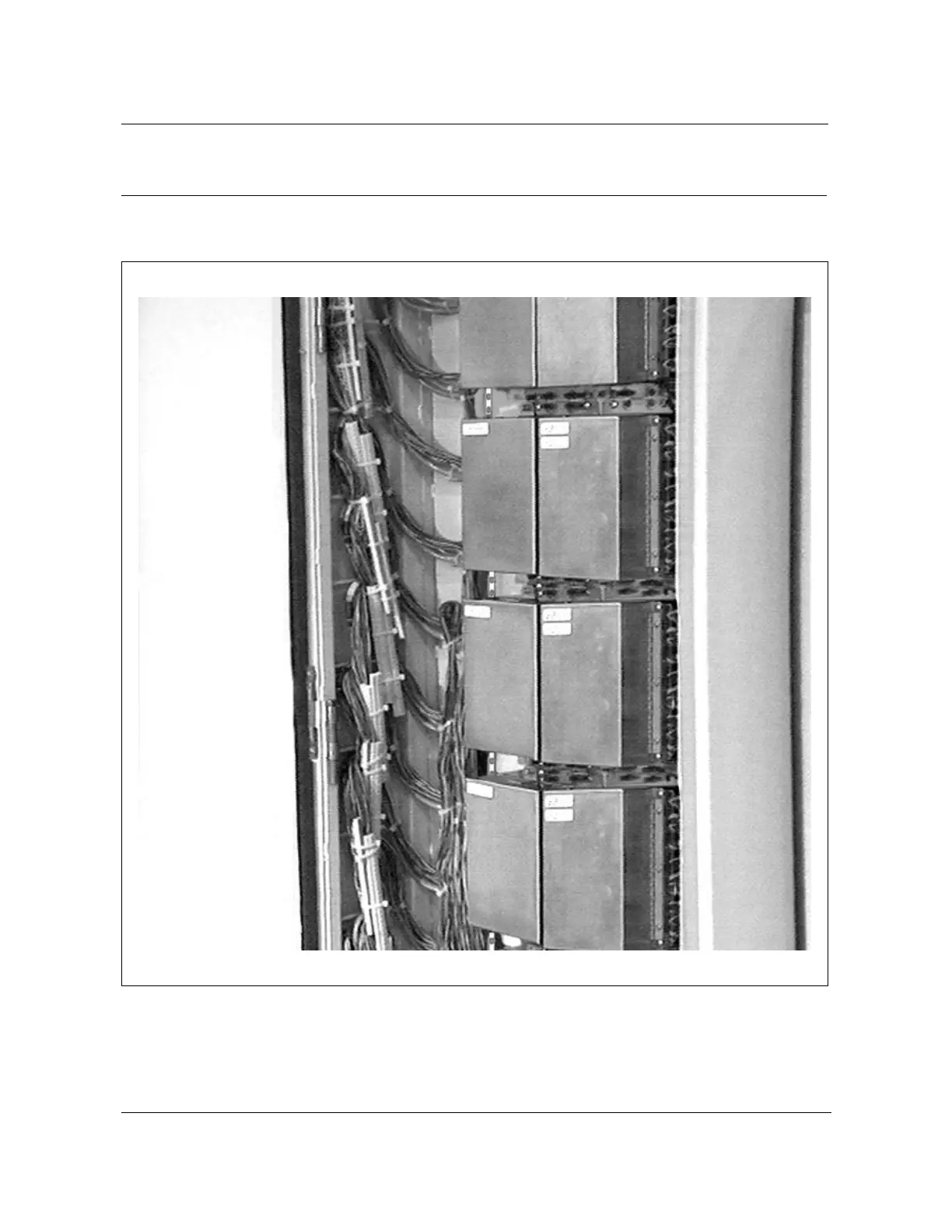

Figure 6-20
Completed cable terminations for 710 and 3M MS
2
without cross-connect
—continued—
