Nortel SONET AccessNode 800A Series - Procedure 10-1 Powering the Rectifier(S)

Adjusting the rectifier and the dc distribution shelf 10-5
AccessNode Series 800A Outside Plant Cabinet Installation 323-3001-210 Issue 1.0
Procedure 10-1 (continued)
Powering the rectifier(s)
Action
Step Action
1 Turn all ac, rectifier, BBP and BIP circuit breakers to the OFF position.
2 Set the SENSE DIP switch (see Table 10-1) on the dc distribution shelf (see
Figure 10-1) to the OFF position for all rectifier positions to be powered up.
Note: The SENSE DIP switch is in the OFF position when the switch is pulled
toward you.

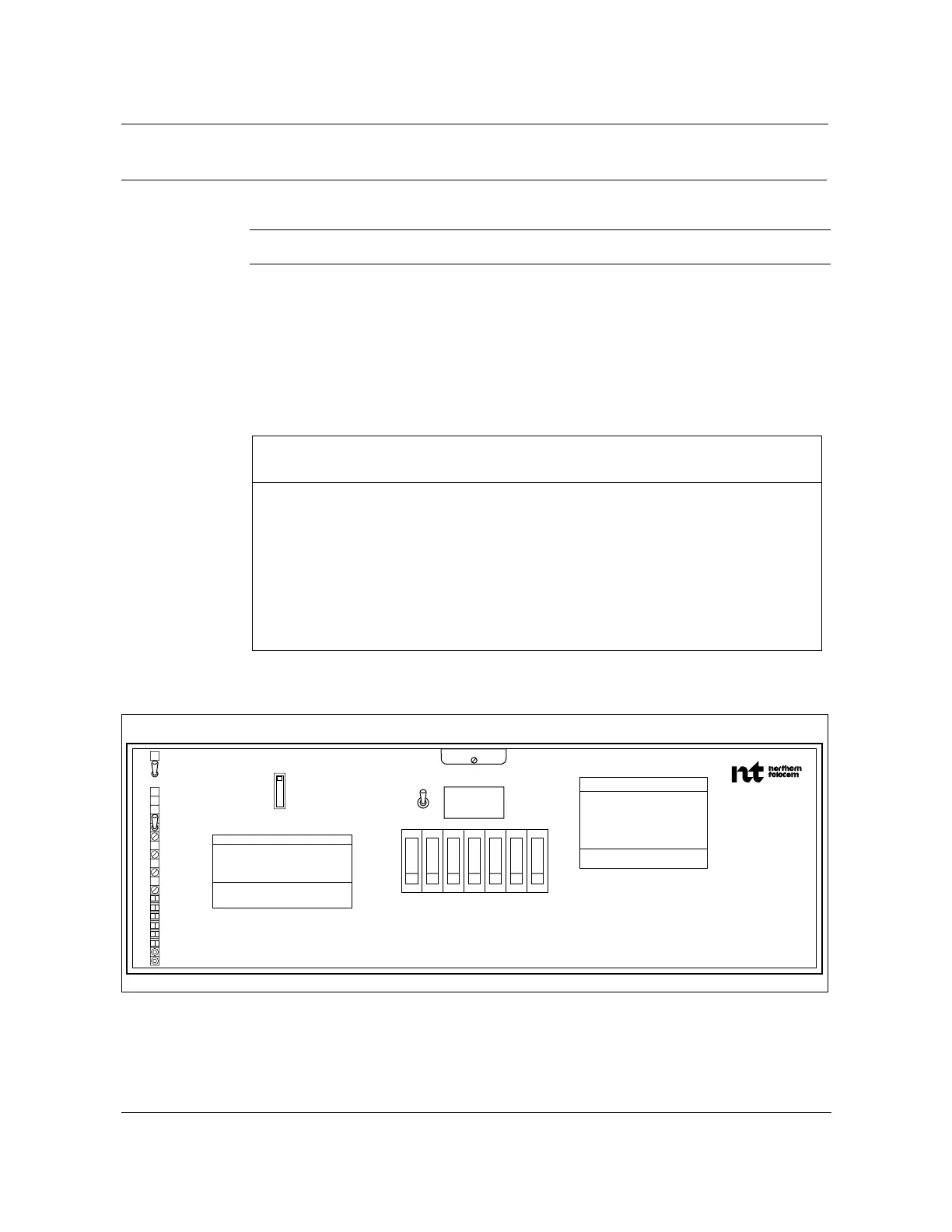

Figure 10-1
NT6C14JC distribution faceplate
FW-11100
—continued—
Table 10-1
DC distribution shelf SENSE DIP switch designations
SENSE DIP Switch
Position Rectifier shelf Associated rectifier
1 1 RECT1
2 1 RECT2
3 1 RECT3
4 2 RECT1
5 2 RECT2
6 2 RECT3
FW-11100
CB1 2 3 4 5 6 CB7
EQL
OFF
EQL
ON
RFA MAJ
RFA MIN
FA
NORM
BYP
LVD ADJ
LVD ALM
TST ADJ
TST BYP
LVDR
LV ALM
1
SEN
6
BAT GRD
-48V
CAUTION/ATTENTION
INTENDED FOR INSTALLATION IN
LOCATION ACCESSIBLE ONLY TO
QUALIFIED PERSONS.
HAZARDOUS VOLTAGES INSIDE.
TO BE HANDLED BY A QUALIFIED
PERSON ONLY.
CAUTION/ATTENTION
FOR CONTINUED PROTECTION AGAINST
RISK OF FIRE REPLACE ONLY WITH
SAME TYPE AND RATING OF FUSE.
POUR EVITER TOUT RISQUE D'INCENDIE
REMPLACER LES FUSIBLES PAR DES
FUSIBLES DU MEME TYPE ET CALIBRE
SENSE
1-1/3A
MBP DIST
NT6C14JA
REL-XXX
SER-XXX
VOLTS
AMPS
VOLTS/AMPS
LV ADJ
