Cabinet maintenance operations 12-41

AccessNode Series 800A Outside Plant Cabinet Installation 323-3001-210 Issue 1.0

Procedure 12-11 (continued)

Using the protector test access cord

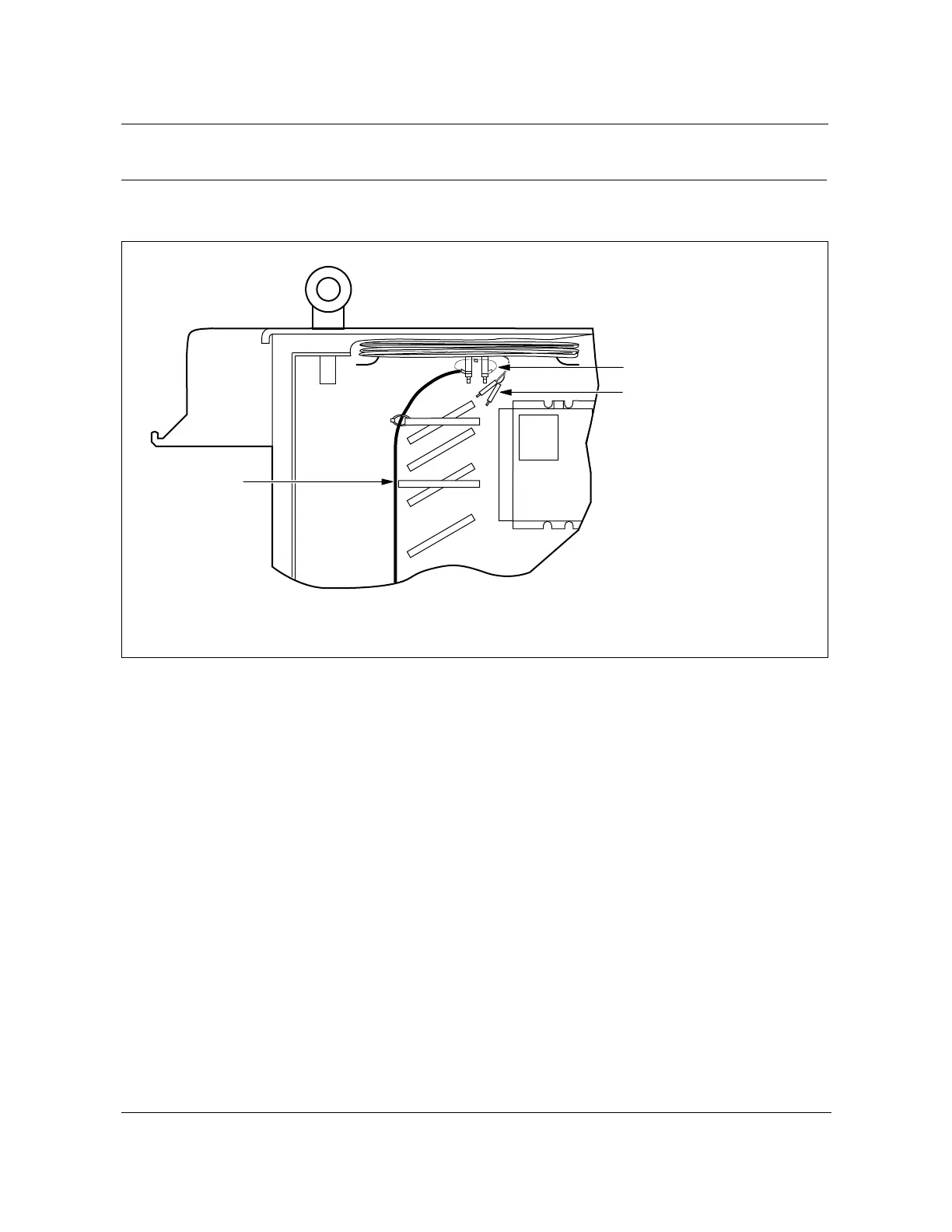

Figure 12-9

View of the protector test access cord

FW-15160

—end—

Ground cable

.125 X .375 roll pin (REF.)

Cutaway view looking through door on SAI compartment side

10' 6W3A combo test cord

FW-15160
