13-50 Cabinet and equipment wiring and cabling
AccessNode 323-3001-210 Issue 1.0
DS1 input/output cards
The ABM shelf houses the input/output (I/O) cards for connection of DS3,
DS1, access test cards for PGTC and the test bus access. Each DS1 mapper
card in the ABM shelf requires two I/O shelf positions: one for a DS1 input
card and one for a DS1 output card.
The DS1 protection mapper card requires a DS1 protection bridge card to be
placed in the I/O shelf.
The dual power filter cards are mounted in the far right-hand end of the shelf
for connection to the BIP. See Figure 13-19 on page 13-29 for the wiring
connection location to the BIP.
The DS1 input I/O card connection wiring diagram is shown in Figure 13-36.

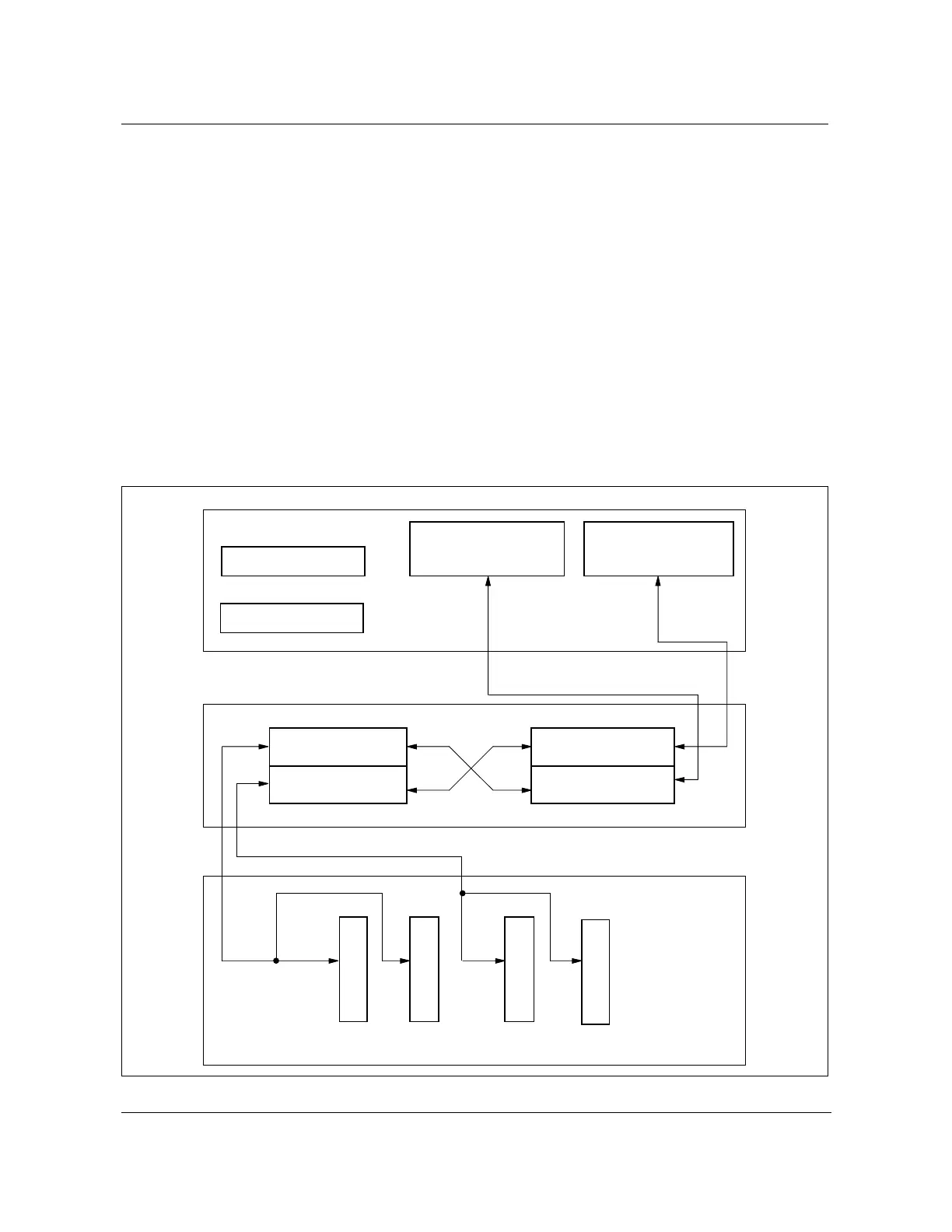

Figure 13-36
ABM I/O card cabling block diagram
FW-15194
Out
In
Out
In
Group A Group B128128
DSX
DS1 I/O cables NT4K85UA
Wire-wrap cross-connect
T
R
T
R
T
R
T
R
DSX - In
(XMT line/side 1)
DSX - Out
(RCV line/side 2)
RPTR cables
NPS51130L01
RCV from span
XMIT to span
Repeater shelf
NT4K33AA NT4K32AA
ABM shelf DS1 I/O cards
I/O card In
I/O card Out
I/O card Out
I/O card In
FW-15194
