12-64 Cabinet maintenance operations

AccessNode 323-3001-210 Issue 1.0

Procedure 12-17 (continued)

Replacing the fan ﬁlters in the heat exchanger roof

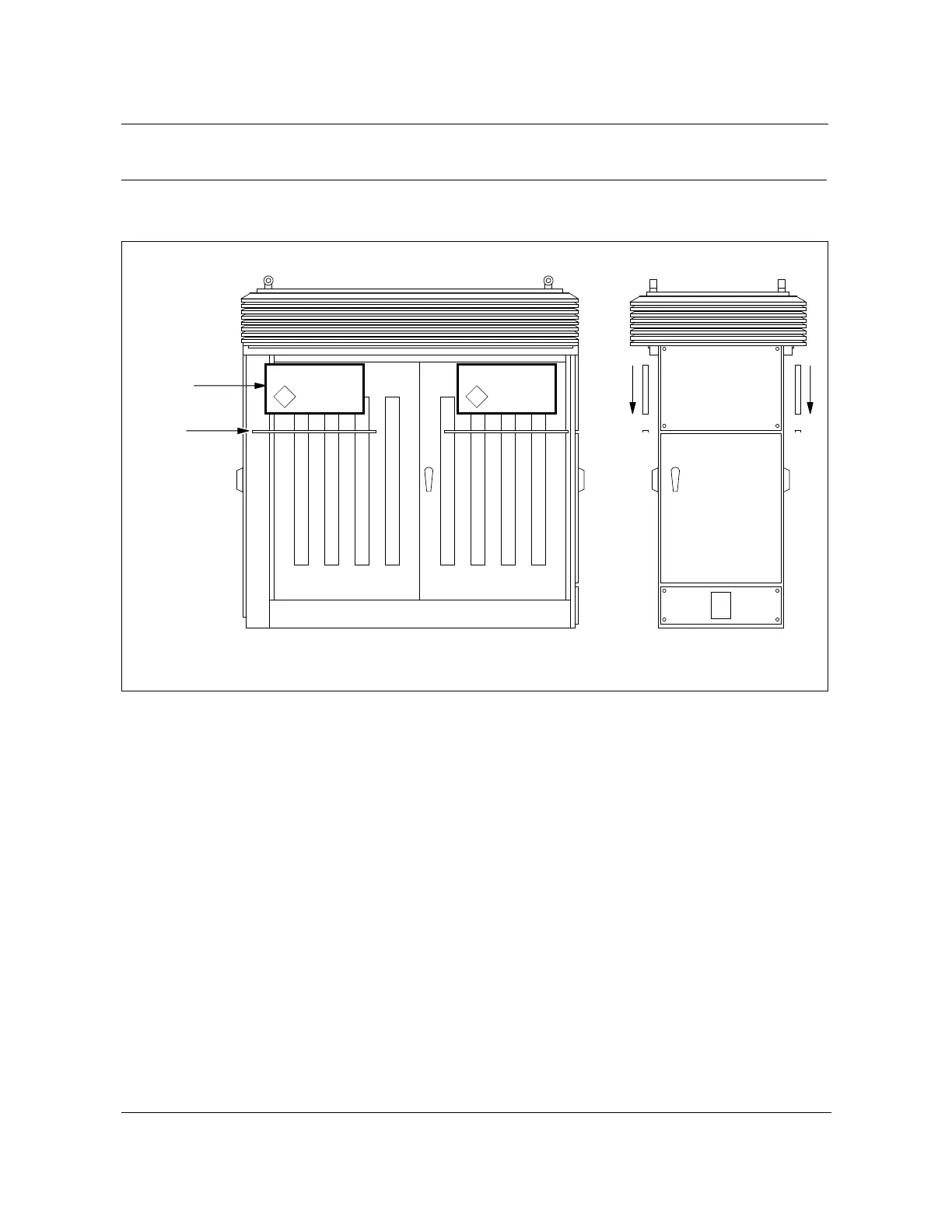

Figure 12-22

Replacing the fan ﬁlters in the heat exchanger roof

FW-15161

—end—

FW-15161

Filter

retaining

bracket with

1/4 turn screws

(Loosen and

pull filter

straight down)

Filter (4)

Front view Side view

Table of Contents7
