Nortel SONET AccessNode 800A Series User Manual

13-18 Cabinet and equipment wiring and cabling
AccessNode 323-3001-210 Issue 1.0
DC distribution shelf dc power wiring
The connection points on the dc distribution shelf (see Figure 13-11) for
wiring and cabling are located at the rear of the shelf.
The dc distribution shelf is interconnected to the rectifier shelf (see
Figure 13-10 on page 13-17), the battery interface panel, the T1 repeater shelf
(see Figure 13-12 on page 13-20) and the battery breaker panel (see
Figure 13-13 on page 13-21).

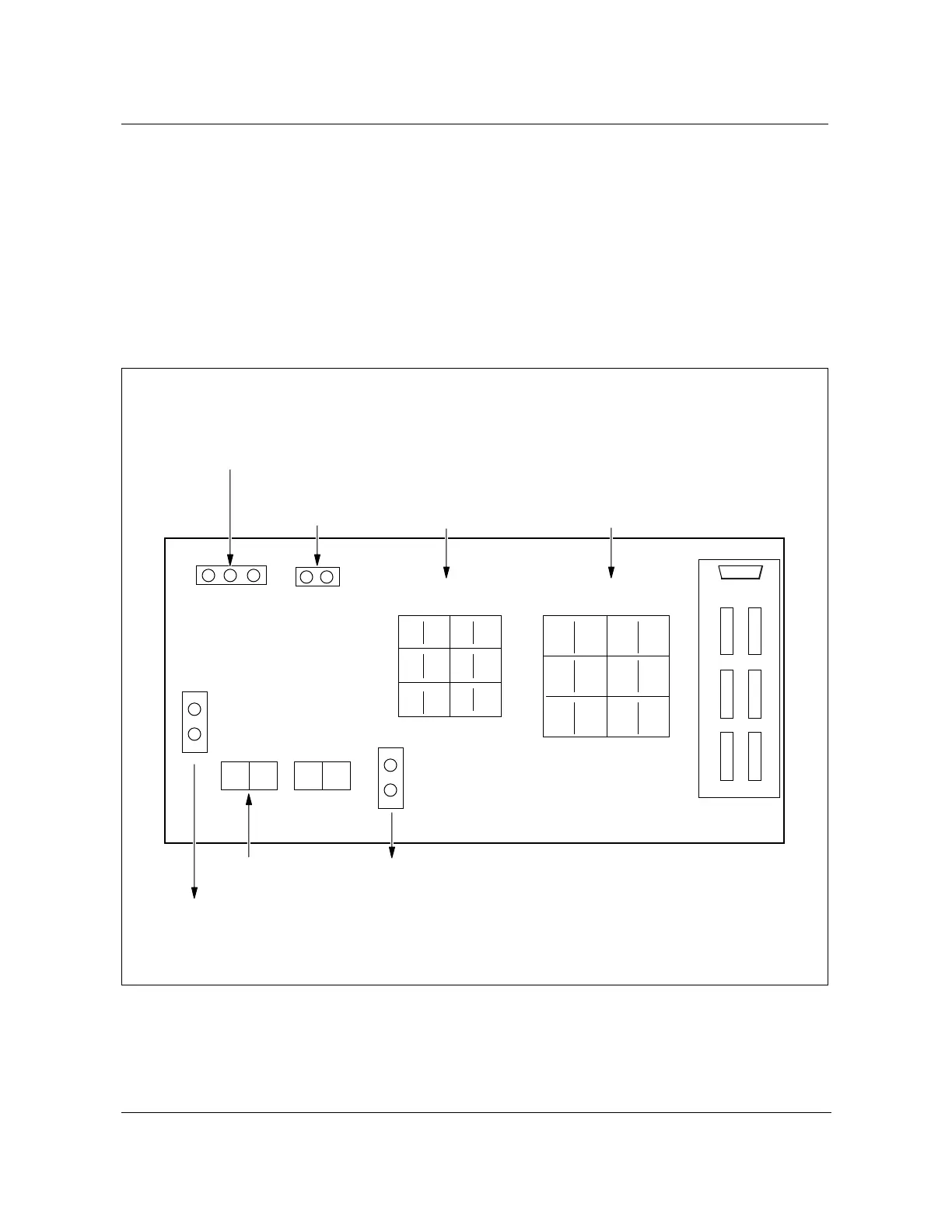

Figure 13-11
DC distribution panel wiring connections (rear view)
FW-15190
1
2
3
4
5
6
1
2
3
4
5
6
-48V BR -48V BR
-48V BR -48V BR
BIP BATTERY
GND
-48V -48VBR BR
S.PG
Alarm
RECT RECT
DOOR
From rectifier
To frame
ground bar
To single point
ground (SPG)
To BIP
(NT1W87DA
cable assembly)
TO
BBP
REPEATER
To repeater 1 shelf
(NT1W84DA
cable assembly)
To door
alarm switches
12
PWR
SHLF
1
2
3
1
2
3
FW-15190
