7-16 Routing and splicing the fiber cable
AccessNode 323-3001-210 Issue 1.0
Procedure 7-2 (continued)
Routing the OSP fibers in split flex tubing to the FPP
Prerequisites for installation
The prerequisites for routing and splicing the fiber cabling include:
• The cabinet has been mounted on the selected concrete pad as defined in
Chapters 1 through 6 of this practice.
• All hardware and materials are available and have been checked for
completeness and readiness for the installation.
• All the required drawings, local installation instructions, job
specifications, and other documentation are available and ready for use.
• Fiber cable has been pulled into the termination compartment as described
in Chapter 4, “Installing the OSP cables”.
• The fiber cable has been bonded and grounded (see Figure 7-9) in the
termination compartment as defined in Chapter 4, “Installing the OSP
cables”.

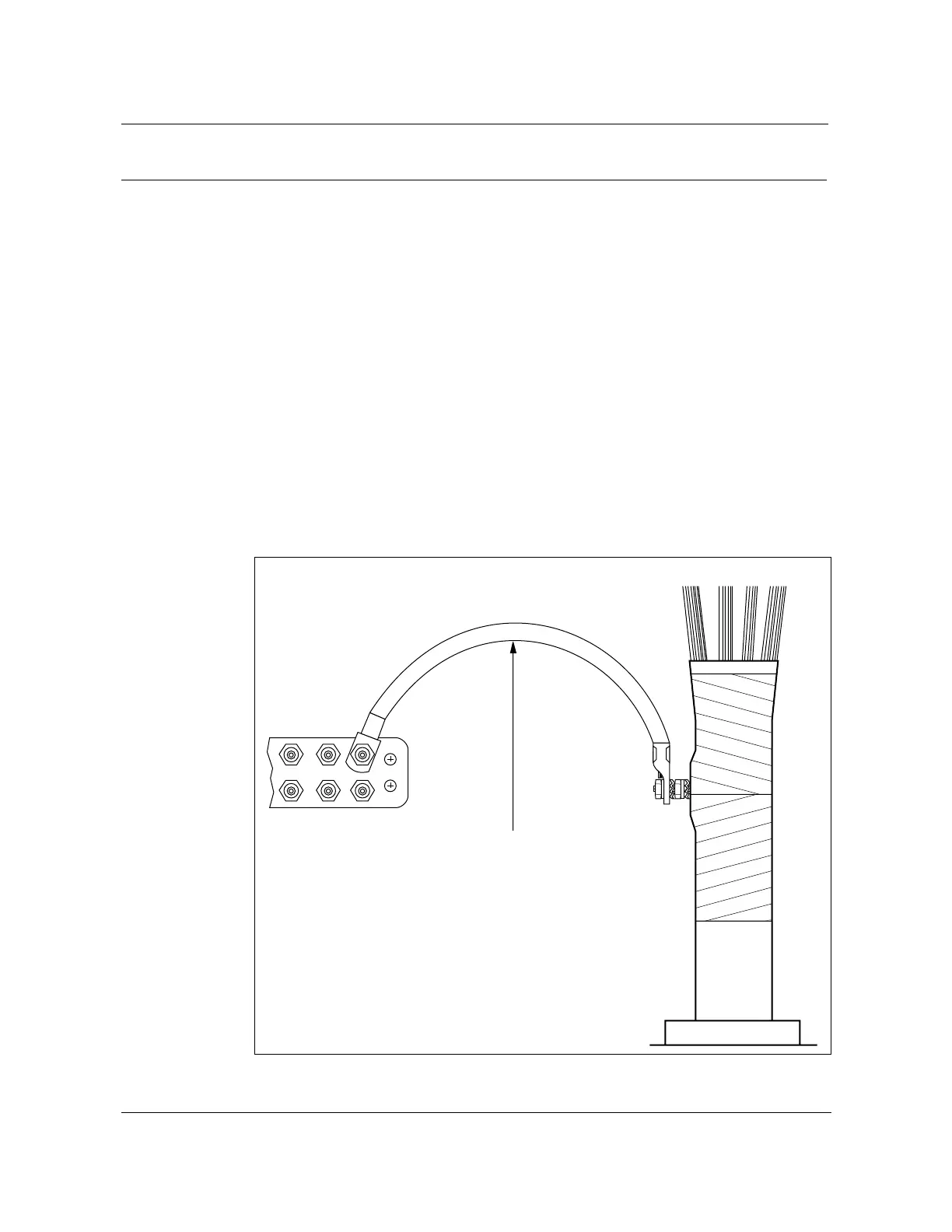

Figure 7-9
Fiber cable bonded and grounded in the termination compartment
FW-15134
—continued—
Note: Typical on OSP fiber cables
#6AWG GND wire
Series 800 cabinet
ground bar
FW-15134
To Next Page
