Routing and splicing the fiber cable 7-25
AccessNode Series 800A Outside Plant Cabinet Installation 323-3001-210 Issue 1.0
Procedure 7-3 (continued)
Routing the OSP fibers in split flex tubing to the FPP
Step Action
5 Route the tubing to the front of the ABM shelf (see Figure 7-11).
Note:
Maintain at least the minimum bend radius (3.0 inches/76 mm) for the
fiber pigtails or patch cords installed.
6 Insert 1/2-inch (13 mm) of one end of the tubing into the cable trough on the
top of the ABM shelf.
7 Extend the fiber patch cords along the cable trough at the top edge of the
ABM shelf as shown in Figure 7-11.

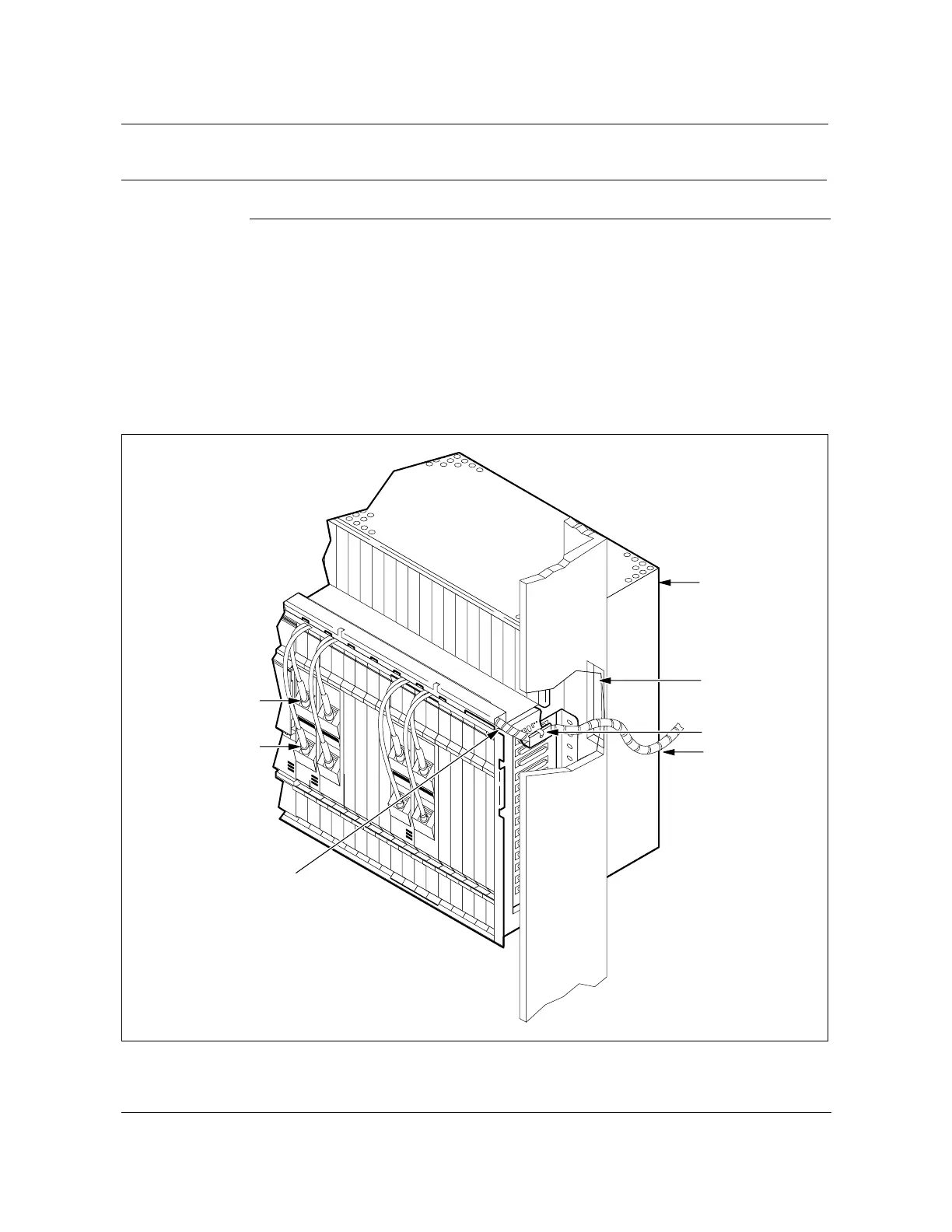

Figure 7-11
Routing patch cords to the ABM OC-3 or OC-12 cards
FW-15310
—continued—
Rx
Tx
Spiral
wrap
tubing
Tie-wrap
Insert approximately
1/2-inch (13 mm)
Swing frame
cutout
ABM shelf
FW-15310
