9-8 Installing and connecting the batteries
AccessNode 323-3001-210 Issue 1.0
Procedure 9-1 (continued)
Installing 12 V batteries in a cabinet

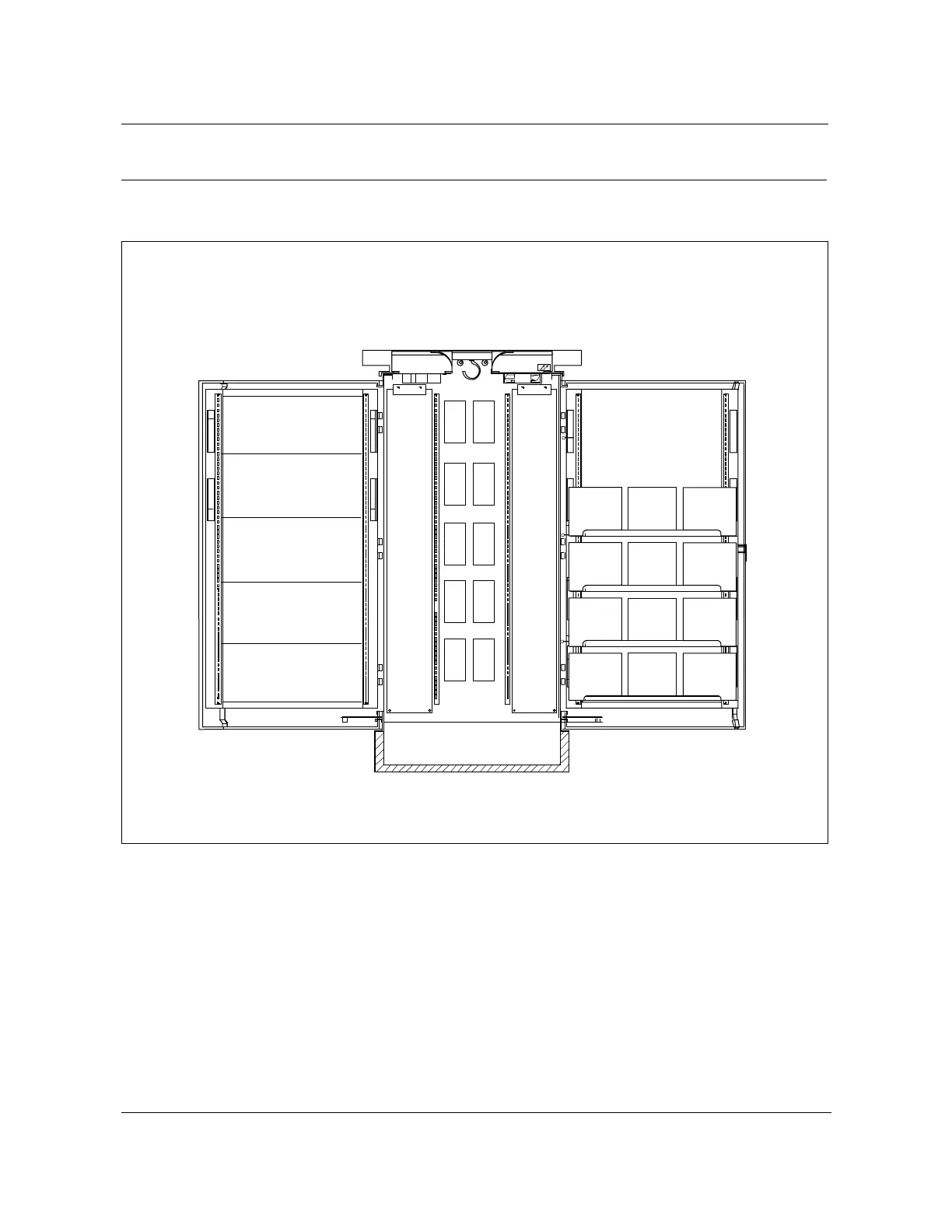

Figure 9-2
Battery string (9–14) arrangement for 12 V batteries in a swing frame
FW-16033
—continued—
Front
Rear
FW-16033
Inside view facing termination compartment with swing frames open
Batteries on floor
of cabinet
CDS 5
CDS 4
CDS 3
CDS 2
CDS 1
12V-11D
(11B Opp.)
12V-11C
(11A Opp.)
12V-10D
(10B Opp.)
12V-9D
(9B Opp.)
12V-9C
(9A Opp.)
12V-10C
(10A Opp.)
12V-13C
(13A Opp.)
12V-12D
(12B Opp.)
12V-12C
(12A Opp.)
12V-13D
(13B Opp.)
12V-14C
(14A Opp.)
12V-14D
(14B Opp.)
12 V Battery cables:
1) P0731368 (cable number 9)
2) P0731369 (cable number 10)
3) P0731370 (cable number 11)
4) P0731371 (cable number 12)
5) A0405013 (cable number 13)
6) A0405014 (cable number 14)
