Cabinet and equipment wiring and cabling 13-35
AccessNode Series 800A Outside Plant Cabinet Installation 323-3001-210 Issue 1.0

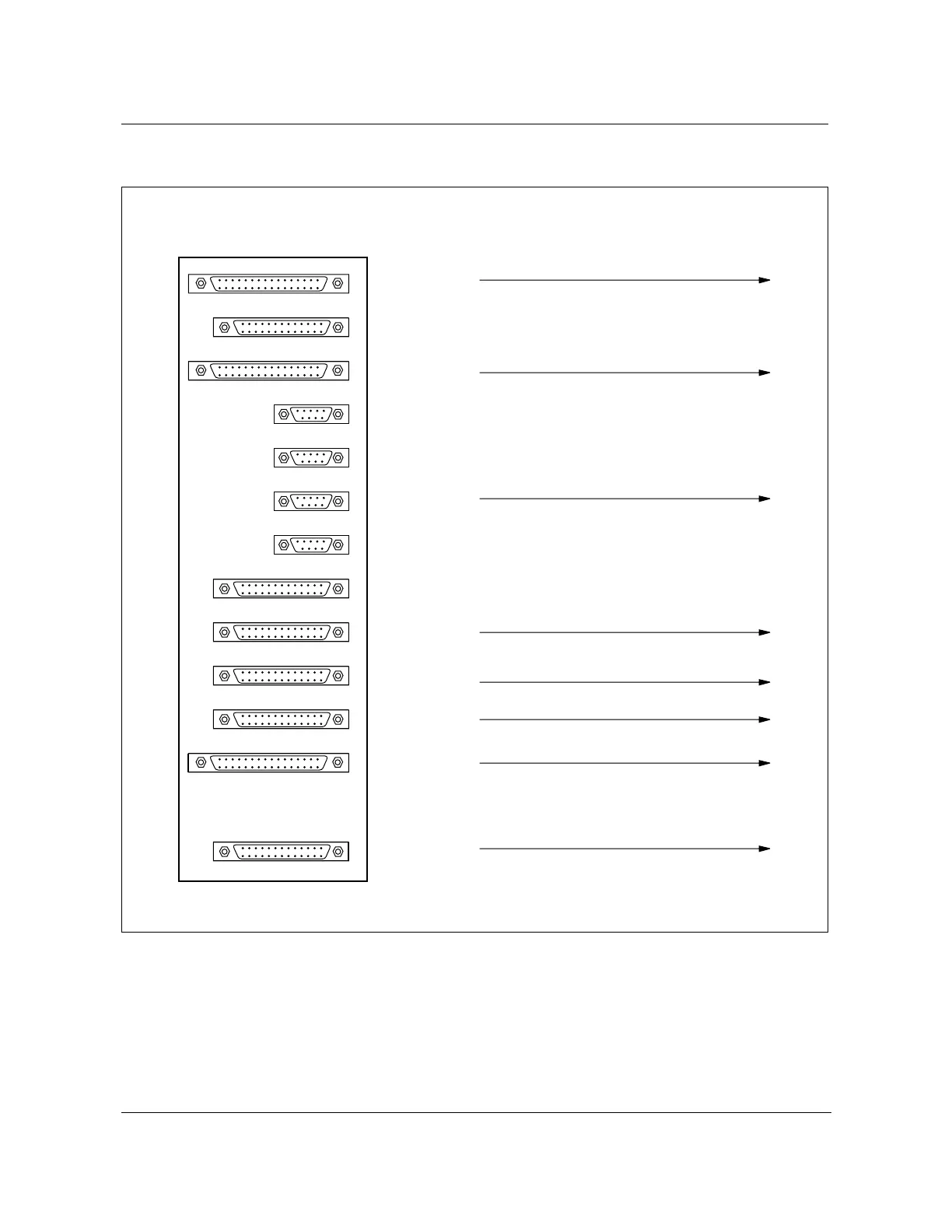

Figure 13-22
SIL card connector layout
FW-15175
BIP CTL
(J13)
Ext sync IF
(J12)
Parallel
telemetry
(J11)
Cont Net IN
(J10)
Cont Net OUT
(J09)
Modem
(J08)
OPC
(J07)
Serial
telemetry
(J06)
CU IF
(J05)
Order wire
extension
(J04)
LCAP 1
(J03)
LCAP 2
(J02)
CDS MTA
(J01)
Side interconnect left
NT1W85AA BIP control cable
NT1W82FB parallel telemetry cable
NT4K86RA RS232 cable
NT1W82FA Fan/Temp alarm cable
NT1W86NB MTA cable
NT1W1684 LCAP 2 cable
NT1W1683 LACP 1 cable
NT1W85TA O/W extension cable
FW-15175
