Nortel SONET AccessNode 800A Series User Manual

13-52 Cabinet and equipment wiring and cabling
AccessNode 323-3001-210 Issue 1.0

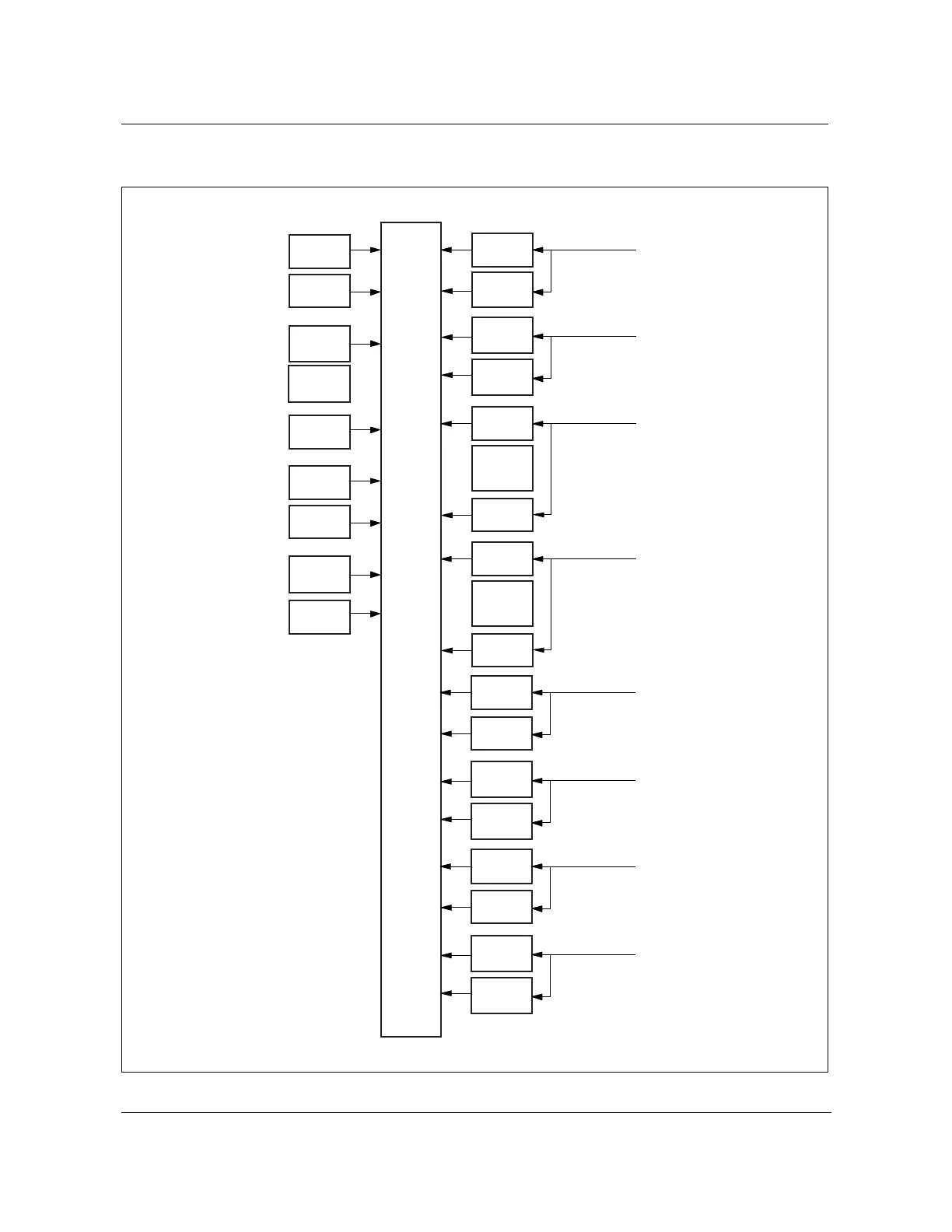

Figure 13-37
ABM DSX I/O card wiring block diagram
FW-15180
DS1
mapper 1
NT4K04AA
DS1
mapper 2
NT4K04AA
DS1
mapper 3
NT4K04AA
DS1
Prot. map.
NT4K04AA
ABM
backplane
To
DSX
NT4K85UA cable
DS1 I/P
I/O card
NT4K33AA
DS1 I/P
I/O card
NT4K33AA
J1
J2
J3
J30
J31
DS1 O/P
I/O card
NT4K33AA
DS1 O/P
I/O card
NT4K33AA
To
DSX
NT4K85UA cable
J32
J33
Protect.
I/O card
NT4K31AA
bridge
To
DSX
NT4K85UA cable
DS1 I/P
I/O card
NT4K33AA
J34
J35 DS1 I/P
I/O card
NT4K33AA
J38
J39
To
DSX
NT4K85UA cable
DS1 I/P
I/O card
NT4K33AA
DS1 I/P
I/O card
NT4K33AA
J40
J41
DS1 O/P
I/O card
NT4K33AA
DS1 O/P
I/O card
NT4K33AA
To
DSX
NT4K85UA cable
J42
J43
To
DSX
NT4K85UA cable
DS1 I/P
I/O card
NT4K33AA
DS1 I/P
I/O card
NT4K33AA
J44
J45
DS1 O/P
I/O card
NT4K33AA
DS1 O/P
I/O card
NT4K33AA
To
DSX
NT4K85UA cable
DS1
mapper 5
NT4K04AA
DS1
mapper 6
NT4K04AA
DS1
mapper 7
NT4K04AA
J4
J5
J6
J7
J8
DS1
mapper 4
NT4K04AA
DS1
mapper 8
NT4K04AA
J36
J37
Protect.
I/O card
NT4K31AA
bridge
To
DSX
NT4K85UA cable
DS1 O/P
I/O card
NT4K33AA
DS1 O/P
I/O card
NT4K33AA
FW-15180
