13-68 Cabinet and equipment wiring and cabling
AccessNode 323-3001-210 Issue 1.0

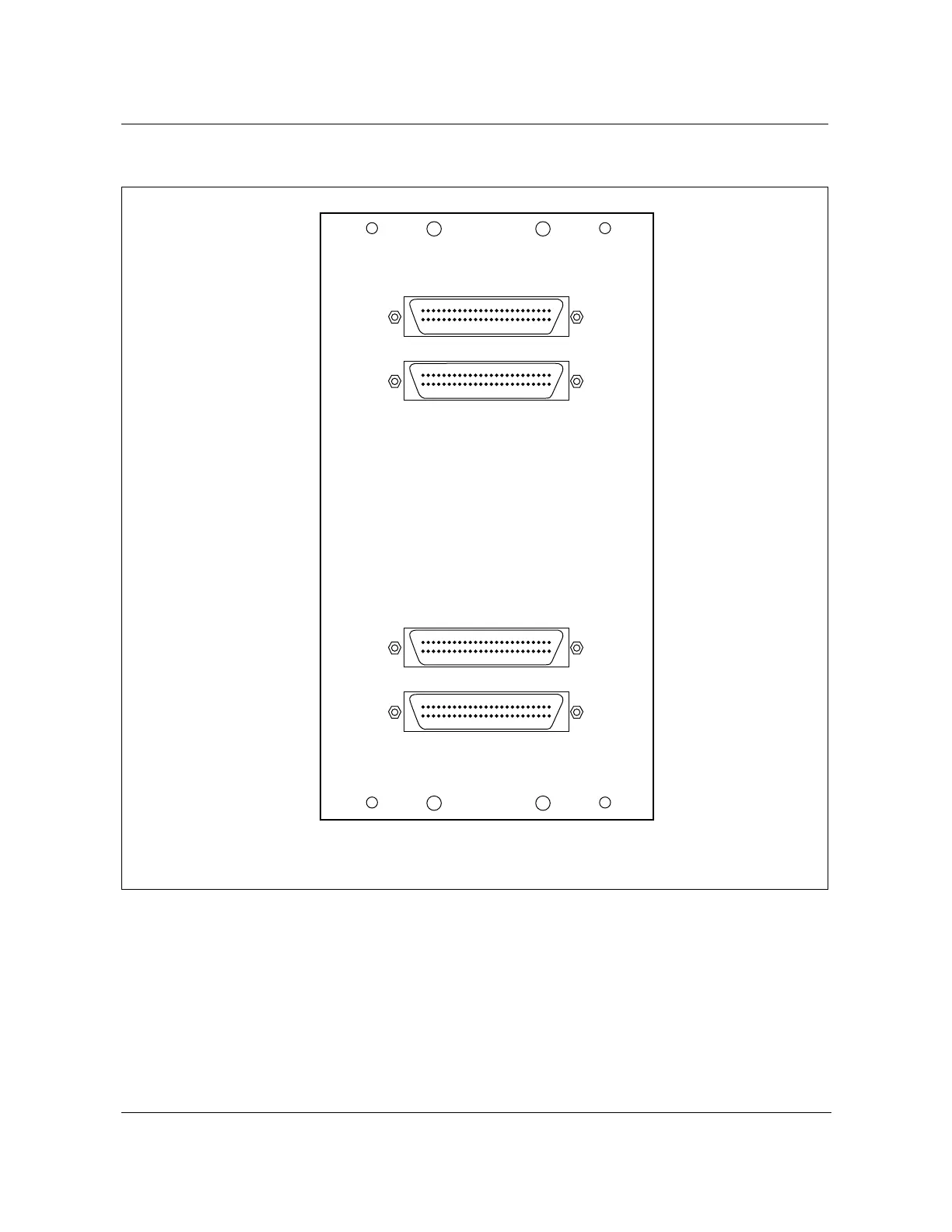

Figure 13-43
VF protector block connector layout
FW-15178
Note:
Protector block positions 97-100 are not used.
25
25
50
1
26
1
J3
26
1
50
25
J4
26
125
25 1
J1
26
1
50
25
J2
26
1
50
25
50
FW-15178
