Connecting commercial power 3-9

AccessNode Series 800A Outside Plant Cabinet Installation 323-3001-210 Issue 1.0

Procedure 3-2 (continued)

Wiring the ac load box as a branch circuit

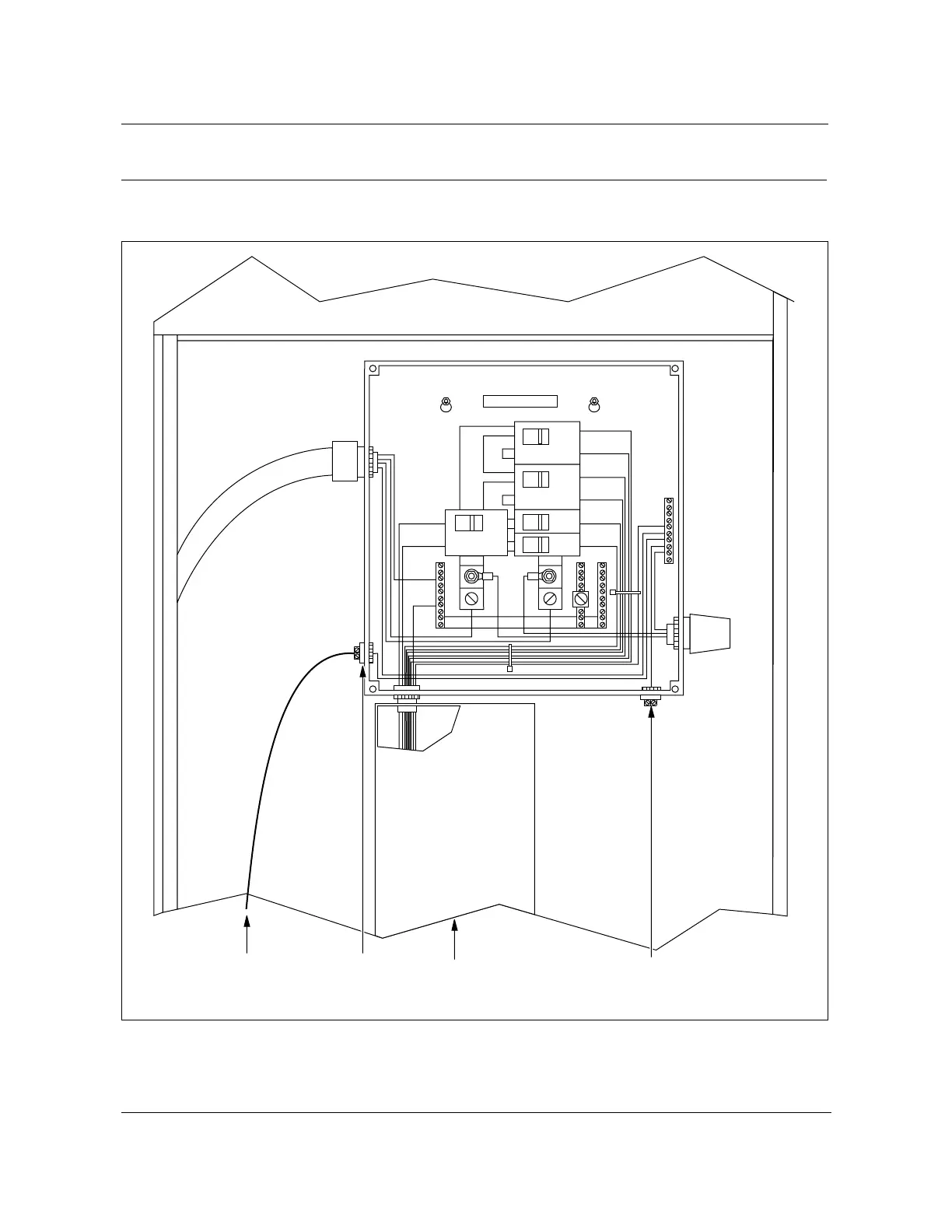

Figure 3-1

AC load box wired as branch circuit

FW-15119

—end—

Bushing

BLK

RED

BLK

RED

BLK

RED

GRN

[CB 2]

[CB 3]

[CB4]

[CB5]

[CB 1]

WHT

BLK

GRN

WHT

GRN

Cover

To AC

ground

rod

ground

bar

BLK

FW-15119
