7.3.4.3 Replacing the transfer corotron (torn wire) (pinfed)
A29246-X20-X-4-7680 / fa702_pinfed.fm 277
Install new transfer corotron
7.3.4.8 Complete corotron replacement >>> page 290
Important
Observe the safety directives before replacing corotrons (see section 7.3.4 Replacing
corotrons, page 269).
Proceed as follows:

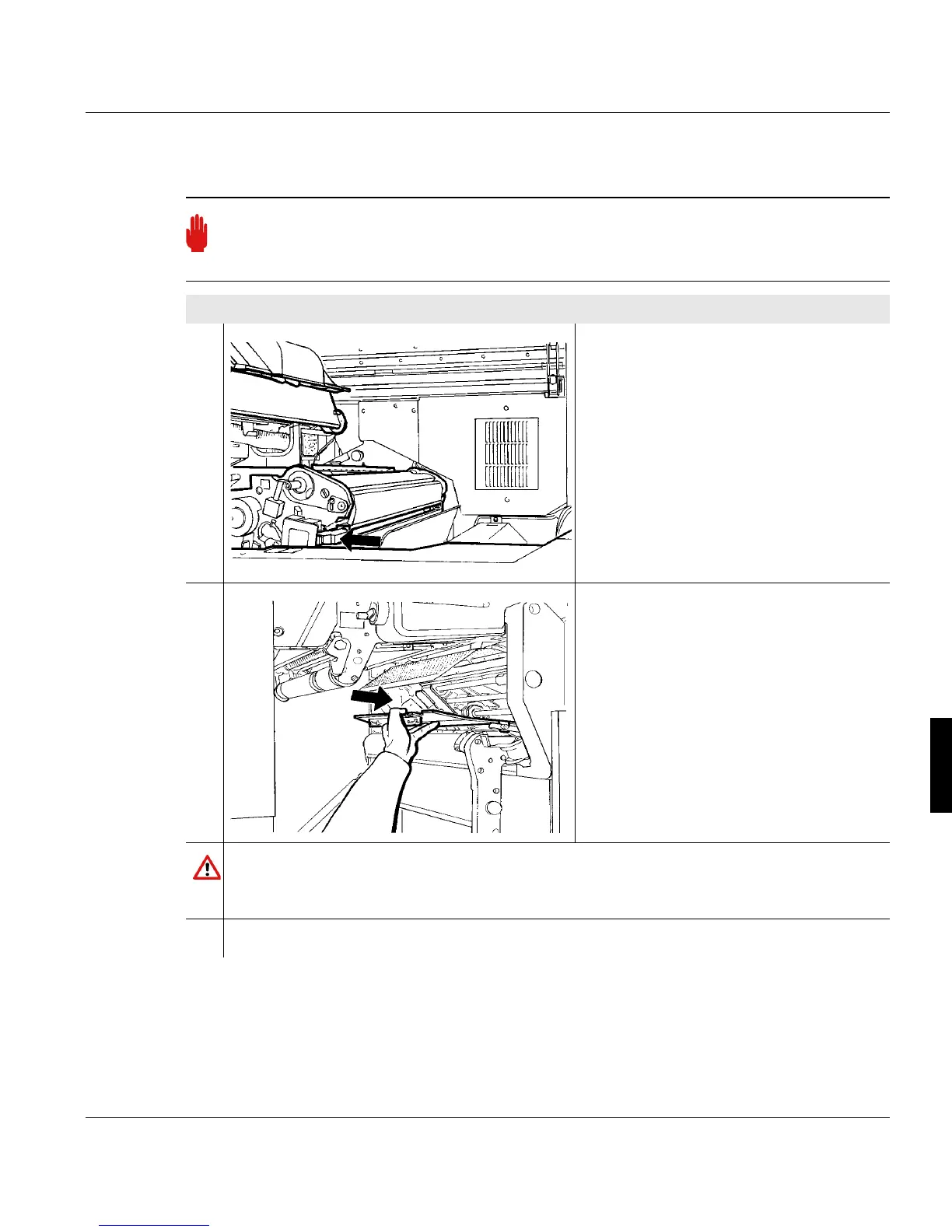

1. Push in new corotron cartridge until the
spring engages.
2. Swivel down the paper transporter by
the handle to the stop point and hold
firmly. At the same time, raise the
locking lever with your thumb to the
point where it jumps back to its exit
position.
Caution
Danger of pinching when swiveling the paper transporter back.
Always swivel the paper transporter back slowly and carefully.
3. Swivel the paper transporter back again.
