7.3.5 Replacing the active filter
292 A29246-X20-X-4-7680 / fa703.fm

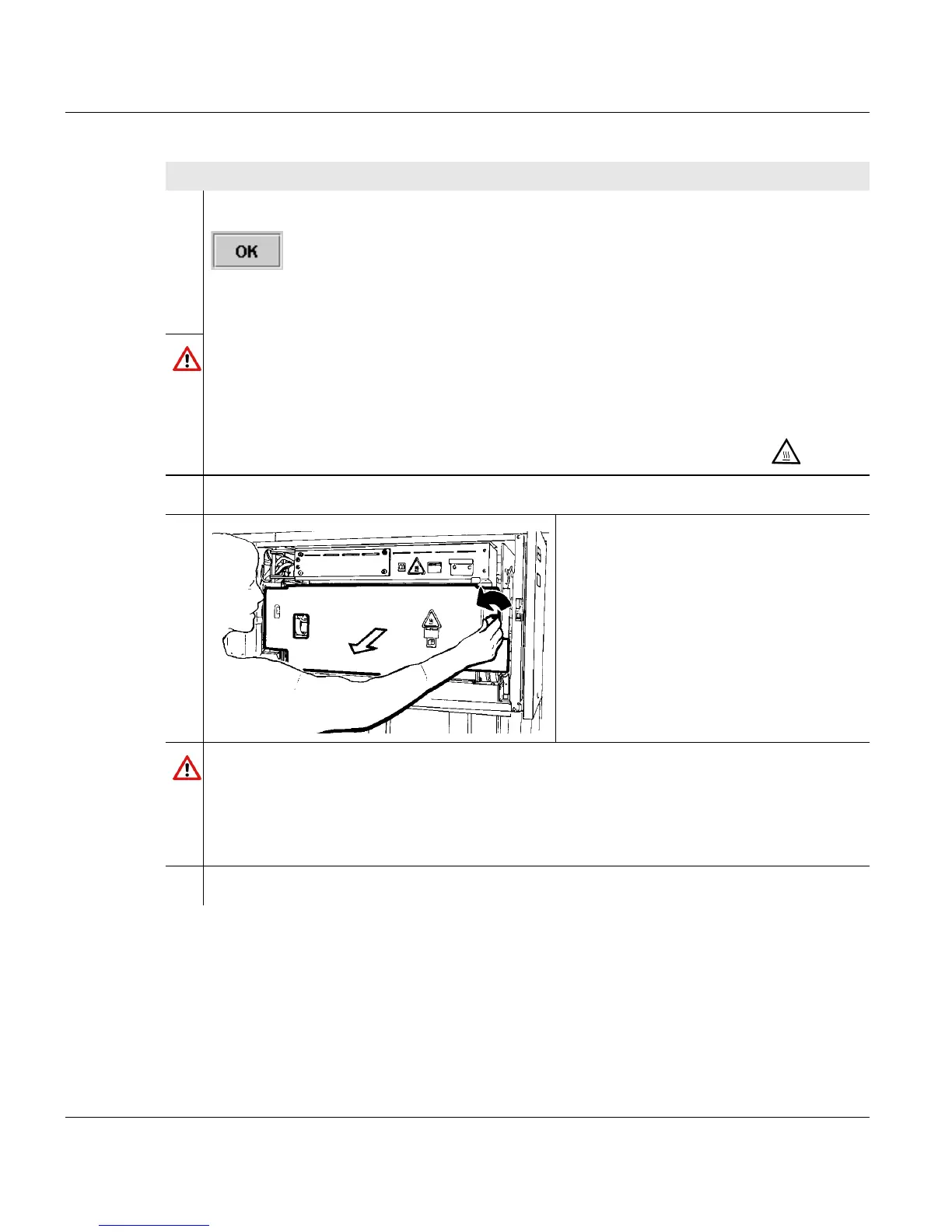

3. Click the following button to start the active filter replacement:
Information on the icons displayed on the operator panel under "Worksteps":
see section Icons, page 93
Caution
The components in the fuser station reach a surface temperature of approximately
230
o
C in operation.
If you touch them, you may burn yourself.
Do not touch any parts behind the safety covers identified with the icon .
4. Open side door of fuser station.
5. Turn the knob of the oiling unit to the
left and swivel on oiling unit.
Caution
The components in the fuser station reach a surface temperature of approximately
230
o
C in operation.
If you touch them, you may burn yourself.
Put on heat protection gloves before you continue.
6. Put on heat protection gloves.
Proceed as follows:
2 of 3
