7.3.6 Replacing the cleaning belt
298 A29246-X20-X-4-7680 / fa703.fm

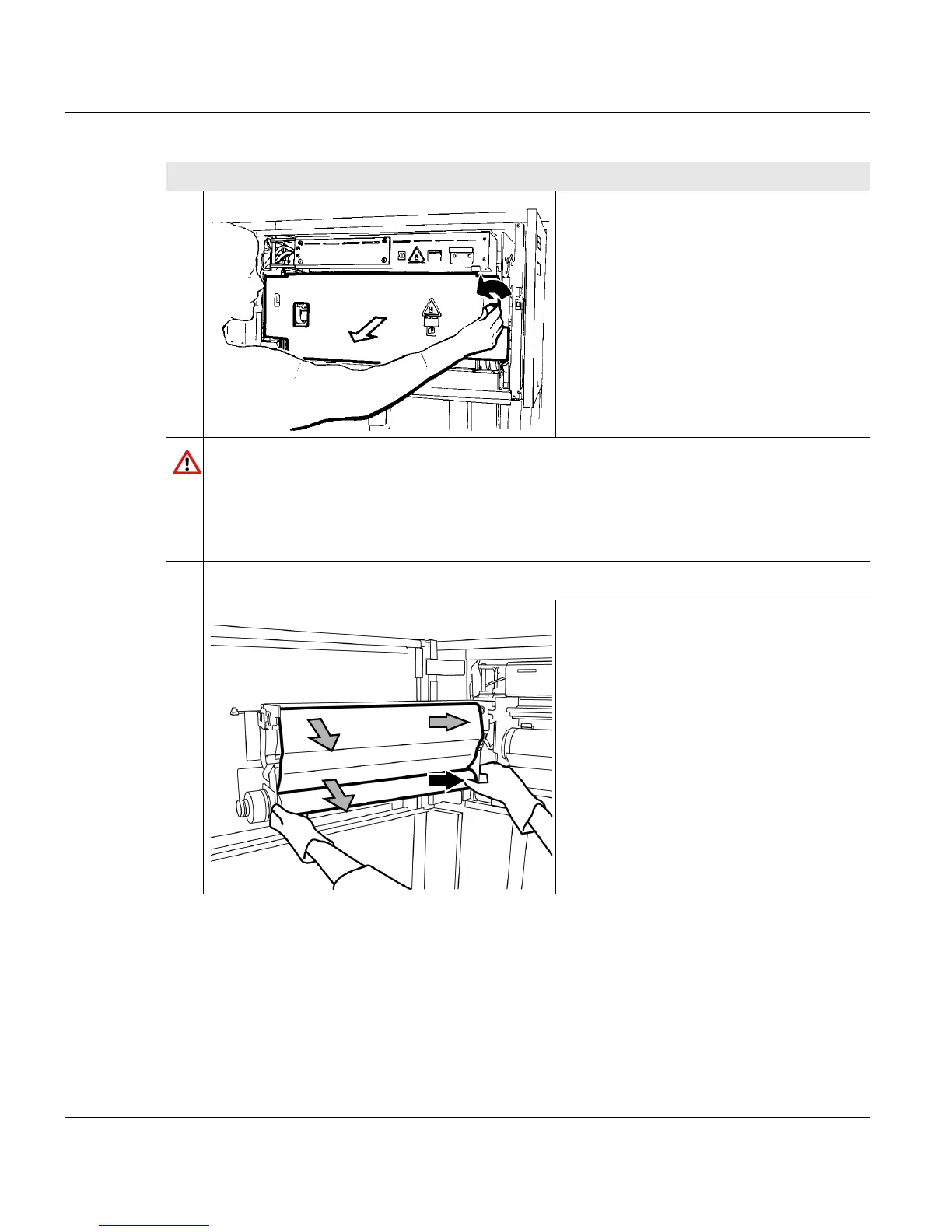

5. Turn the knob of the oiling unit to the
left and swivel on oiling unit.
Caution
The components in the fuser station reach a surface temperature of approximately
230
o
C in operation.
If you touch them, you may burn yourself.
Put on heat protection gloves before you continue.
6. Put on heat protection gloves.
7. Press the empty and the used cleaning
belt roller against the right spring
support and remove. Place cleaning
belt in old packaging.
Proceed as follows:
2 of 2
2
3
4
To Next Page
