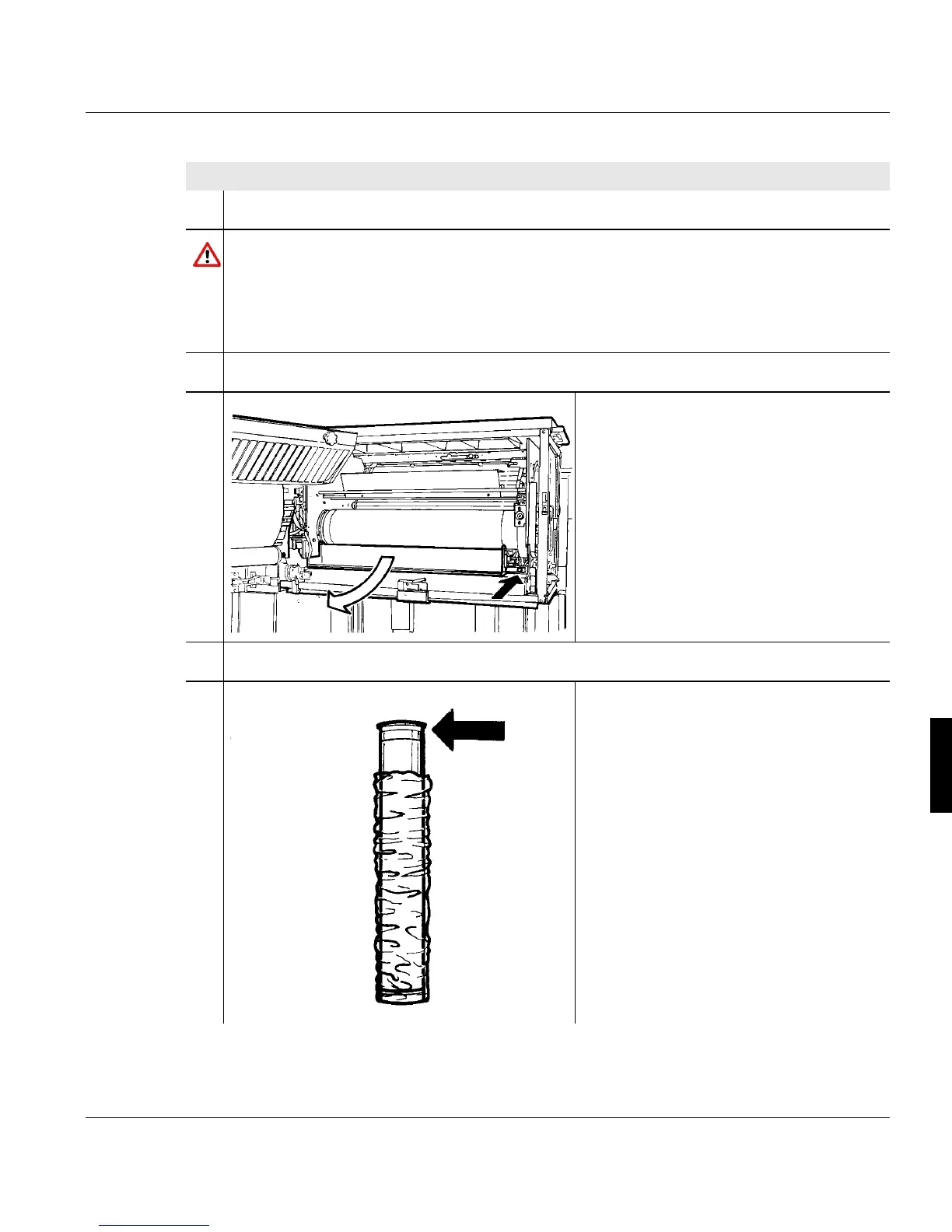

7.3.8 Replacing the fuser roller
A29246-X20-X-4-7680 / fa703.fm 313
5. Remove heater (see section Remove heater, page 302).
Caution
The components in the fuser station reach a surface temperature of approximately
230
o
C in operation.
If you touch them, you may burn yourself.
Put on heat protection gloves to continue working.
6. Put on heat protection gloves.
7. Press against the pressure pin and
swivel the waste collector outwards.
8. Open the packaging of the new fuser roller at the end.
9. Remove the new fuser roller with the
plastic cover and place vertically on a
surface (the notch around the end
must be on top).
Proceed as follows:
2 of 4
