7.3.8 Replacing the fuser roller
318 A29246-X20-X-4-7680 / fa703.fm

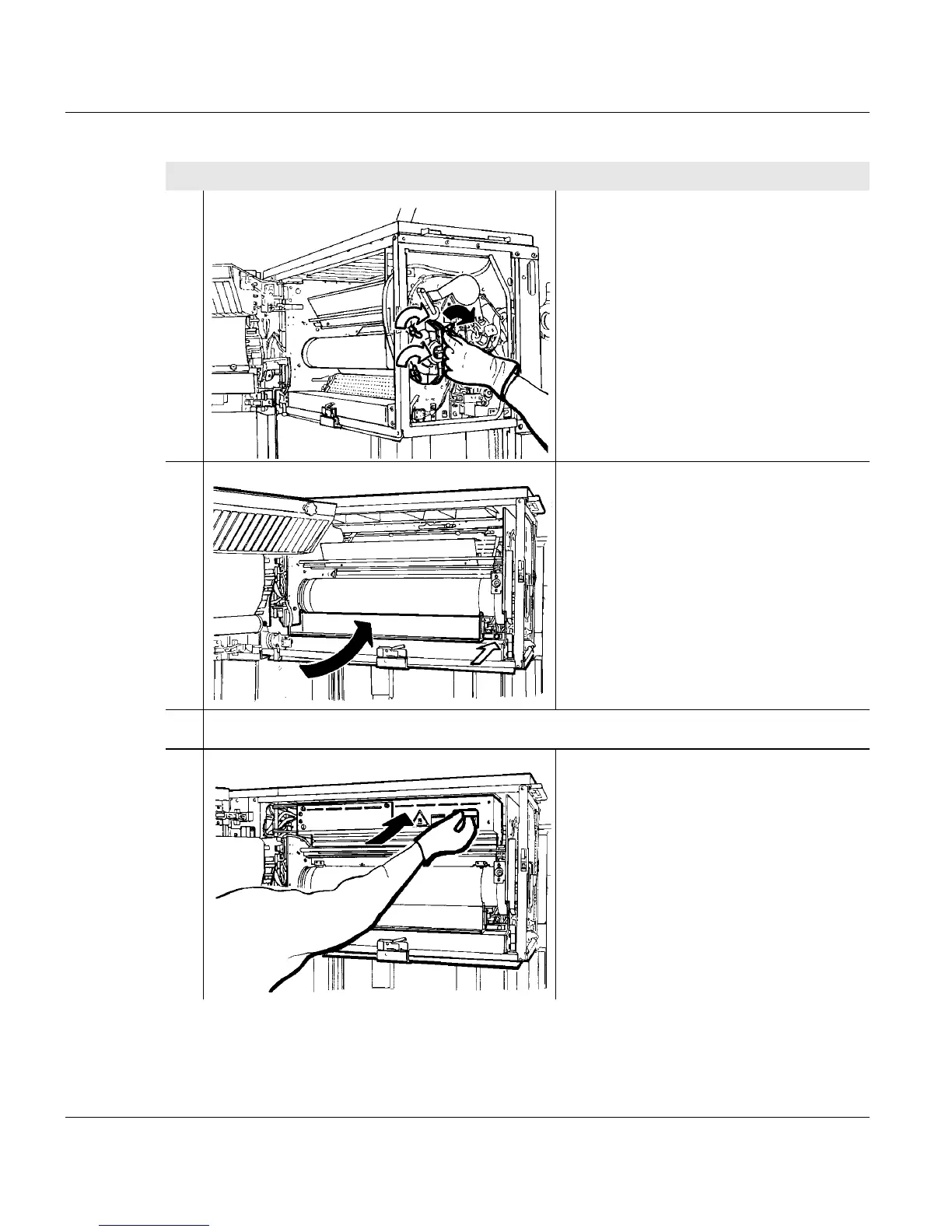

4. Tighten the three wing screws for
attach the fuser roller insert one after
the other step by step. Only use a max.
of three turns for each screw.
Proceed from one wing screw to the
next until the flange of the fuser roller
insert is secure against the side plate.
5. Swivel on the waste collector and lock
with the pressure pin.
6. Installing the heater (see section Install heater, page 307).
7. Swivel on active filter unit by the
handle to the stop point.
Proceed as follows:
3 of 4
