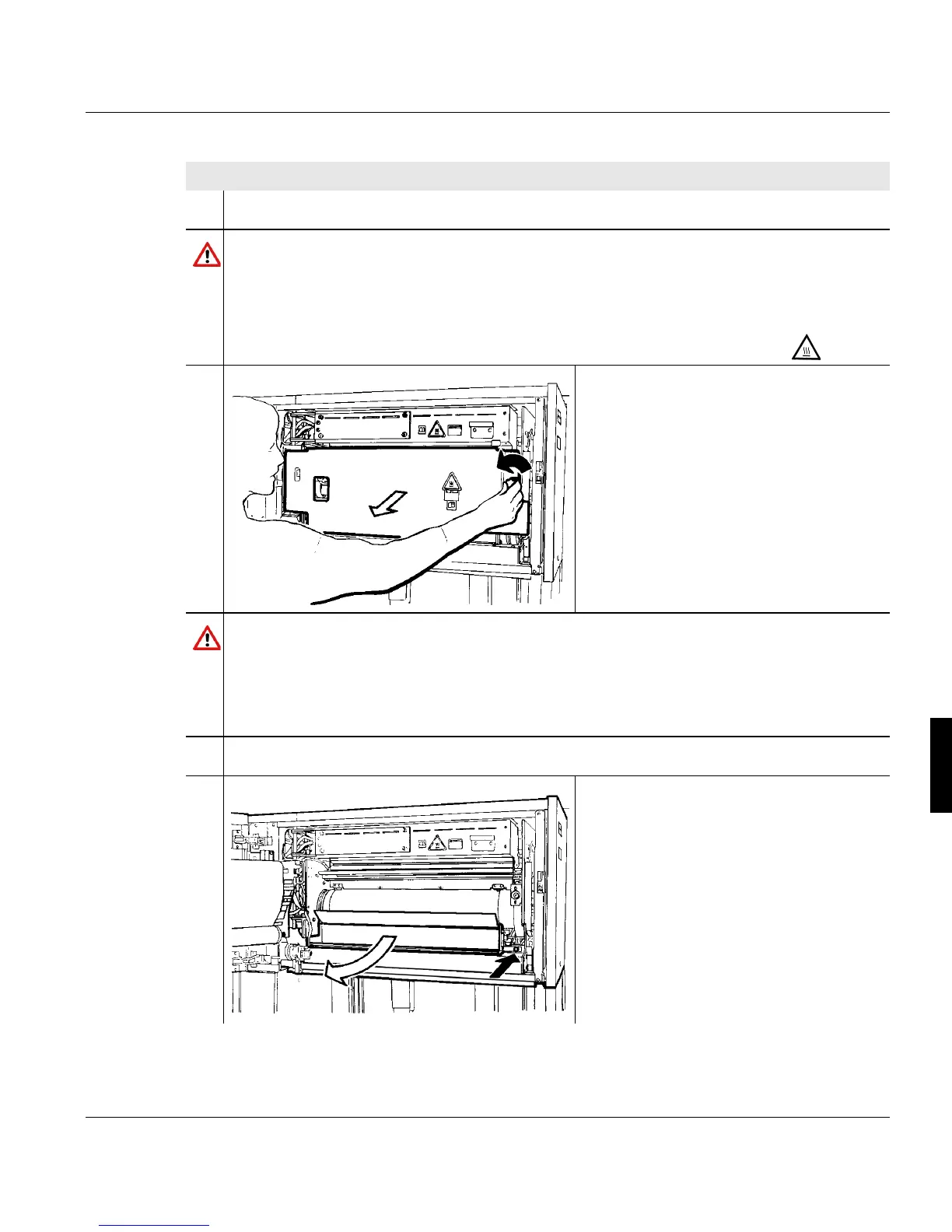

7.3.9 Replacing the pressure roller
A29246-X20-X-4-7680 / fa703.fm 321
6. Open side door of fuser station.
Caution
The components in the fuser station reach a surface temperature of approximately
230
o
C in operation.
If you touch them, you may burn yourself.
Do not touch any parts behind the safety covers identified with the icon .
7. Turn the knob of the oiling unit to the
left and swivel on oiling unit.
Caution
The components in the fuser station reach a surface temperature of approximately
230
o
C in operation.
If you touch them, you may burn yourself.
Put on heat protection gloves to continue working.
8. Put on heat protection gloves.
9. Press against the pressure pin and
swivel the waste collector outwards.
Proceed as follows:
