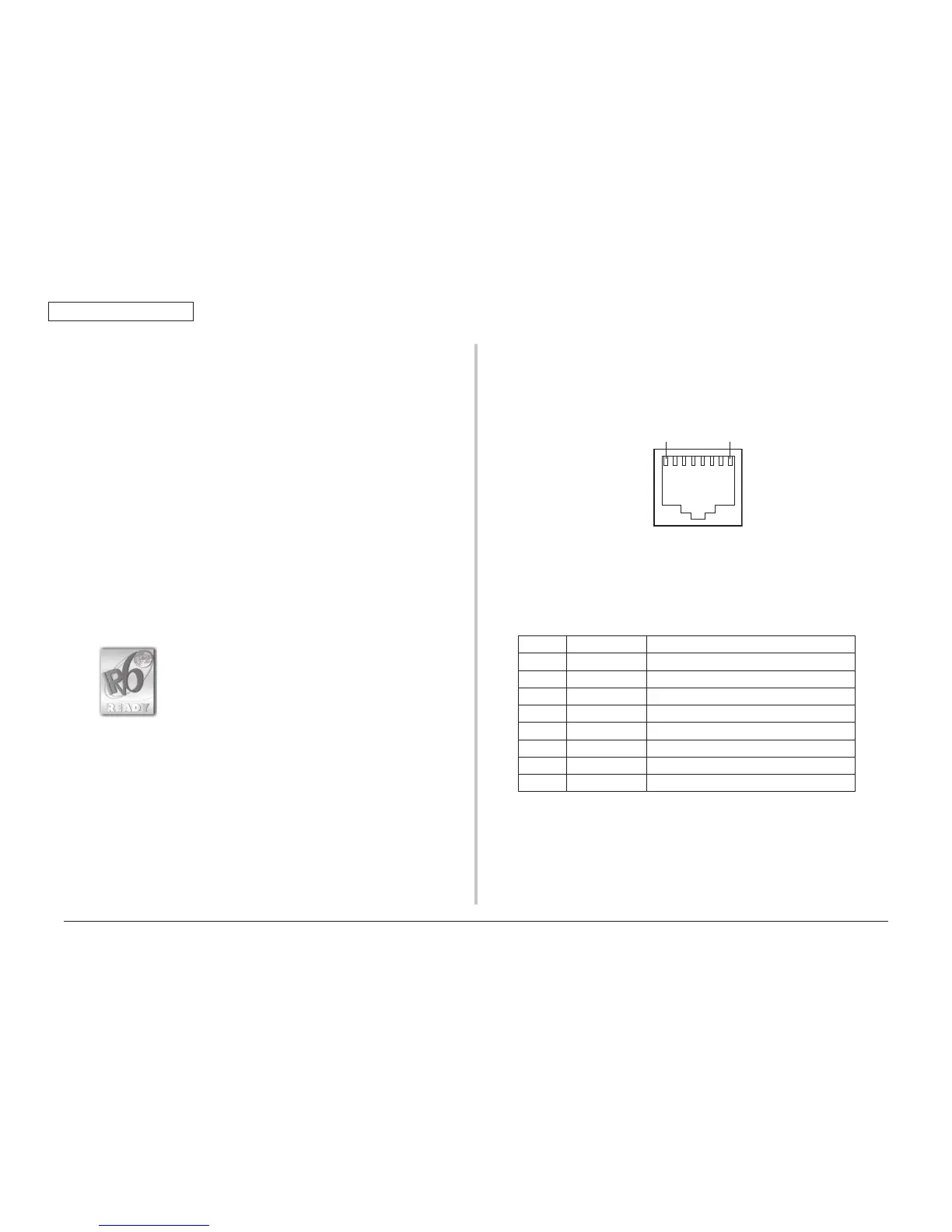

Page #15 background imageLoading...
Page #15 background image
45530603TH Rev.2
1-10
Oki Data CONFIDENTIAL
1. CONFIGURATION
1.5.2 Network interface specifications
1.5.2.1 Network interface overview
Basic specifications
Notwork protocol
TCP/IP: Network layer
ARP, IP, ICMP, IPv6, IPSec
Tr a ns p or t l aye r
TCP, UDP
Application layer
LPR, Port9100, FTP, HTTP, HTTPS, IPP, SNMPv1/v3, TELNET,
DHCP/BOOTP, DNS, DDNS, WINS, UPnP, Bonjour, SNTP, SMTP,
Windows Rally (WSD Print, LLTD)
NBT: SMB, NetBIOS over TCP
Ether Talk: ELAP, AARP, DDP, AEP, NBP, ZIP, RTMP, ATP, PAP
IEEE802.1X: EAP-TLS, PEAP
* This apparatus installs Oki Data Network Stack Version 1.0
acquiring IPv6 Ready Logo Phase-2 (IPv6 Core Protocols).
1.5.2.2 Connector and cable of network interface
(1) Connector
1000BASE-T / 100 BASE-TX / 10 BASE-T (automatically switched, not usable
simultaneously)
Connector pins arrangement
18
(2) Cable
Non-shield twisted-pair cable with RJ-45 connector (Category 5e equivalent or
more recommended)
1.5.2.3 Network interface signals
Pin No. Signal name Function
1 TRD+(0) Transmitting and receiving Data 0 (+)
2 TRD-(0) Transmitting and receiving Data 0 (-)
3 TRD+(1) Transmitting and receiving Data 1 (+)
4 TRD+(2) Transmitting and receiving Data 2 (+)
5 TRD-(2) Transmitting and receiving Data 2 (-)
6 TRD-(1) Transmitting and receiving Data 1 (-)
7 TRD+(3) Transmitting and receiving Data 3 (+)
8 TRD-(3) Transmitting and receiving Data 3 (-)
