45530603TH Rev.2
6-24
Oki Data CONFIDENTIAL
6. REPLACEMENT OF PARTS

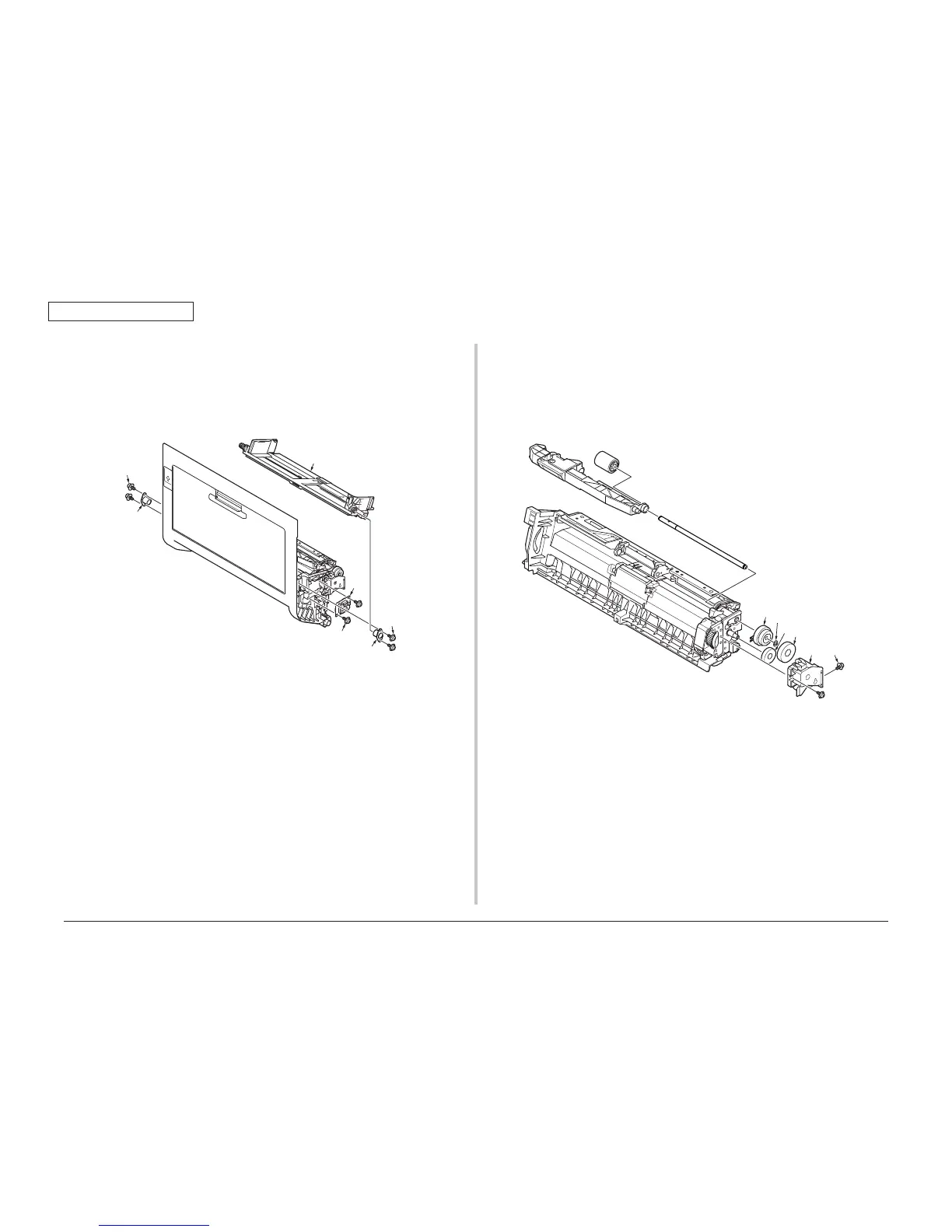

6.2.30 Clutch(Feeder-Assy)
(1) Remove the MPT-Unit.(Refer to section 6.2.28)
(2) Remove the two screws(silver)(6mm)
and remove the Holder-Gear-OW
.
(3) Remove the two gear
,
.
(4) Remove the E-type ring
and remove the Clutch
.
×2
6.2.29 Hopper-Assy/Board-F1S(MPT relay PCB)
(1) Remove the MPT-Unit.(Refer to section 6.2.28)
(2) Remove the four screws(black)(8mm)
and remove the two Boss-Hopper
.
(3) Remove the Hopper-Assy
.
(4) Remove the two screws(black)(8mm)
and remove the Boad-F1S
.
Adjustment of Paper Width Sensor
This function is used to adjust the detection value of the MPT paper width sensor and
display the implementation results (adjustment value). For adjustment, the media width
should be a determined width.
The width of the following (a) and (b) is detected and the sensitivity adjustment is performed.
(a) Specified-width paper
(b) Status where the MPT paper guide is set to the narrowest position.
Media to be used:Thick paper of A4-LEF-width or 10 sheets of excellent white paper
The adjustment method is refer to section 5.3.2.10.
Note!
If remove the Hopper-Assy, do the "Adjustment of Paper Width Sensor"
following procedure.
×2
×2
×2
