6. REPLACEMENT OF PARTS
6.3 Portions Lubricated
Portions lubricated are shown in this section. The other portions must not be lubricated.
Lubrication is not required during assembly or disassembly, except that the lubricant specified
must be applied to portions from which lubricant was wiped.
Lubrication work
(1) Lubricant names and their abbreviations
EM-30LP: MOLYKOTE EM-30LP
HP-300: MOLYKOTE HP-300
EM-D110: MOLYKOTE EM-D110
FL: FLOIL GE334C
HARVES: HARVES MDF-1207(Without special mention, immerse the parts in
HARVES and dry the parts)

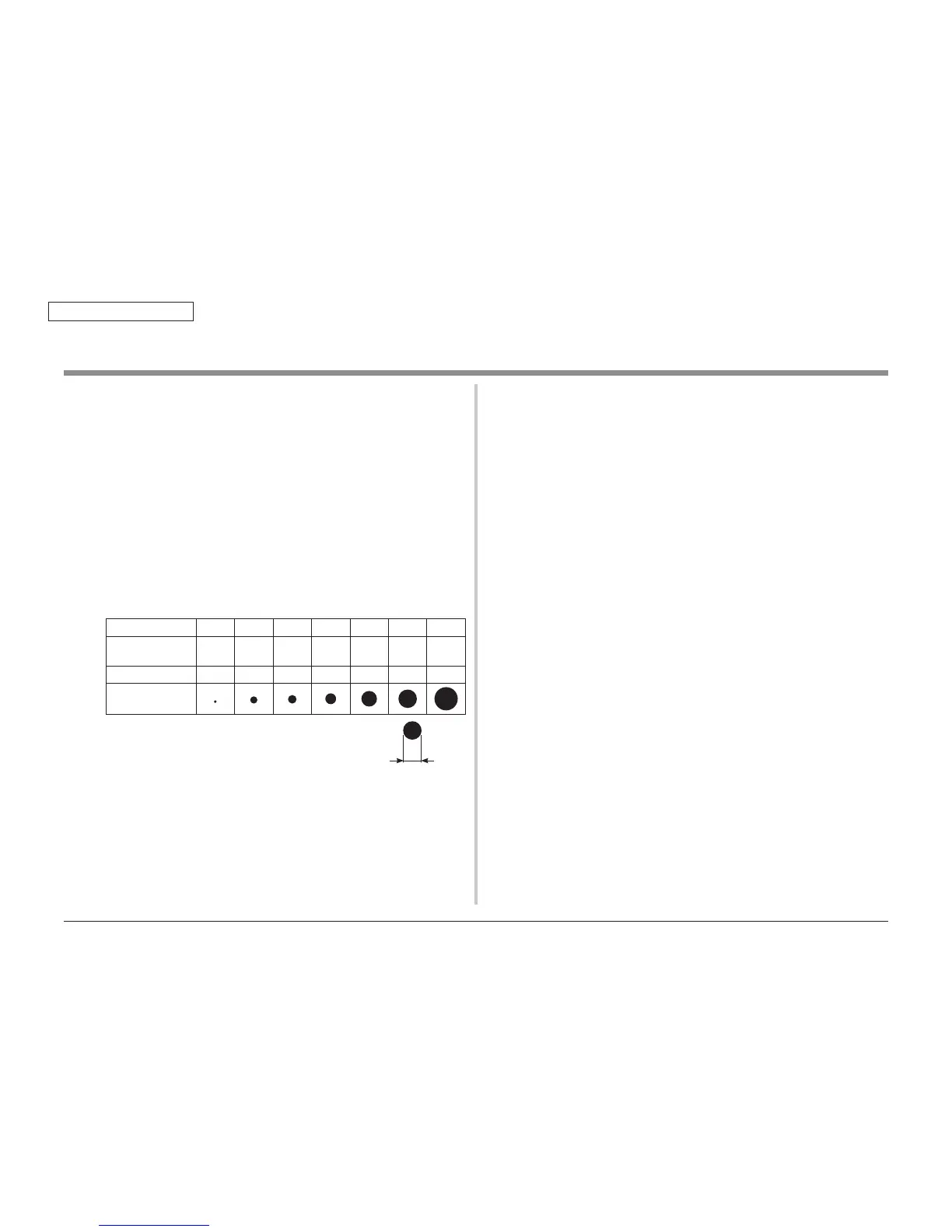

(2) Standard of amount of grease
Class S A B C D E F
Amount of grease
(cc)
0.0005 0.003 0.005 0.01 0.03 0.05 0.1
W(mm) 1.24 2.25 2.67 3.37 4.86 5.76 7.26
Sample
W
