Oki C911 - EJ-Rail-Unit

45530603TH Rev.2
6-28
Oki Data CONFIDENTIAL
6. REPLACEMENT OF PARTS

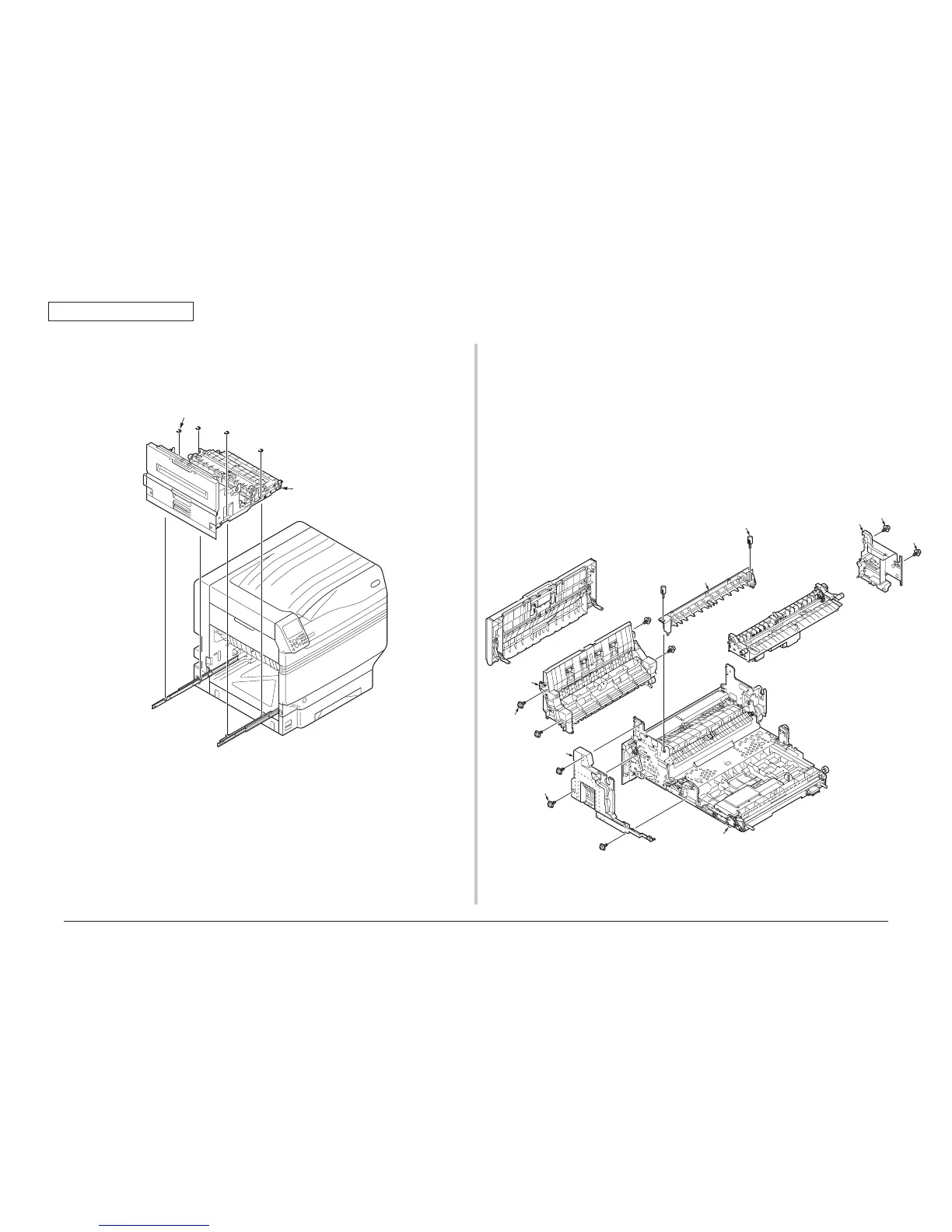

6.2.36 Guide-Assy-Eject-Lower-SP / Frame-Assy-TR2 /
Decurl-Assy
(1) Remove the EJ-Rail-Unit.(Refer to section 6.2.35)
(2) Remove the three screws(silver)(6mm)
①
and remove the Cover-LSD-F
②
.
(3) Remove the Round-head screw(black)(6mm)
③
and screw(silver)(6mm)
④
and
remove the Cover-LSD-R
⑤
.
(4) Remove the two screws
⑥
and remove the Decrul-Assy
⑦
.
(5) Remove the four cables and four screws(black)(8mm)
⑧
and remove the Guide-
Assy-Eject-Lower
⑨
.
6.2.35 EJ-Rail-Unit
(1) Pull out the EJ-Rail-Unit
①
.
(2) Remove the four E-type ring
②
and remove the EJ-Rail-Unit
①
.
②×4
①
①×3
⑧×4
②
⑨
⑥×2
⑦
⑤
④
③
LSD-Unit
