45530603TH Rev.2
6-16
Oki Data CONFIDENTIAL
6. REPLACEMENT OF PARTS

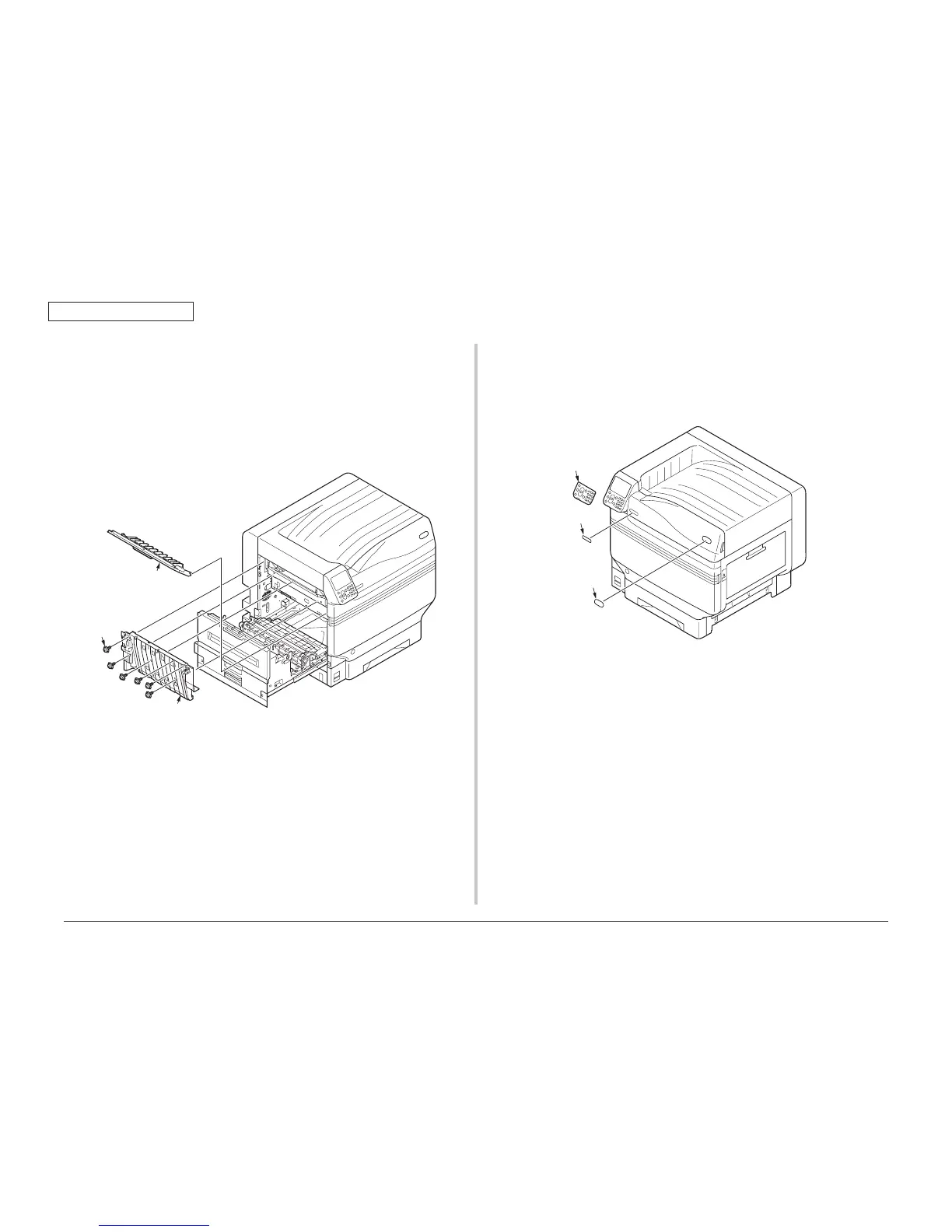

6.2.13 Guide-Assy-Eject-M
(1) Open and remove the Cover-Assy-Jam-Clear
.
(2) Remove the Cover-Rear.(Refer to section 6.2.11)
(3) Remove the Plate-Sheild-F1D.(Refer to section 6.2.20)
(4) Remove the Motor-FAN-Assy.(Refer to section 6.2.24)
(5) Remove the cable from F1D board.
(6) Remove the six screws (silver)(8mm)
and remove the Guide-Assy-Eject-M
.
6.2.14 Sheet-OP-Panel/Plate-Logo/Plate-Name
(1) Remove the Sheet-OP-Panel
.
(2) Remove the Plate-Name
.
(3) Remove the Plate-Logo
.
×6
