Oki C911 - Cover-Assy-Top-B

45530603TH Rev.2
6-17
Oki Data CONFIDENTIAL
6. REPLACEMENT OF PARTS

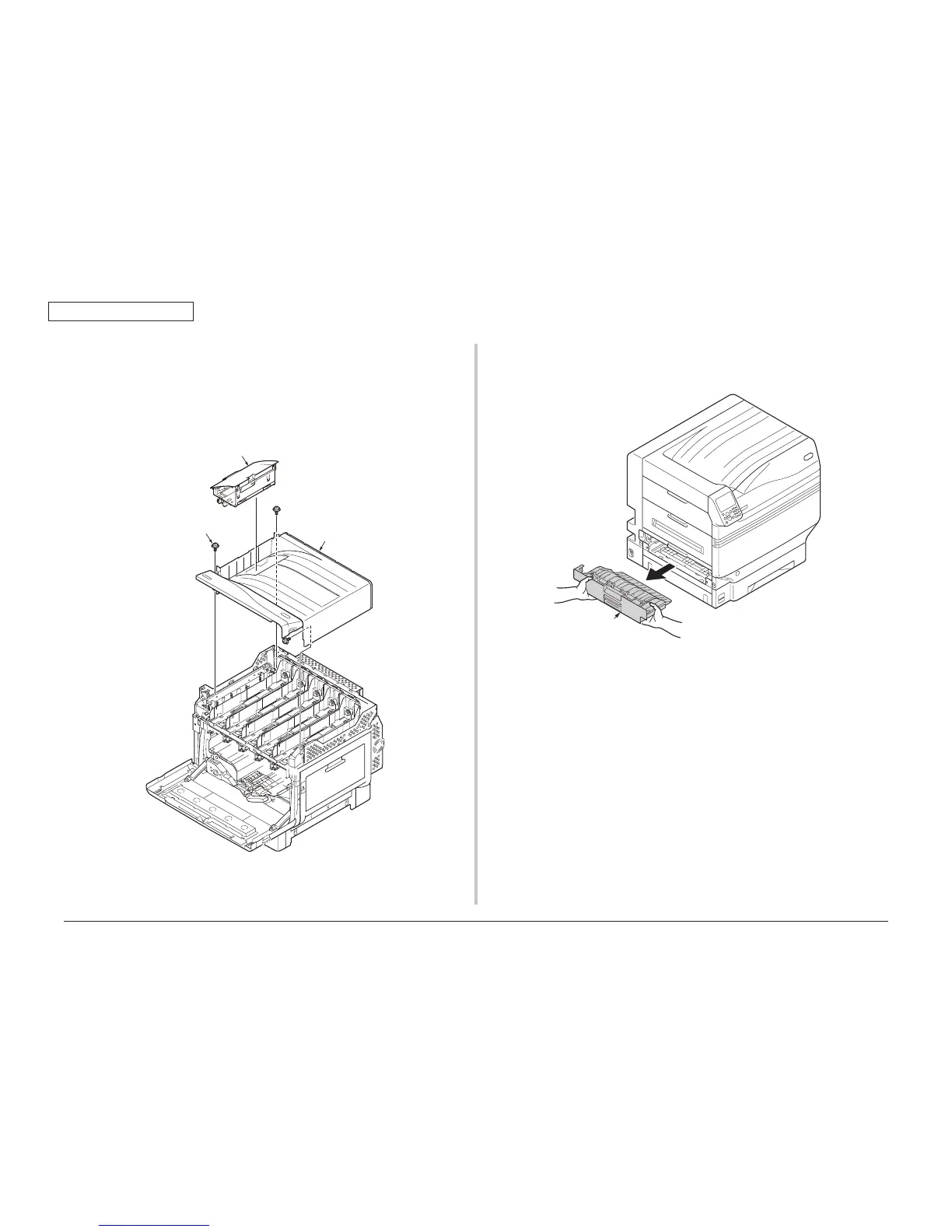

6.2.15 Cover-Assy-Top-B
(1) Remove the Toner cartridge and Image Drum. (Refer to section 6.2.1,6.2.2)
(2) Remove the Eject-Assy-Joboff. (Refer to section 6.2.12)
(3) Remove the spot color duct.(for 5-color model only)
(4) Remove the three screws(silver)(6mm)
①
and remove the Cover-Assy-Top-B
②
.
6.2.16 Duplex-Unit
(1) Pull out the Duplex-Unit
①
and lift upwards, and remove it.
②
①×3
Spot color duct
①
