Oki C911 Maintenance Manual

45530603TH Rev.2
6-29
Oki Data CONFIDENTIAL

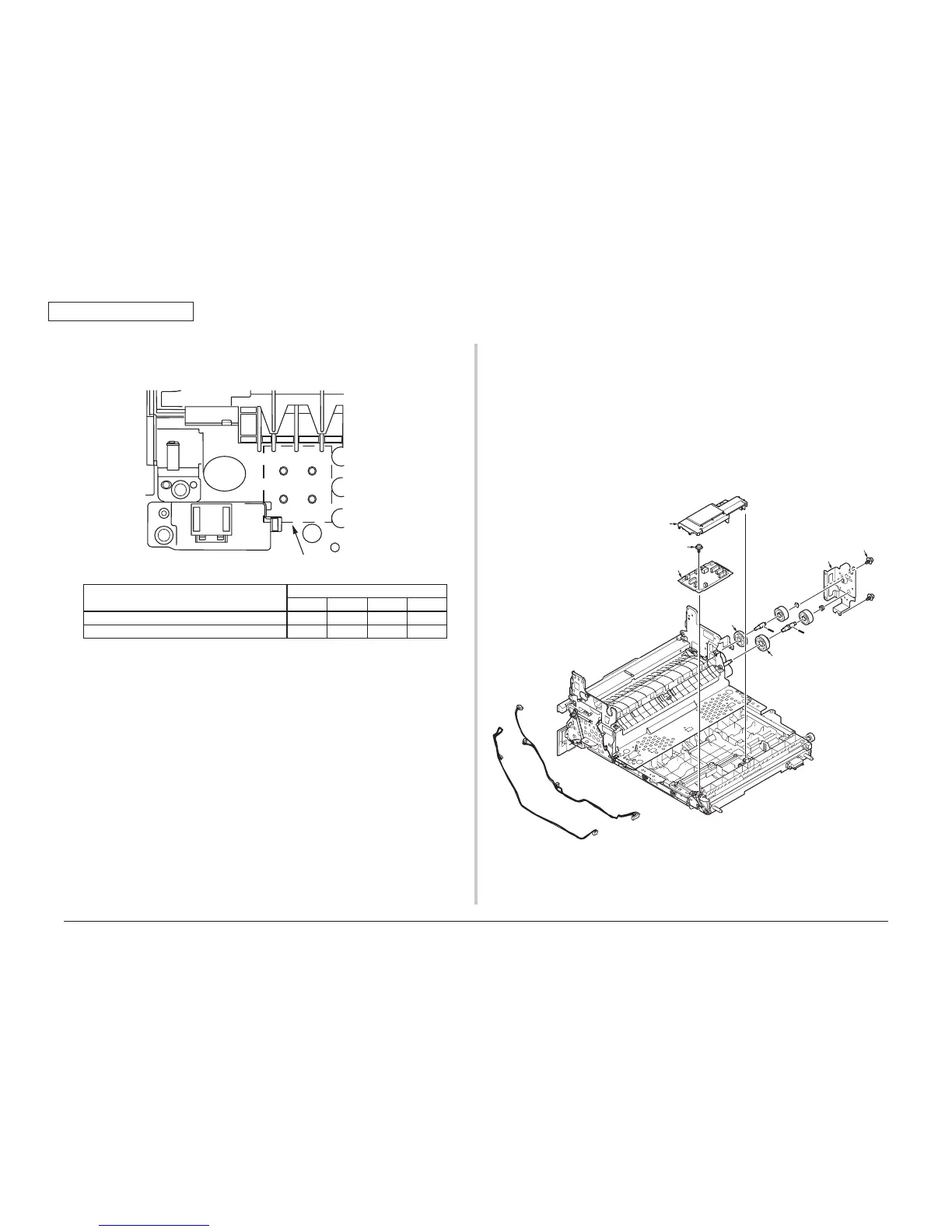

6. REPLACEMENT OF PARTS
6.2.37 Gear-Assy-Oneway-Z33/Gear-Assy-Oneway-
Z33-R/Board-F1L(Rail unit relay PCB)
(1) Remove the LSD-Unit.(Refer to section 6.2.36)
(2) Remove the Cover-PCB-LSD
①
.
(3) Disconnect all cables from the board and remove the screw(silver)(6mm)
②
and
remove the Board-F1L
③
.
(4) Remove the two screws(silver)(6mm)
④
and remove the Bracket-Gear-FU
⑤
and
remove Gear-Oneway-Z33
⑥
and Gear-Oneway-Z33-R
⑦
.
④×2
②
①
⑤
⑥
⑦
③
≪
Attention of assembling
≫
Attach the Lock out of Fuser, when assembling LSD-Unit.
Voltage Lock out convex location
1 2 3 4
100V/120V
○
× × ×
230V ×
○
× ×
1
2
4
3
Inserted location of 44905601 Post-Lock-Fuser
